Recommendations on antenna mounting
39
Remote antenna distances and line of sight
If you are using multiple antenna wall mounts (AWM 2/AWM 4) in one room
or if individual installation and mounting of the antennas is desired, please
observe the following aspects:
▷ Position all antennas as close as possible to each other.
▷ Make sure that the distances between all antennas are all equal and the
same as on the back of the receiver or on the AWM 2 antenna wall
mount.
▷ If possible, group the antennae as follows:
•All A antennae from the receivers’ ANT I sockets in one group accord-
ing to the aforementioned requirements
•All B antennae from the receivers’ ANT II sockets in one group ac-
cording to the aforementioned requirements
►

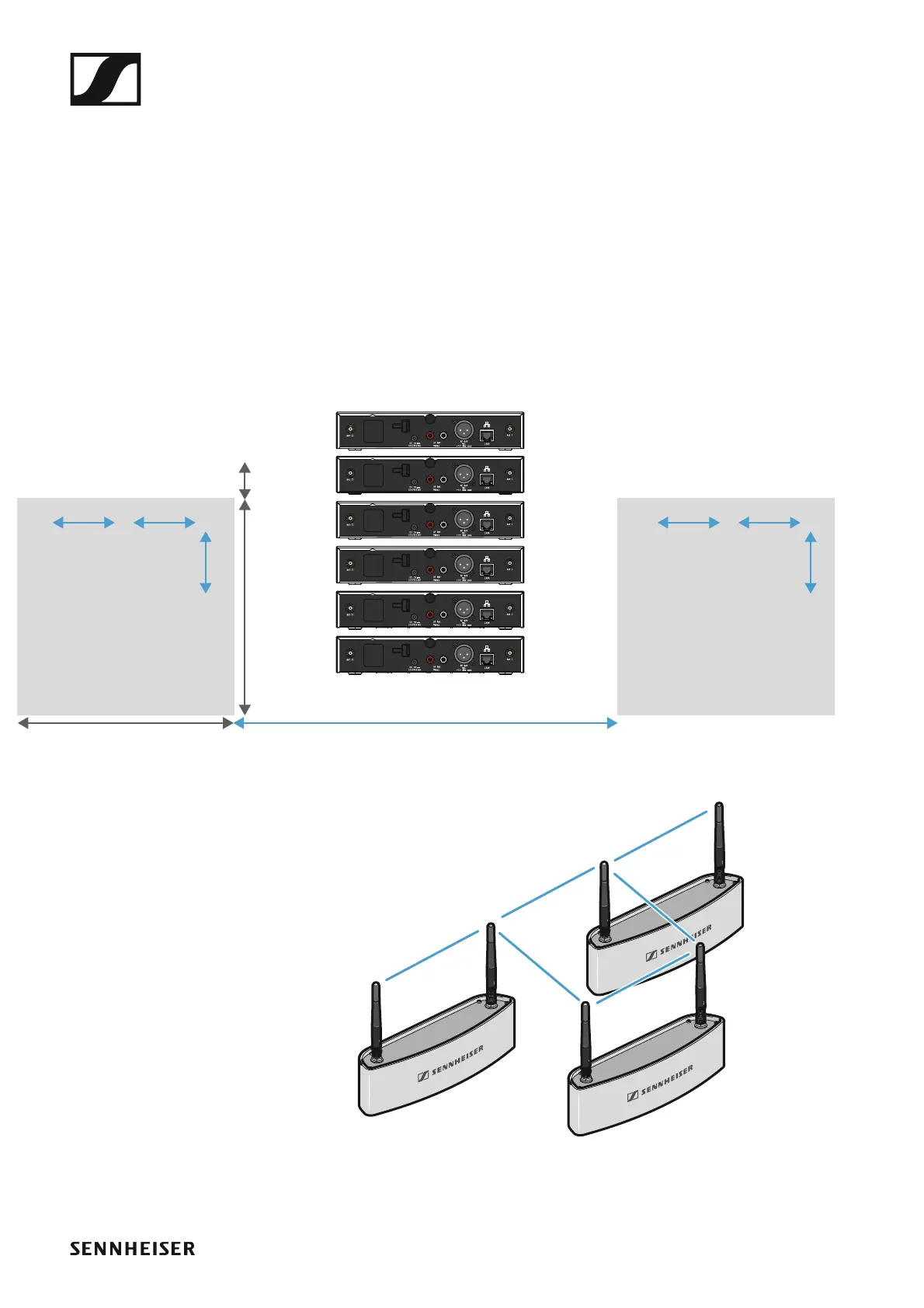

▷ When using multiple AWM 2/AWM 4 antenna wall mounts, make sure
that the distances between all antennas are equal:
►
Ant II Ant I
B
B
B
B
B
B
A
A
A
A
A
A
All antennas B from Ant II sockets
of all SL Rack Receiver DW units
All antennas A from Ant I sockets
of all SL Rack Receiver DW units
BBB
BBB
AAA
AAA
min. 17 cm (7")
minimum 7.5 cm (3")
recommended 17 cm (7")
≤ 1 m (39")
Distance to reflecting surface / obstacle:
min. 7.5 cm (3"), recommended 17 cm (7")
≤ 1 m (39")
