The CHG 2 charger

153

Connecting the CHG 2 charger to the power supply

system

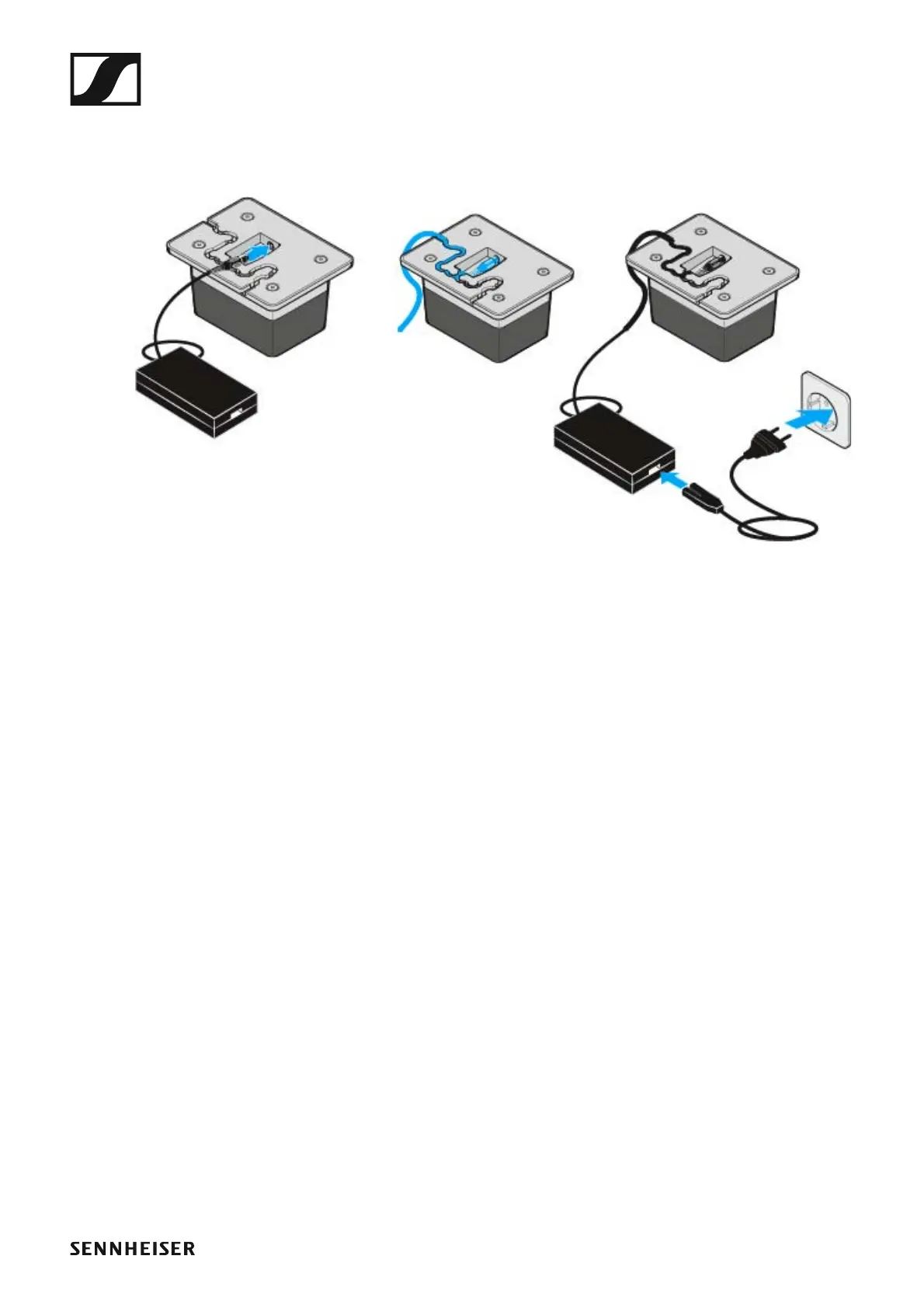

To connect the CHG 2 charger to the power supply system:

►

▷ Connect the cable end of the power supply unit to the socket at the

base of the charger.

▷ Guide the cable through one of the cable guides at the base of the char-

ger so that the charger is stable once in position.

▷ Connect one end of the power cord to the power supply unit and the

other end to the wall socket.
