SL Rack Receiver DW

GA 4 mounting kit

You need the GA 4 mounting kit to install two receivers in a rack. The GA 4

mounting kit is available separately as an accessory and is also supplied

with the following sets:

• SL Handheld-Set R

•SL Headmic-Set R

• SL Lavalier-Set R

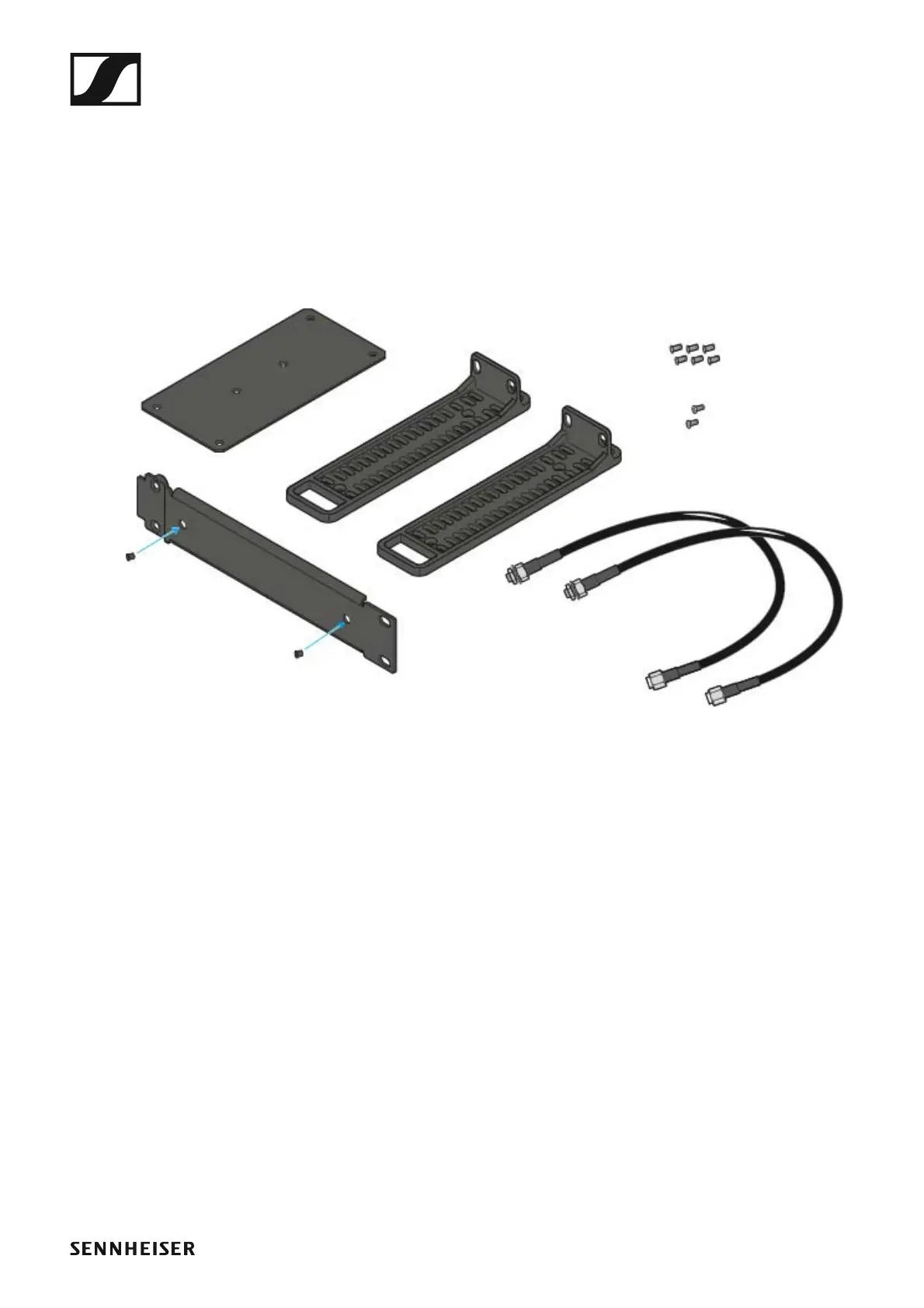

The GA 4 mounting kit consists of:

►
