The SL Headmic 1 headset microphone

131

Using the windshield

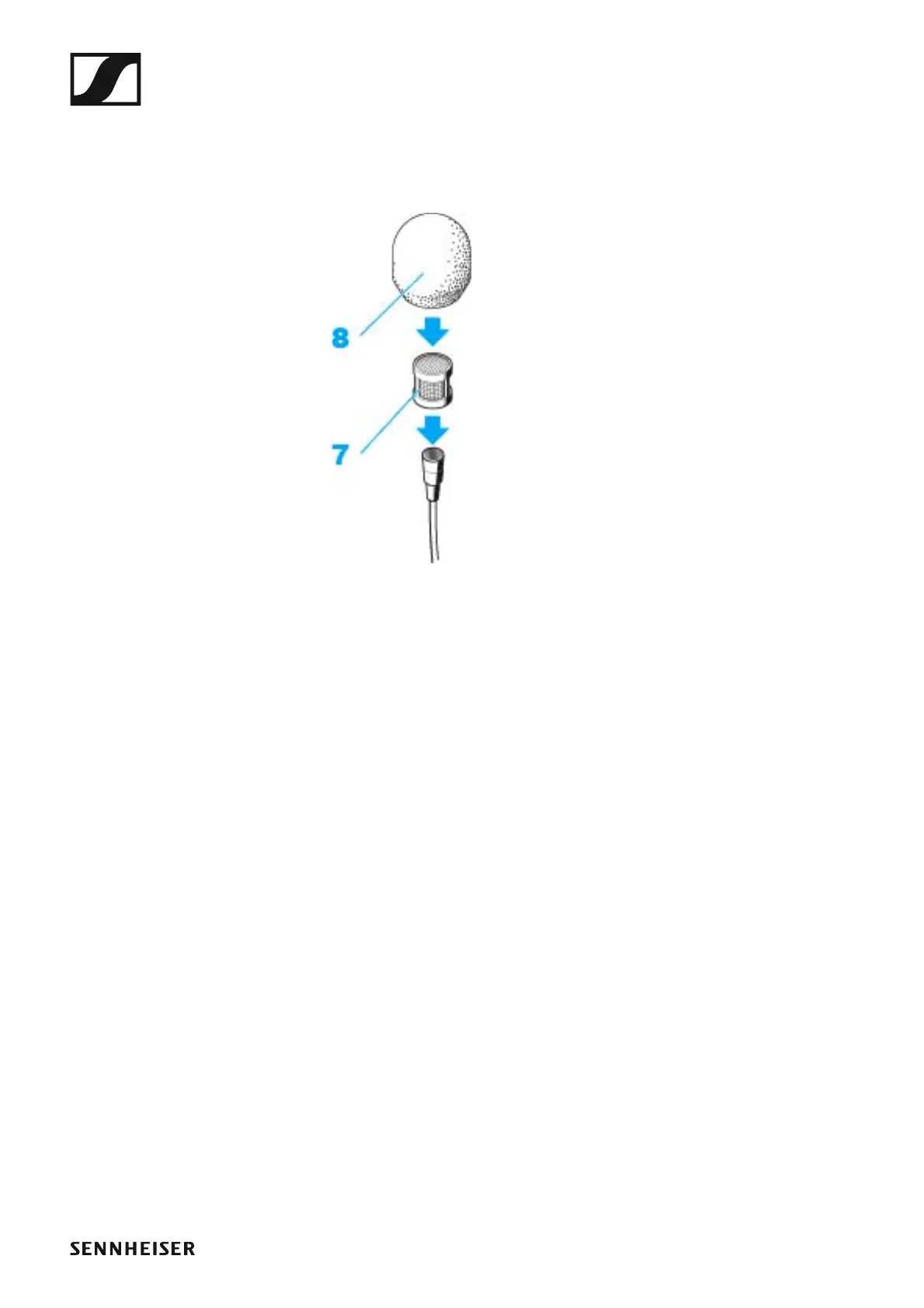

The SL MZW 1 windshield 8 attenuates annoying wind noise by 10 dB.

▷ Slip the SL MZW 1 windshield 8 onto the MZC 2 frequency response

cap 7.

►
