The Products of the SpeechLine Digital Wireless Series

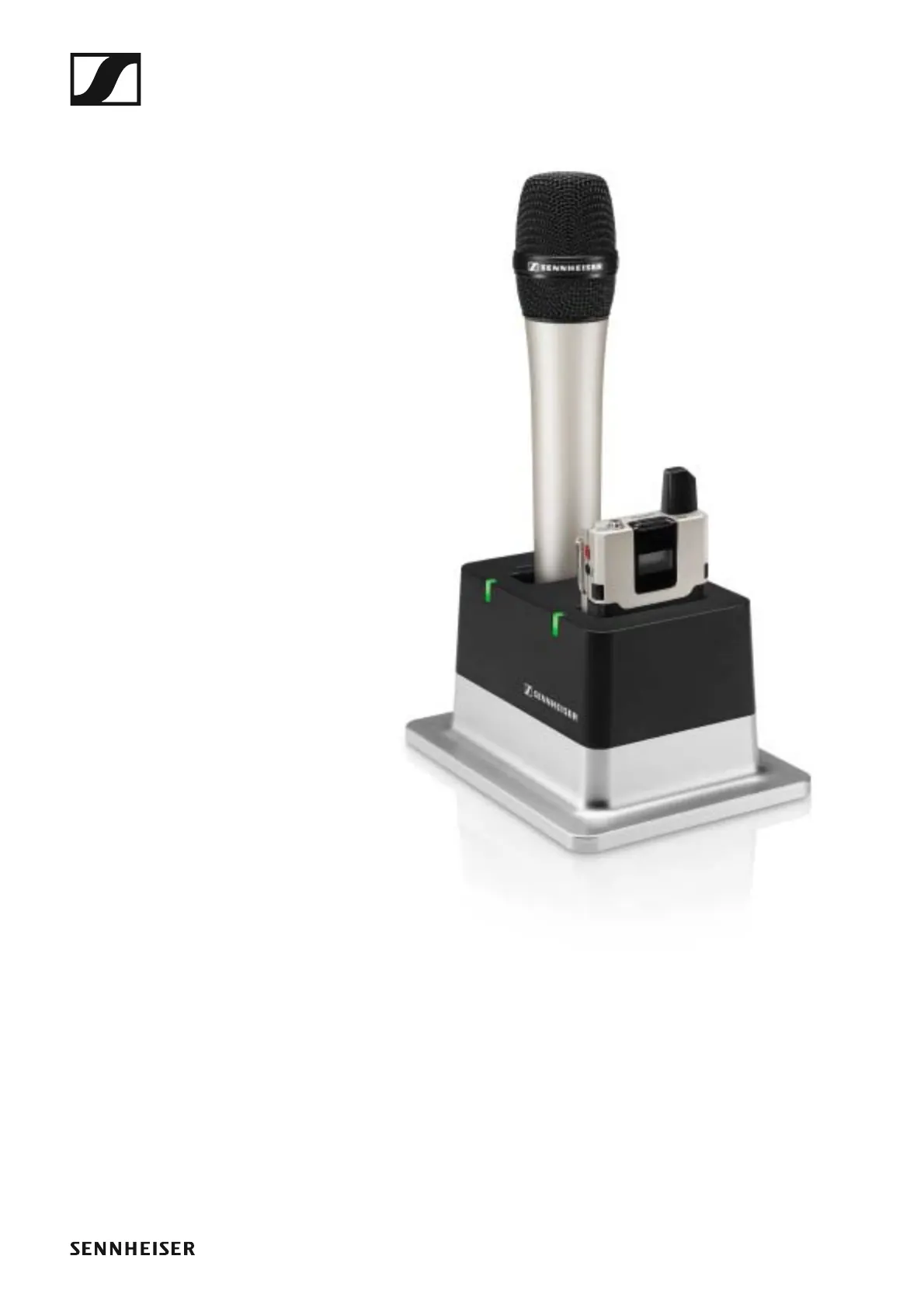

The CHG 2 charger

►

The CHG 2 charger allows you to simultaneously charge up to two trans-

mitters of the SpeechLine Digital Wireless series. A bi-color LED at each

charging slot provides information on the current charge status. The char-

ger has universal charging slots for charging both handheld and bodypack

transmitters.
