The AWM 4 antenna wall mount

179

Mounting the AWM 4 on a stand or on the wall

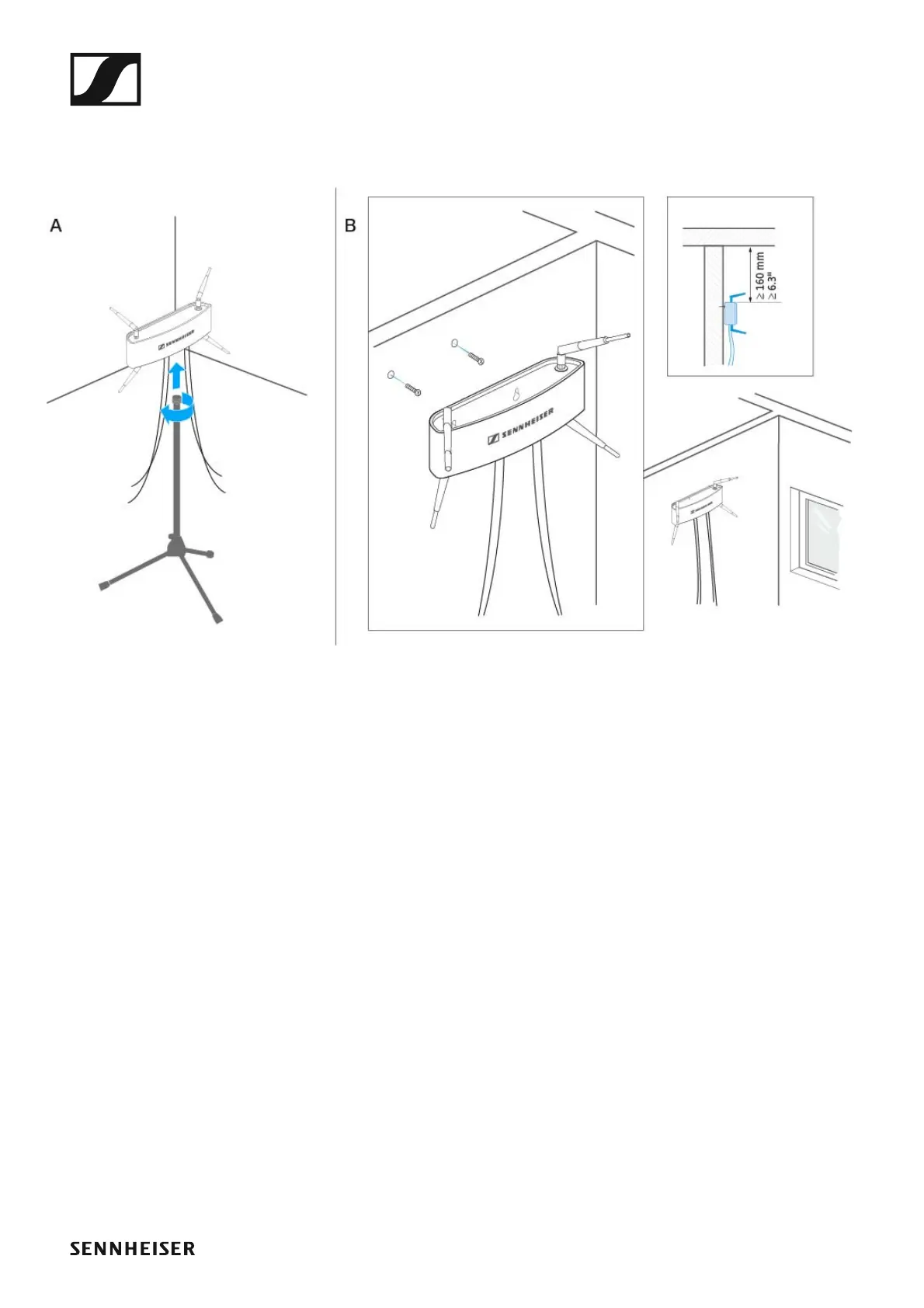

You can either screw the AWM 4 onto a standard microphone stand or use

the existing holes in the housing to mount it on the wall as shown.

►
