The SL DI 4 XLR Dante™ interface
139

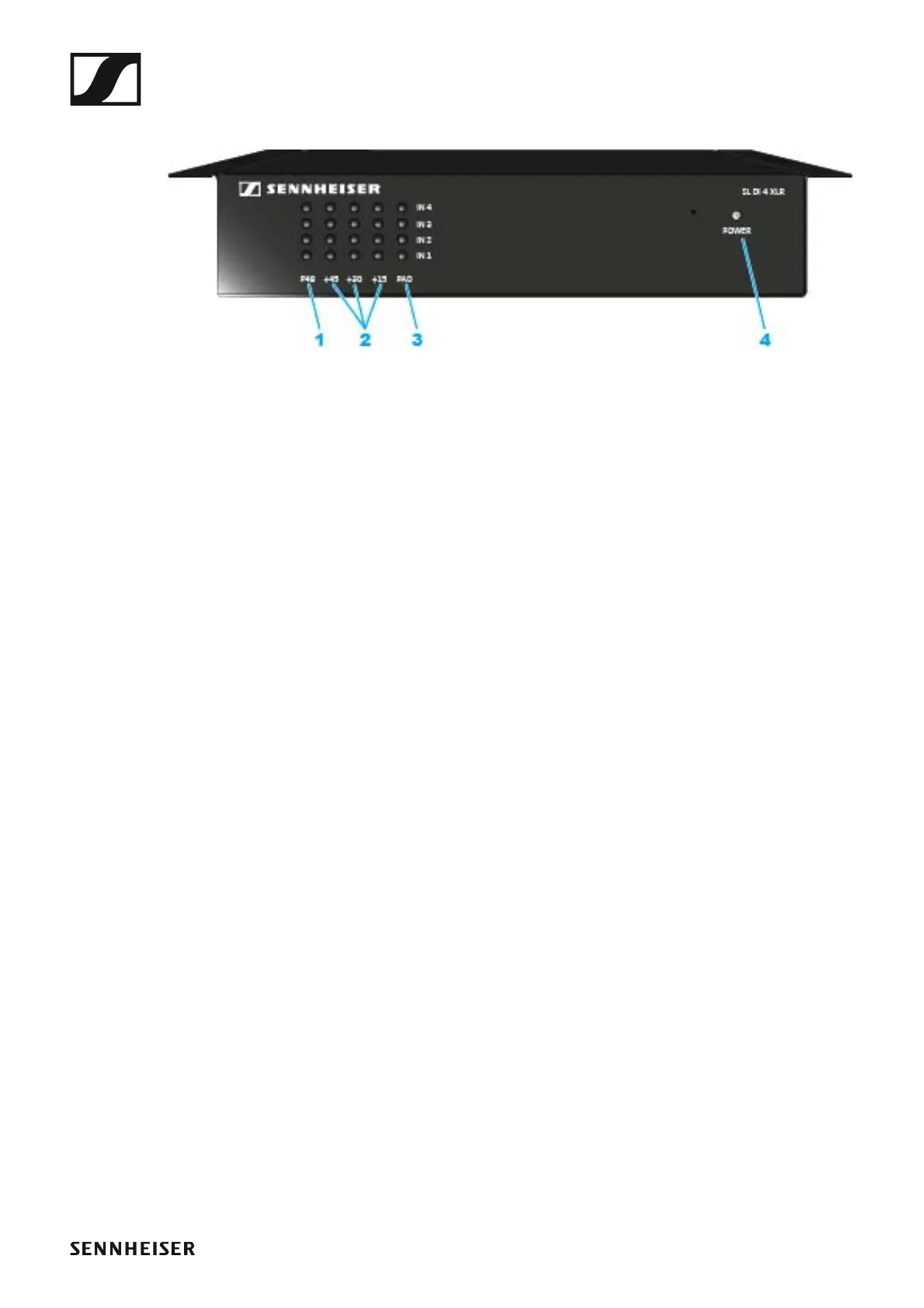

Product overview and LED indicators – front panel
►
1 P48 LEDs
• indicate, for each individual XLR input (IN 1, IN 2, IN 3, IN 4), whether
the phantom power is activated
2 +45, +30, +15 LEDs
• indicate the gain settings for each XLR input
3 PAD LEDs
• indicate, for each individual XLR input, whether the -12 dB pad func-
tion is activated
4 POWER LED
• lights up when the power supply is active
