The AWM 4 antenna wall mount

176

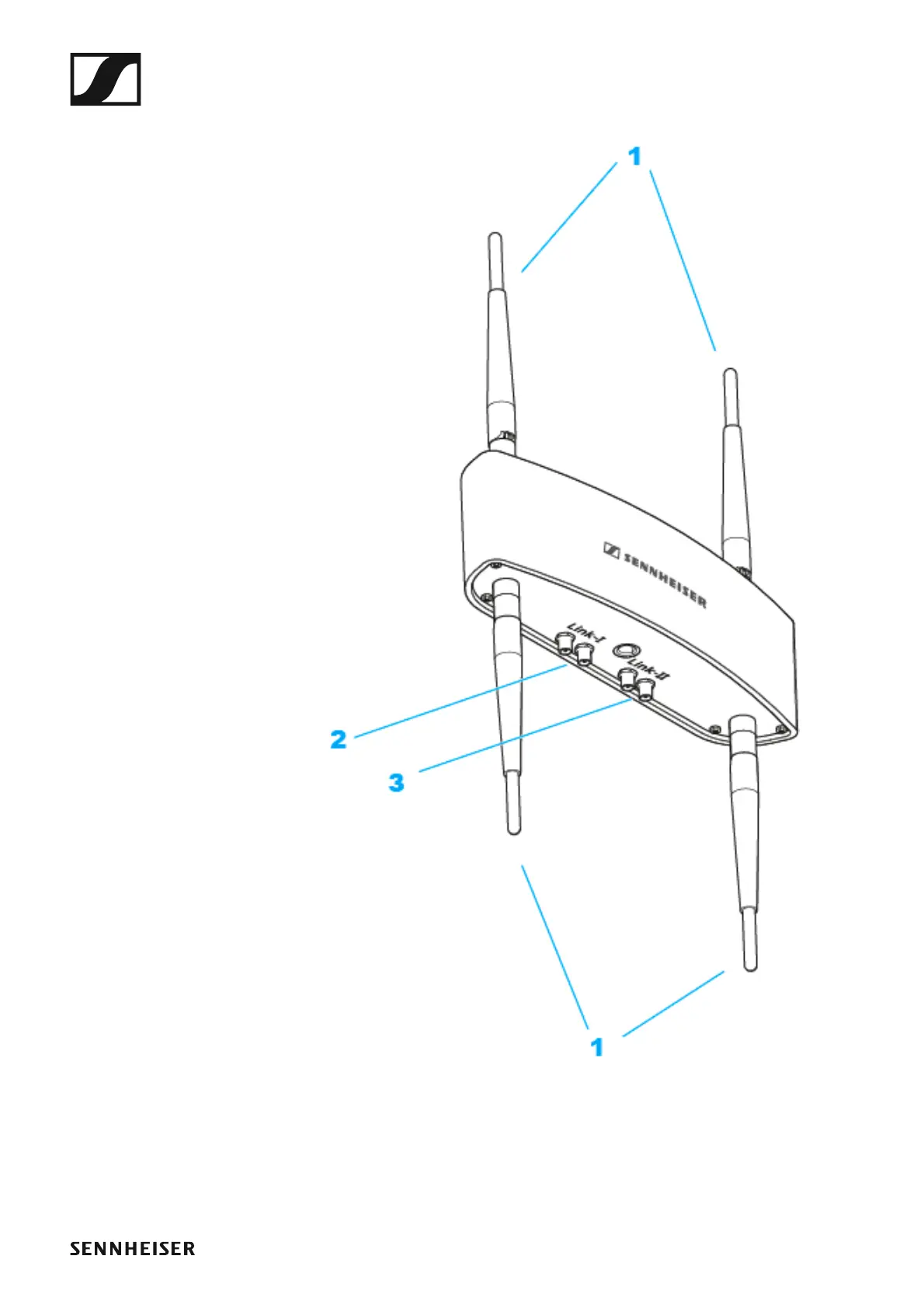

Product overview

►

1 Antennas

2 Connections for Link I (receiver 1)

3 Connections for Link II (receiver 2)
