The SL DI 4 XLR Dante™ interface

140

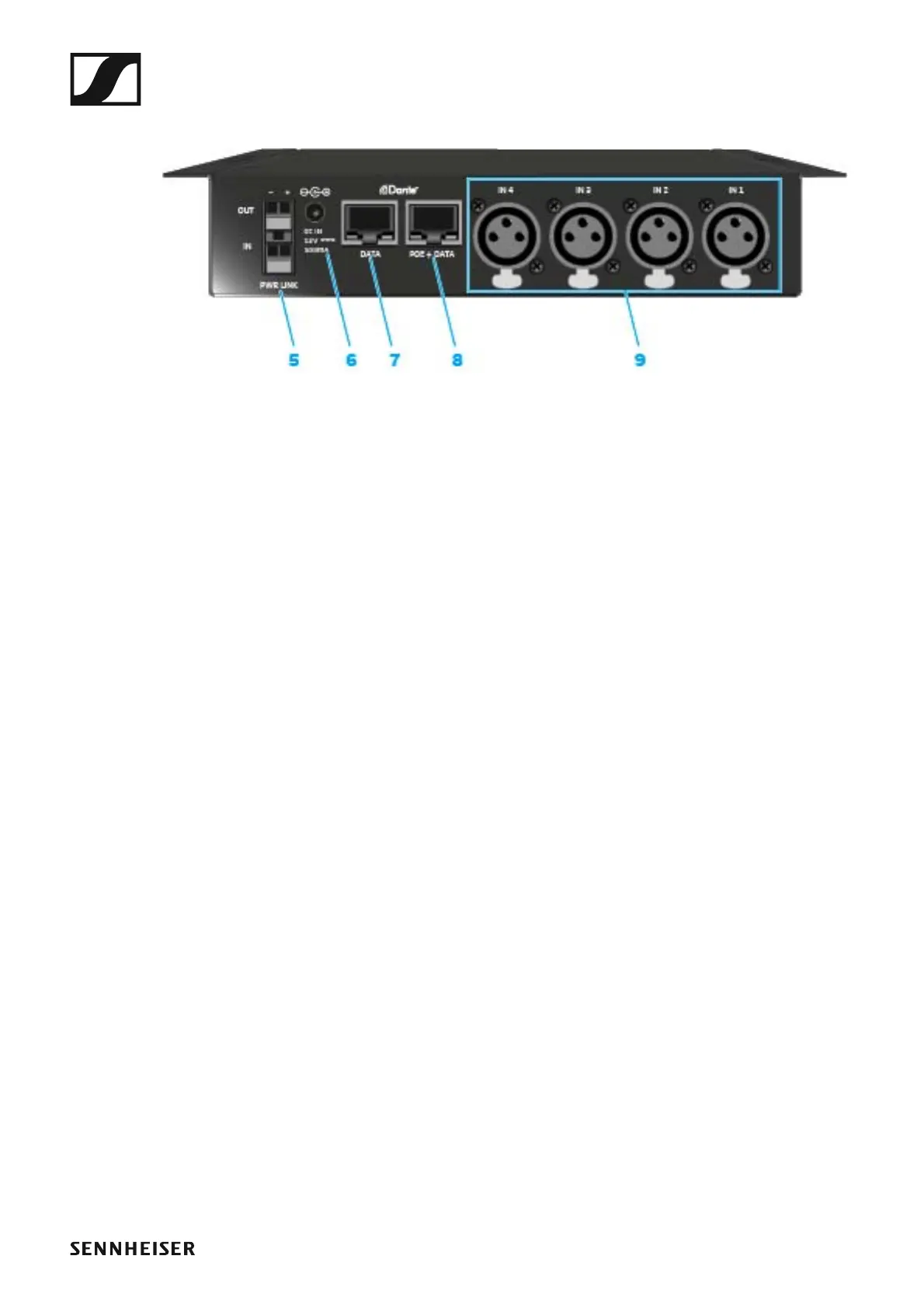

Product overview and connections – rear panel

►

5 PWR LINK input and output

• Terminals for daisy-chaining the power supply to other devices

6 DC INsocket

• input socket for an optional power supply unit (Sennheiser NT 12-

50CS)

7 DATA socket

• Dante™ Ethernet socket

8 POE + DATA socket

• Dante™ Ethernet socket with PoE function

9 analog XLR inputs (IN 1, IN 2, IN 3, IN 4)

• analog audio inputs
