Mounting the rod antennae to the front of the rack

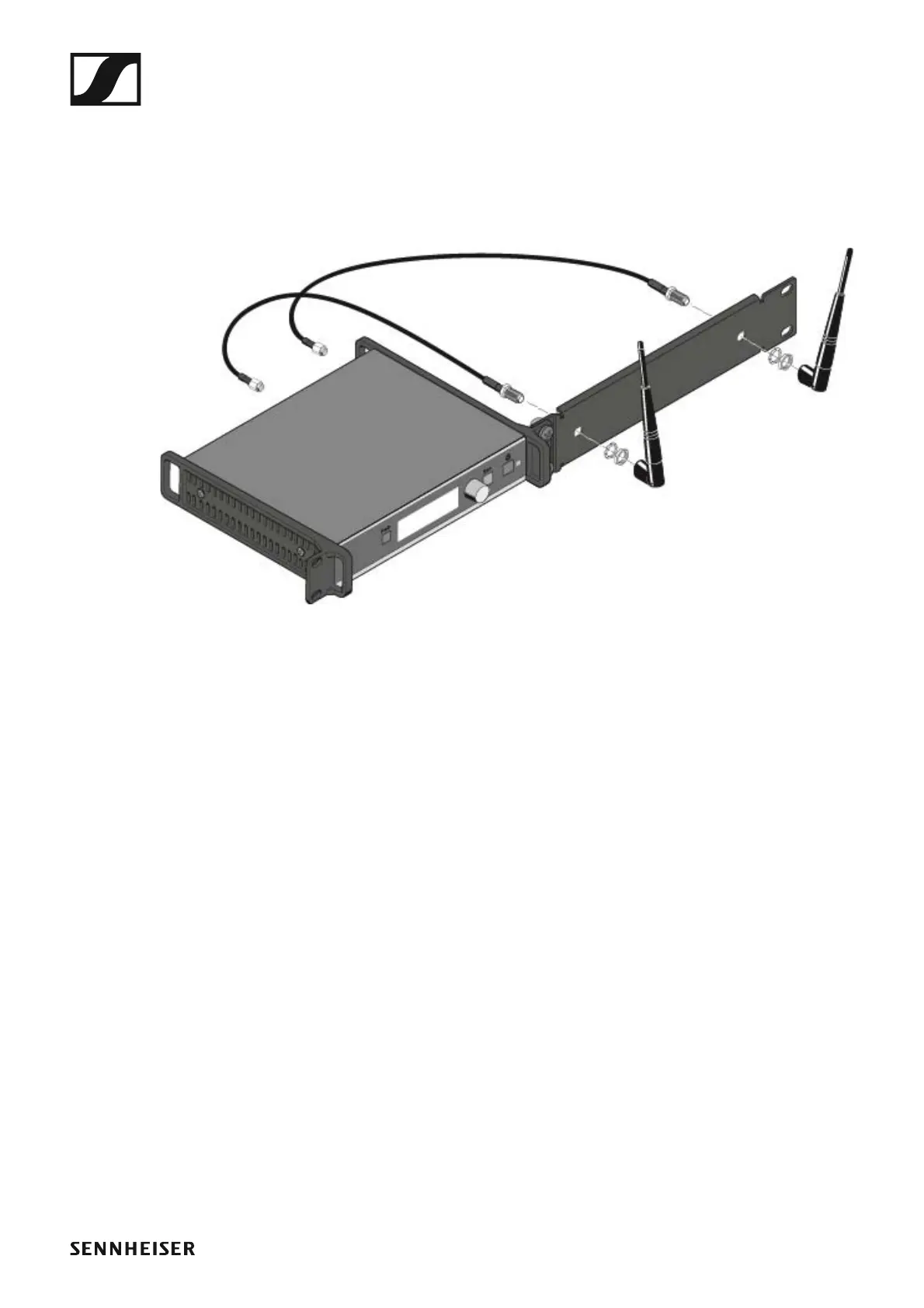

To mount the rod antennae to the front of the rack:

▷ Connect the included antenna cables to the antenna sockets at the rear

of the receiver.

▷ Pass the other ends of the antenna cables through the antenna holes in

the blanking plate and screw them to the rod antennae as shown.

►

Connecting the AWM 2 / AWM 4 remote antenna to the receiver

Instead of the supplied rod antennae, you can also connect a remote anten-

na to the receiver. For more information, see „The AWM 2 antenna wall

mount” and „The AWM 4 antenna wall mount”.

▷ Pay attention to the notes about antenna installation under „Recom-

mendations on antenna mounting”.
