Recommendations on antenna mounting

Option 2: Combining multiple links to one AWM 2/

AWM 4

With this option, passive antenna combiners can be used together with the

AWM 2 or the AWM 4 in order to combine the antenna signals of several

receivers. This reduces the number of antenna cables required to a mini-

mum.

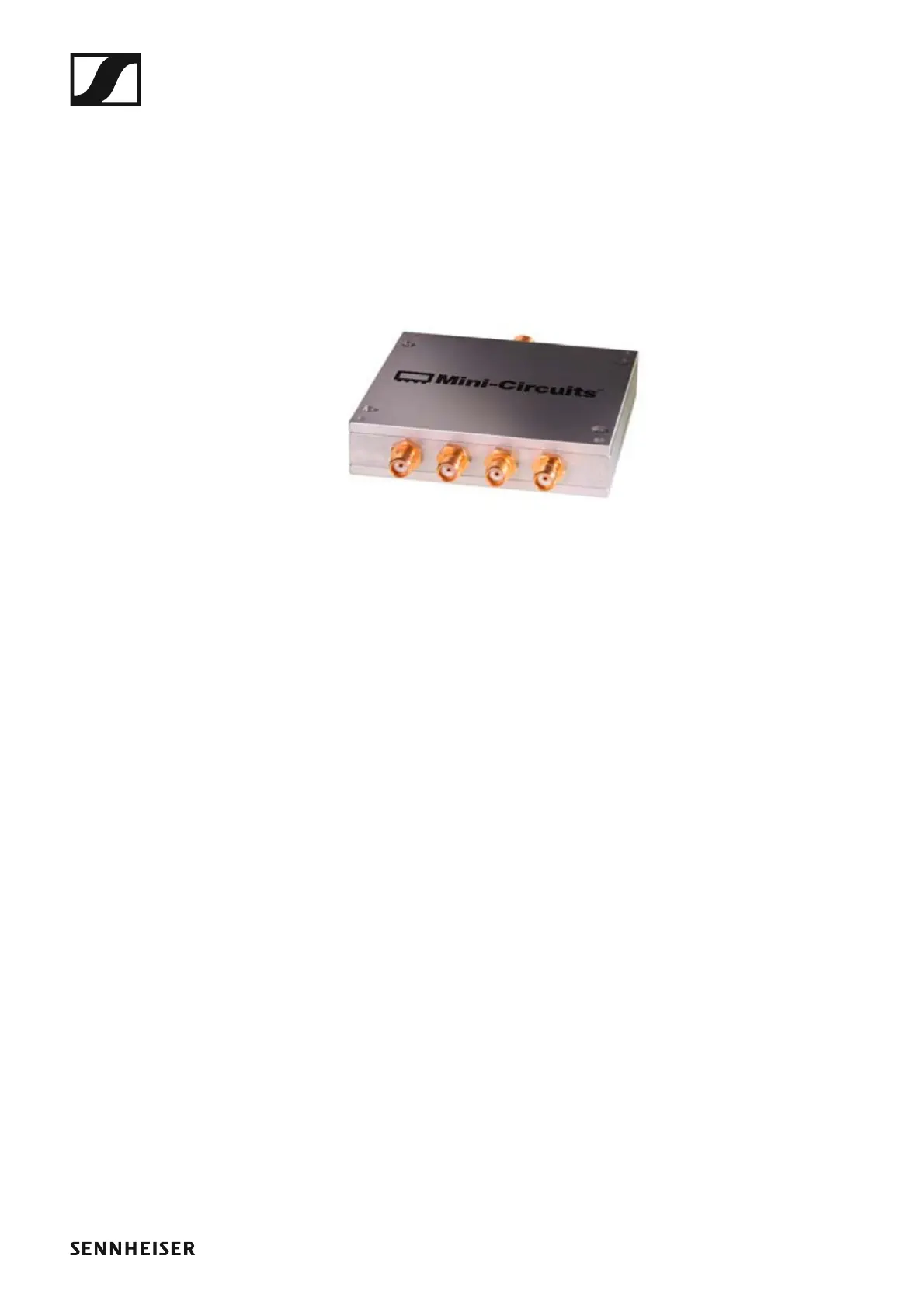

We recommend using the following passive antenna combiner:

Mini-Circuits ZN4PD-272-S+

►
