Recommendations on antenna mounting

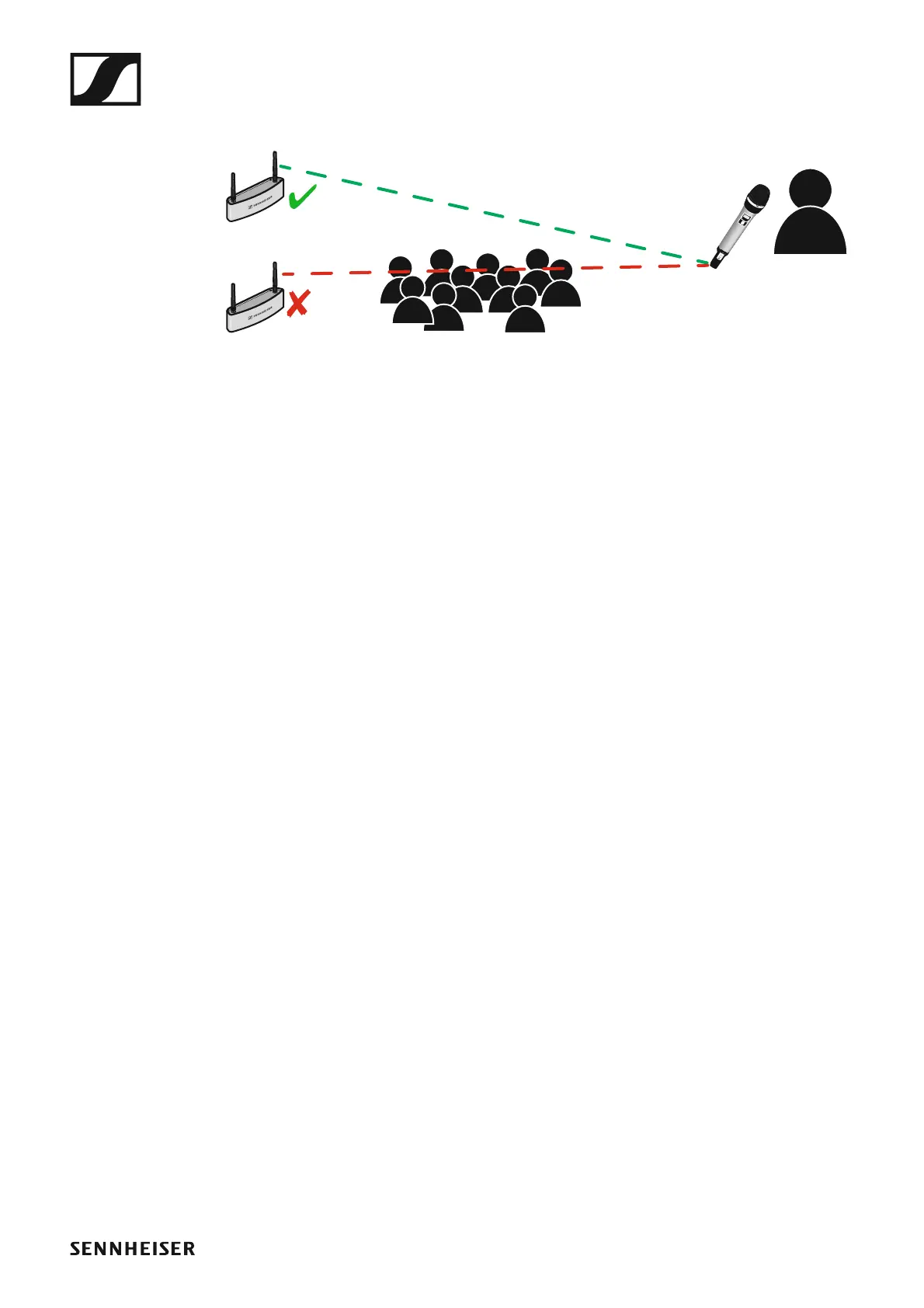

▷ If possible, position the antennas so that there is a direct line of sight

(without obstacles) between the transmitters and the antennas.

►
