The wireless SL Tablestand 153-S DW

►

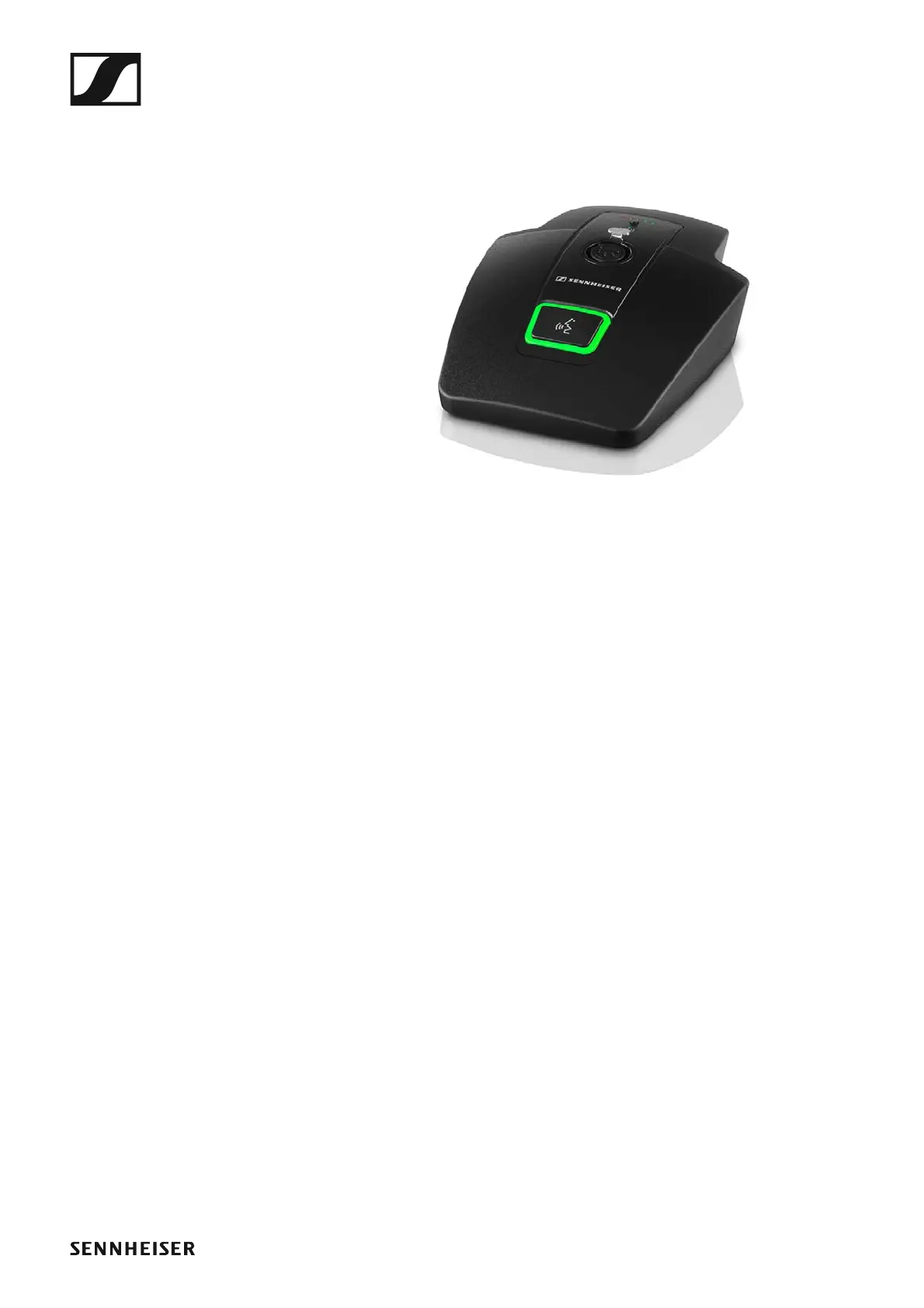

The wireless SL Tablestand 153-S DW is designed for your speech. It is

equipped with an XLR-5 socket to provide a hardwired connection to the

MEG 14-40-L-II B goose neck microphone.

Because it is completely wireless, the SL Tablestand 153-DW is the perfect

solution for ad hoc press conferences or panel discussions in any environ-

ment.

The SL Tablestand 153-S DW can be charged either wirelessly or via USB.

The CHG 2W wireless charging base for two mobile devices is available

separately. The SL Tablestand 153-S DW is equipped with dedicated

charging status LEDs to clearly show the battery life.

The Sennheiser Control Cockpit software can be used to monitor and con-

trol the SL Tablestand 153-S DW remotely.
