Planning

29

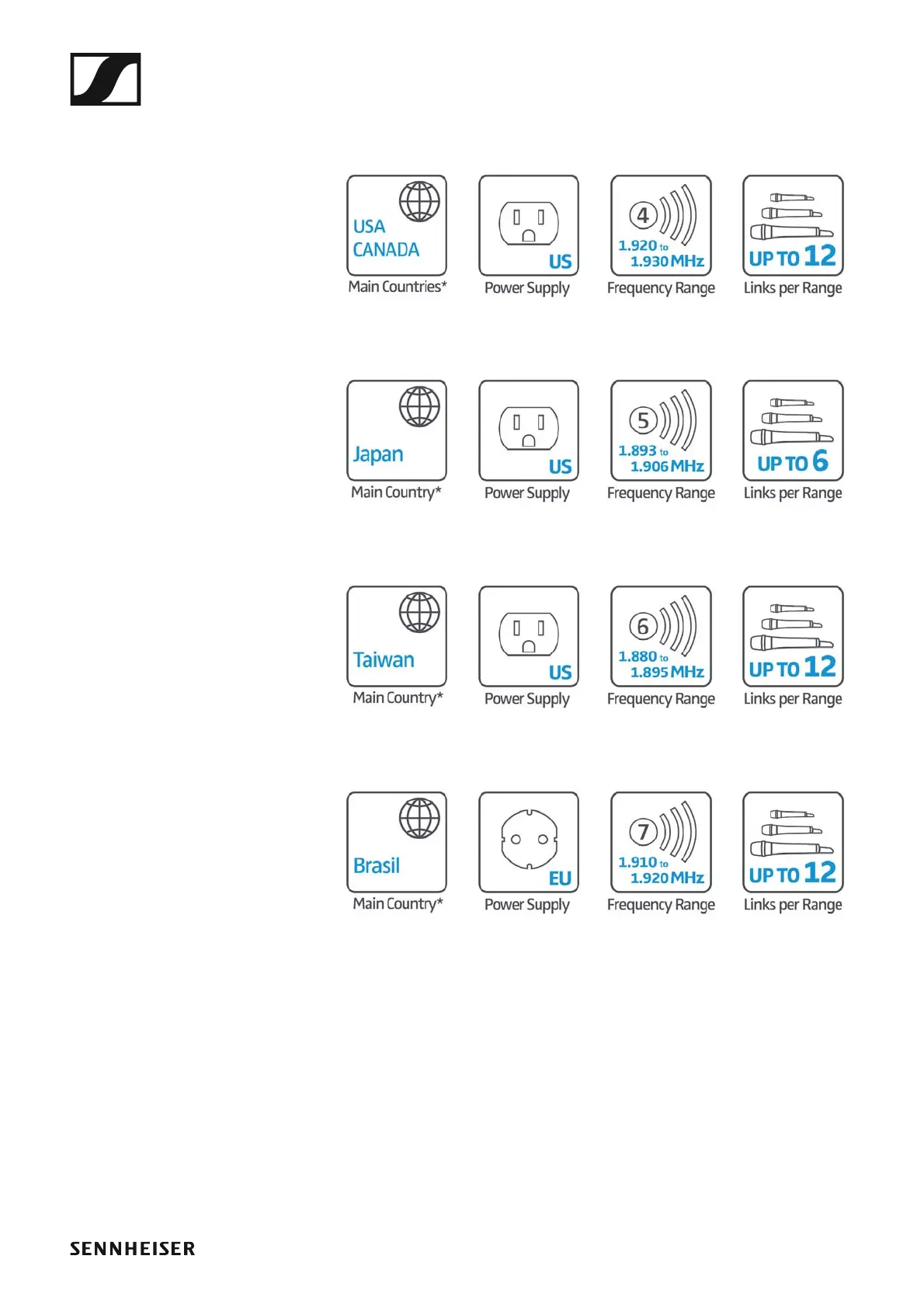

-4 US Variant:

►

-5 US Variant:

►

-6 US Variant:

►

-7 EU Variant:

►

The country variant to be used determines the maximum number of links

per range which can be used in the 1.9 GHz frequency band.
