The SL Handheld DW

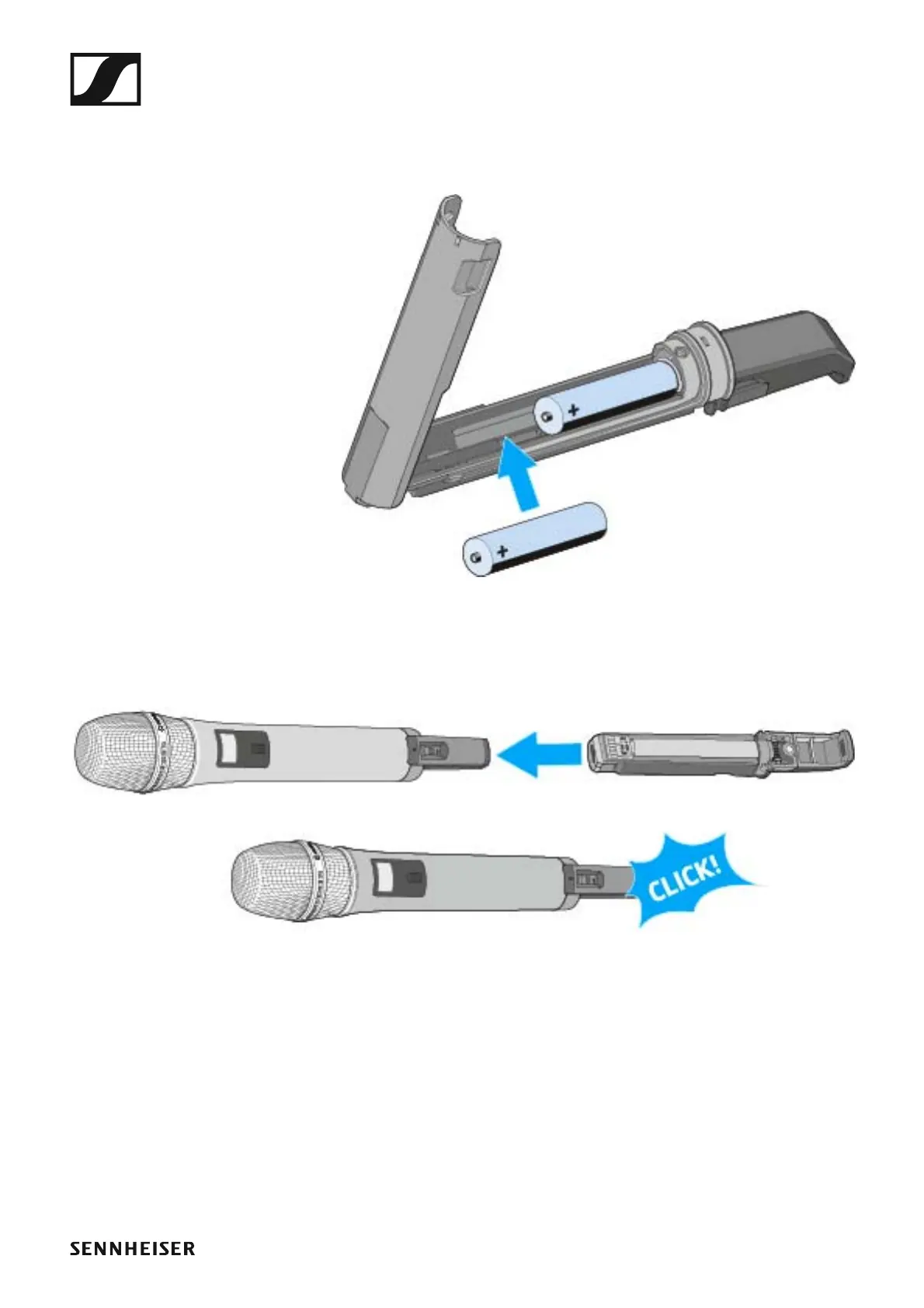

If you use the optional B 10 battery compartment:

▷ Insert the batteries into the B 10 battery compartment.

▷ Please observe correct polarity when inserting the batteries.

►

To insert the accupack or the battery compartment:

▷ Slide the accupack or the battery compartment onto the handheld

transmitter as shown.

The accupack or the battery compartment locks into place with an au-

dible click.

►
