5. Application Operation
5-2
CBM-20A/20Alite
5.1 Injecting Standard Samples at
Regular Intervals
If there are samples that need to be injected repeatedly at regular intervals, it is possible to
create a standard-sample injection table for repeat injection and insert and execute this table
at regular intervals within the analysis sequence. Specify the number of lines in the sequence
table between each execution of the standard-sample injection table.
5.1.1 Example of Analysis Using Standard sample Injection Table
An example of analysis based on a sequence table incorporating a standard-sample insertion
table is described below together with the corresponding settings.

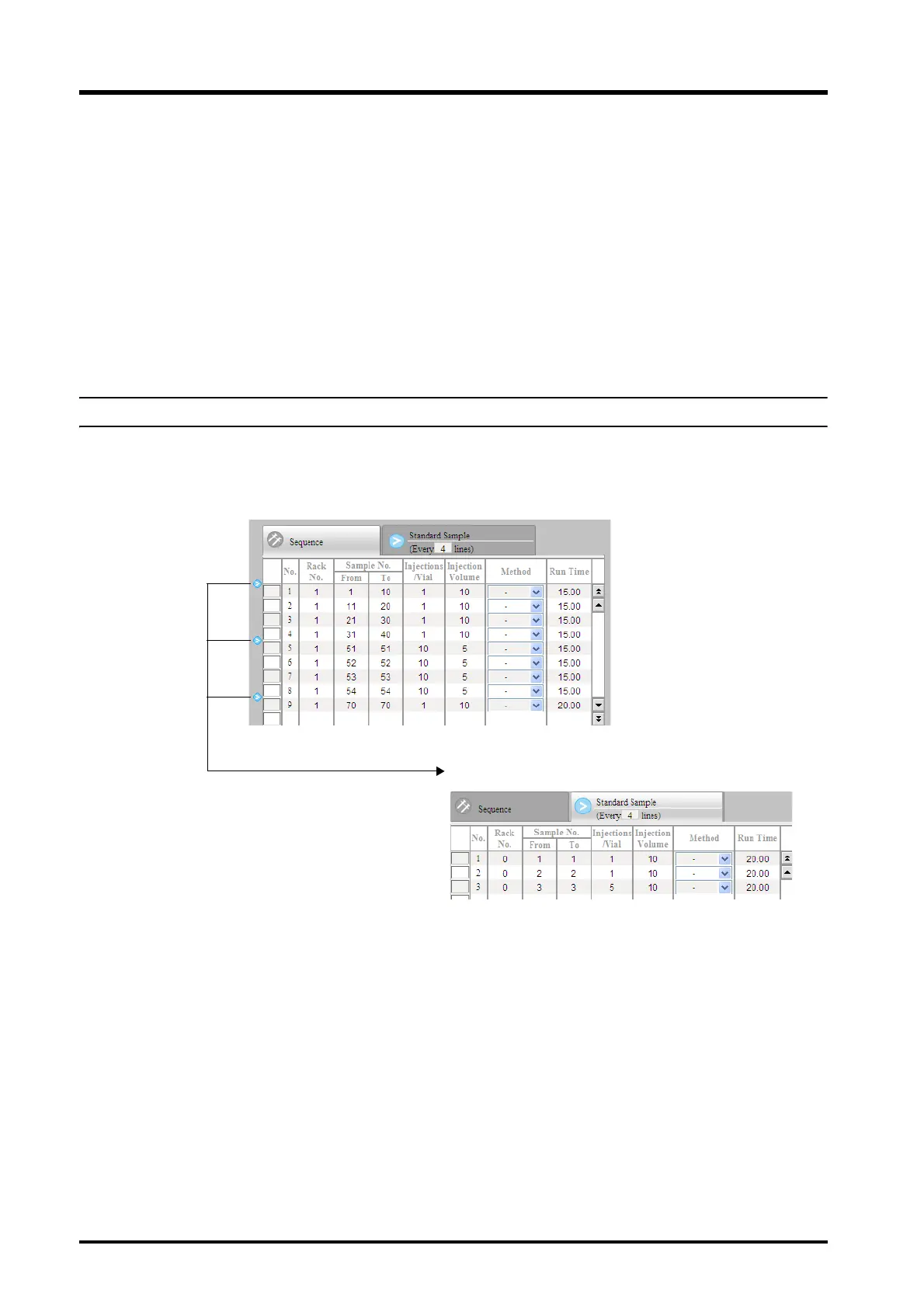

Example: Inserting the Standard-sample Injection Table at 4-line Intervals
Actual Analysis Performed
(1) Lines 1 to 3 of the standard-sample injection table are executed.
(2) Lines 1 to 4 of the sequence table are executed.
(The standard-sample injection table is executed after every 4 lines of the sequence
and so the sequence is executed in 4-line blocks.)
(3) Lines 1 to 3 of the standard-sample injection table are executed again.
(4) Lines 5 to 8 of the sequence table are executed.
(5) Lines 1 to 3 of the standard-sample injection table are executed again.
(6) Line 9 of the sequence table is executed and analysis is completed.
The standard-sample injection table shown below is
inserted after every 4 lines.
To Next Page
