2. Parts Identification and Function
2-4
CBM-20A/20Alite
 CBM-20Alite

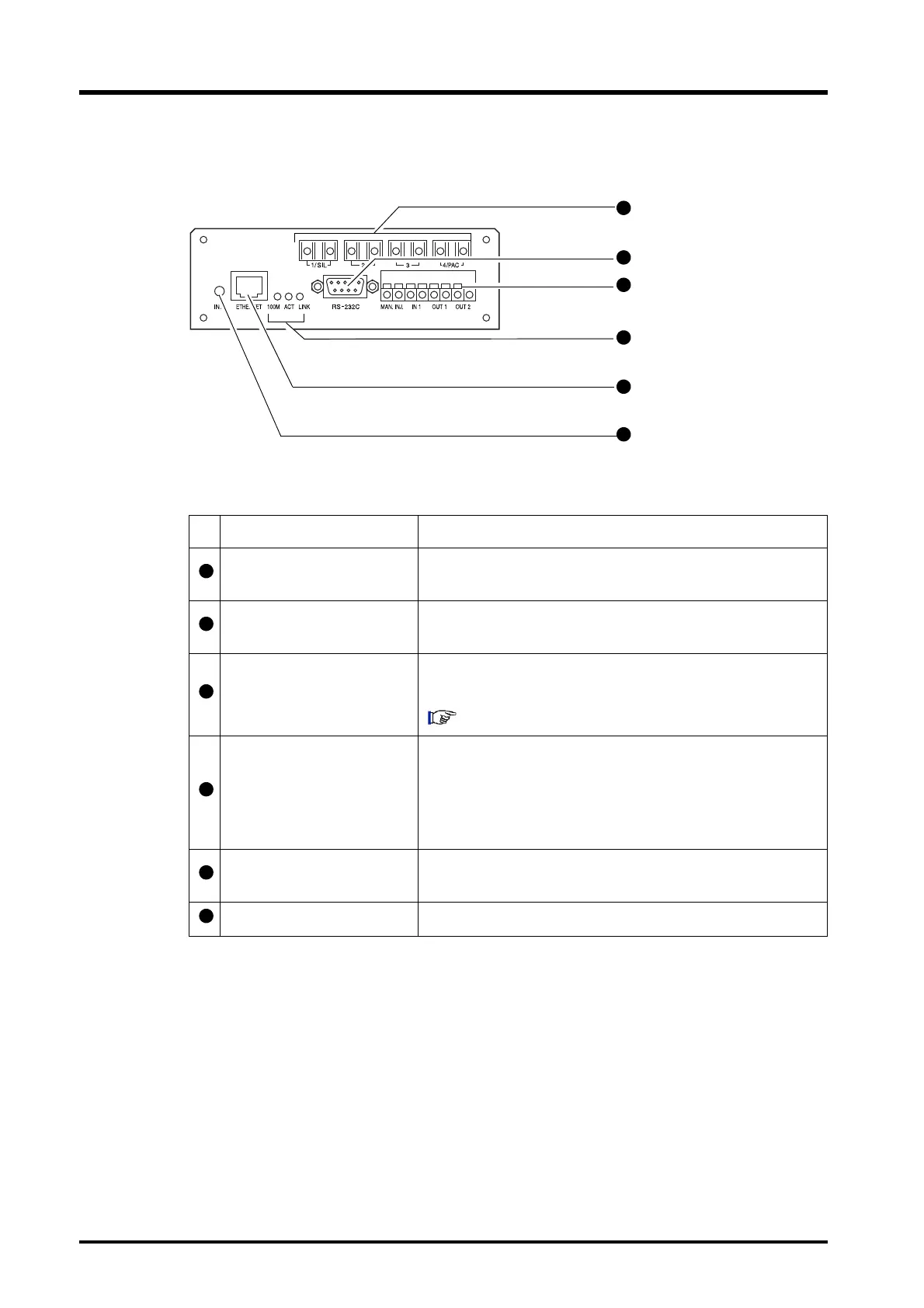

Fig. 2.3
Name Description
Remote connectors 1 to 4
(REMOTE)
Connectors for connecting to LC-30A/20A/10Avp/10A-series
components.
RS-232C connector
Connector for exchanging data with a PC or Chromatopac.
Mainly used to connect to a PC.
External input/output
terminals
Terminals for exchanging input/output signals with external
devices, such as manual injectors.
"9.2.1 Types of Connector" P. 9-7
Network indicators
(100M/ACT/LINK)
Display the status of connection to the network using LED
indicators.
100M : Turns ON when operating at 100 Mbps.
ACT : Turns ON when exchanging data.
LINK : Turns ON when linked to the network.
Ethernet connector
(ETHERNET)
Connector for connecting to the network.
Initialization button (INIT) Push to initialize the system controller or clear errors.
Initialization (INIT)
6
Network indicators
(100M/ACT/LINK)
4
Ethernet connector
(ETHERNET)
5
Remote connectors 1 to 4
1
External input/output
terminals
3
RS-232C connector
2
1
2
3
4
5
6
