Shimadzu CBM-20A User Manual

2.2 Back
2-3
CBM-20A/20Alite
2

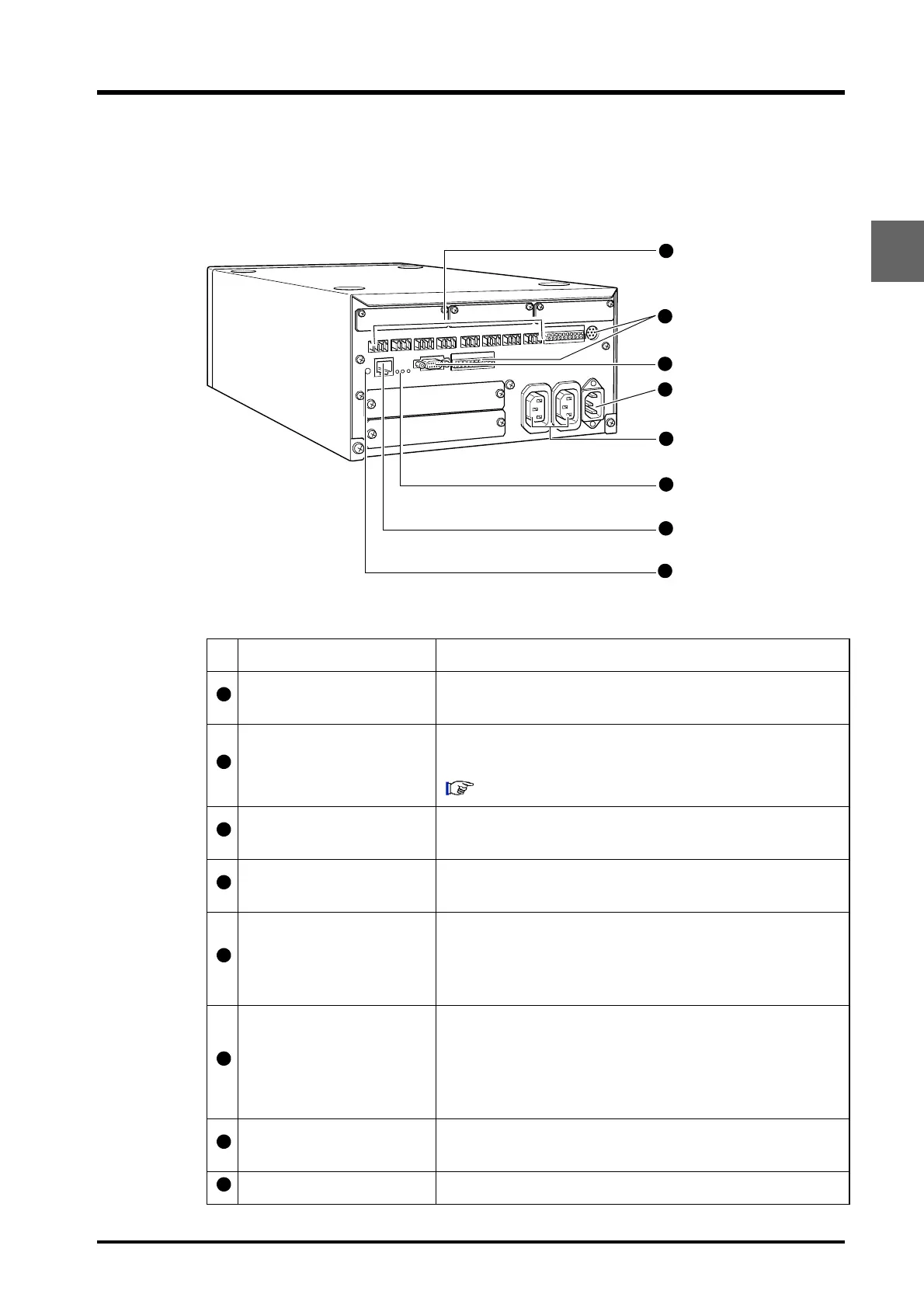

2.2 Back
 CBM-20A
Fig. 2.2
Name Description
Remote connectors 1 to 8
(REMOTE)
Connectors for connecting to LC-30A/20A/10Avp/10A-series
components.
External input/output
terminals
Terminals for exchanging input/output signals with external
devices, such as manual injectors.
"9.2.1 Types of Connector" P. 9-7
RS-232C connector
Connector for exchanging data with a PC or Chromatopac.
Mainly used to connect to a PC.
Power cord connector
(AC IN)
Connector for connecting the power cable.
AC output connectors
(AC OUT)
These connectors are for AC power output and are operationally
linked to the power switch. They can be used to supply power to
Shimadzu HPLCs (SIL-10A Series, FRC-10A, Sub-controllers).
Do not use them for any other application.
Network indicators
(100M/ACT/LINK)
Display the status of connection to the network using LED
indicators.
100M : Turns ON when operating at 100 Mbps.
ACT : Turns ON when exchanging data.
LINK : Turns ON when linked to the network.
Ethernet connector
(ETHERNET)
Connector for connecting to the network.
Initialization button (INIT) Push to initialize the system controller or clear errors.
Initialization button (INIT)
8
Remote connectors 1 to 8
(REMOTE)
1
Network indicators
(100M/ACT/LINK)
6
Power cord connector
(AC IN)
4
AC output connectors
(AC OUT)
5
External input/output
terminals
2
Ethernet connector
(ETHERNET)
7
RS-232C connector
3
1
2
3
4
5
6
7
8

Shimadzu CBM-20A Specifications

General

Brand	Shimadzu
Model	CBM-20A
Category	Controller
Language	English
