Shimadzu CBM-20A - Configuration Tab Page

2.7 "Analysis Execution" Application
2-27
CBM-20A/20Alite
2
2.7.2 "Configuration" Tab Page

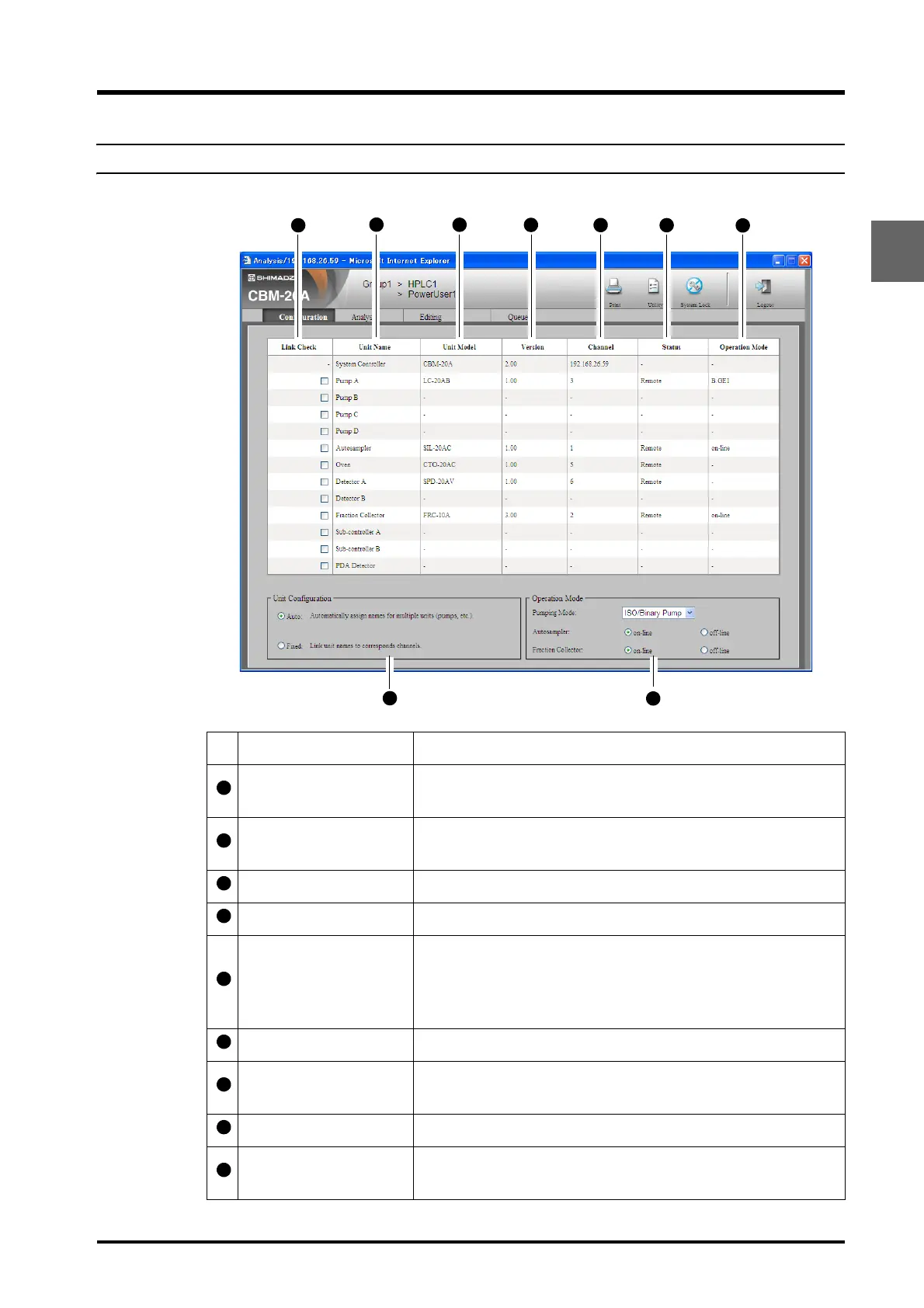

The system configuration can be set and checked from the "Configuration" tab page.
Display item Description
Link Check
Click the corresponding box to perform error processing if the
system controller and a component become disconnected.
Unit Name
Displays the names of the components connected to the system
controller (and the system controller itself).
Unit Model Displays the model names of the connected components.
Version Displays the versions of the connected components.
Channel
Displays the channel numbers of the remote connectors by which
the components are connected to the system controller. IP
addresses are displayed for the system controller and the SPD-
M20A/M30A.
Status Displays the connection statuses of the connected components.
Operation Mode
Used to select the pumping mode for the solvent delivery module
and the operation mode for the autosampler and fraction collector.
Unit Configuration Used to select the method for assigning unit names.
Operation Mode
Used to select the pumping mode for the solvent delivery module
and the operation mode for the autosampler and fraction collector.
