5 MAINTENANCE
▸ Lay the toothed belt on the drive axis, push pivoted shutter back onto the axis and
reinstall the tension spring.
▸ Trigger the function check (select the “Adjustment / Function Check - Manual”
subdirectory in the “MCU“ device file and click “Start Manual Function Check”; see
“DUSTHUNTER T Parameter protocol (example)”, page 82).
▸ In SOPAS ET, connect with “DH T200”, select the “Diagnosis / Check values” directory
and check the contamination value.

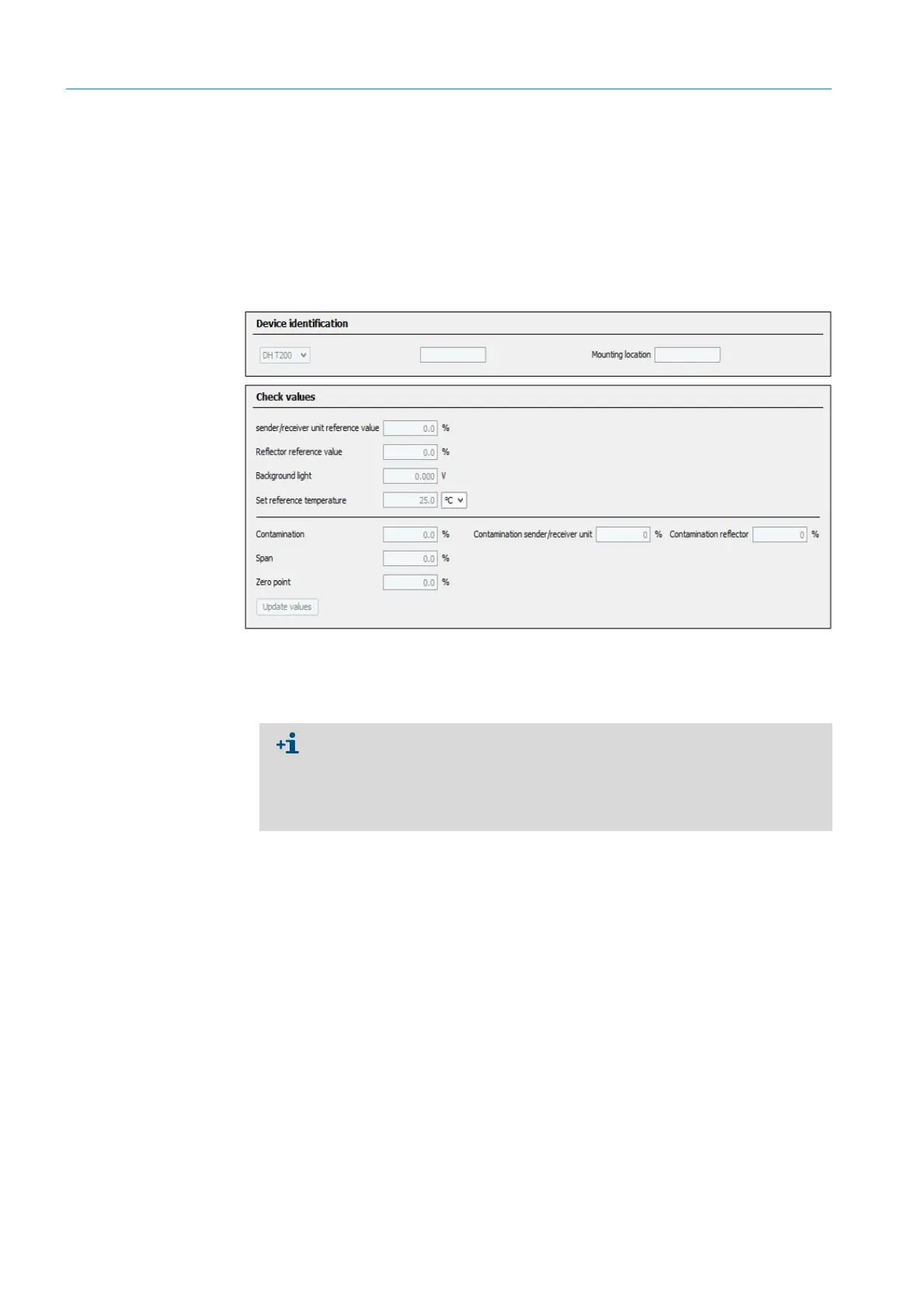

Fig. 71: SOPAS ET menu: DH T200/Diagnosis/Check values
▸ If the measured values for contamination, zero point and span are within the allowed
ranges, save them to the device by clicking the “Refresh” button (“Check values” field); if
not, repeat cleaning and check the contamination value again by triggering a renewed
function check.
▸ Put the pivoted shutter cover back on, remove the cover from the assembly flange,
swivel the enclosure back in and lock with the knurled screws.
▸ Move the pivoted shutter back into the measuring position. To do this, click the
“Measurement” button under “Pivoted shutter reflector” in the “Adjustment / Manual
adjustment / Motor control” directory (see “SOPAS ET menu: DH T200/Adjustment/
Manual Adjustment/Motor control”, page 99).
▸ Resume Measuring mode.
● The contamination value can also be displayed on the LD display of the MCU
(trigger a function check and select the “T200/Diagnosis” menu, see “Menu
structure”, page 87).
● If the contamination value does not sink below the value for warning in spite of
several cleaning processes, the device is probably defective → contact SICK
Service.
