2 Name of Each Part
3
2.2 Panel Switch in Cabinet

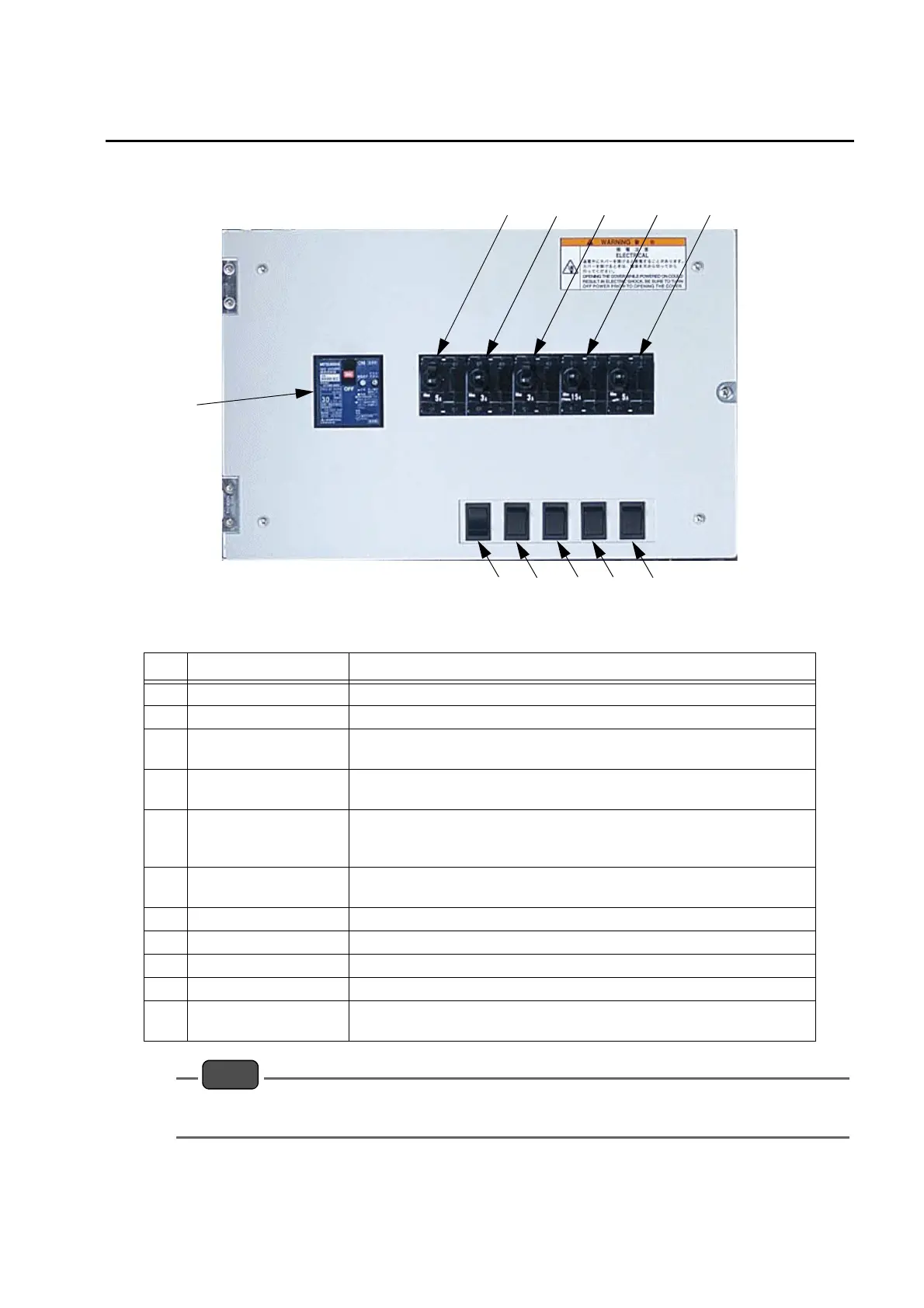

Fig. 2 Panel switch in cabinet
Note
The short circuit breaker, circuit protector, and switch cannot always be attached depending on the
specification.
No. Name Description
1 Main power ELB A main power switch (short-circuit breaker) in the analyzer.
2 Meter CP A protection device (circuit protector) of the sampling unit of analyzer.
3 Utility CP
A fluorescent lamp, ventilation fan, and a protection device (circuit
protector) of the plug outlet.
4
Primary filter CP
(primary filter switch)
A protection device (circuit protector) of the primary filter heater.
Serves also as a power switch of primary filter heater.
5
Heated tube CP
(heated tube switch)
A protection device (circuit protector) of the heated tube.
Maximum length of the heated tube: 30 m
Serves also as a power switch of heated tube.
6
Panel heater CP
(panel heater switch)
A protection device (circuit protector) of the panel heater.
Serves also as a power switch of panel heater.
7 Analyzer switch The power switch of analyzer.
8 Pump 1 switch A power switch for pump 1.
9 Pump 2 switch A power switch for pump 2.
10 Fluorescent lamp switch A power switch for the fluorescent lamp.
11 In-maintenance switch
The contact output switch in the maintenance.
The concentration signal output is hold according to the specification.
2
3
1
4 5 6
7 8
9 10 11
