5 MAINTENANCE
5.2.2 Maintenance on the reflector
DUSTHUNTER T50
▸ Set the measuring system to “Maintenance” mode (see “General”, page 93).
▸ Loosen the CAMLOCK clips of reflector (1) and remove reflector (2).
▸ Press purge air pipe (3) with flat screwdriver out of enclosure (4) and remove.

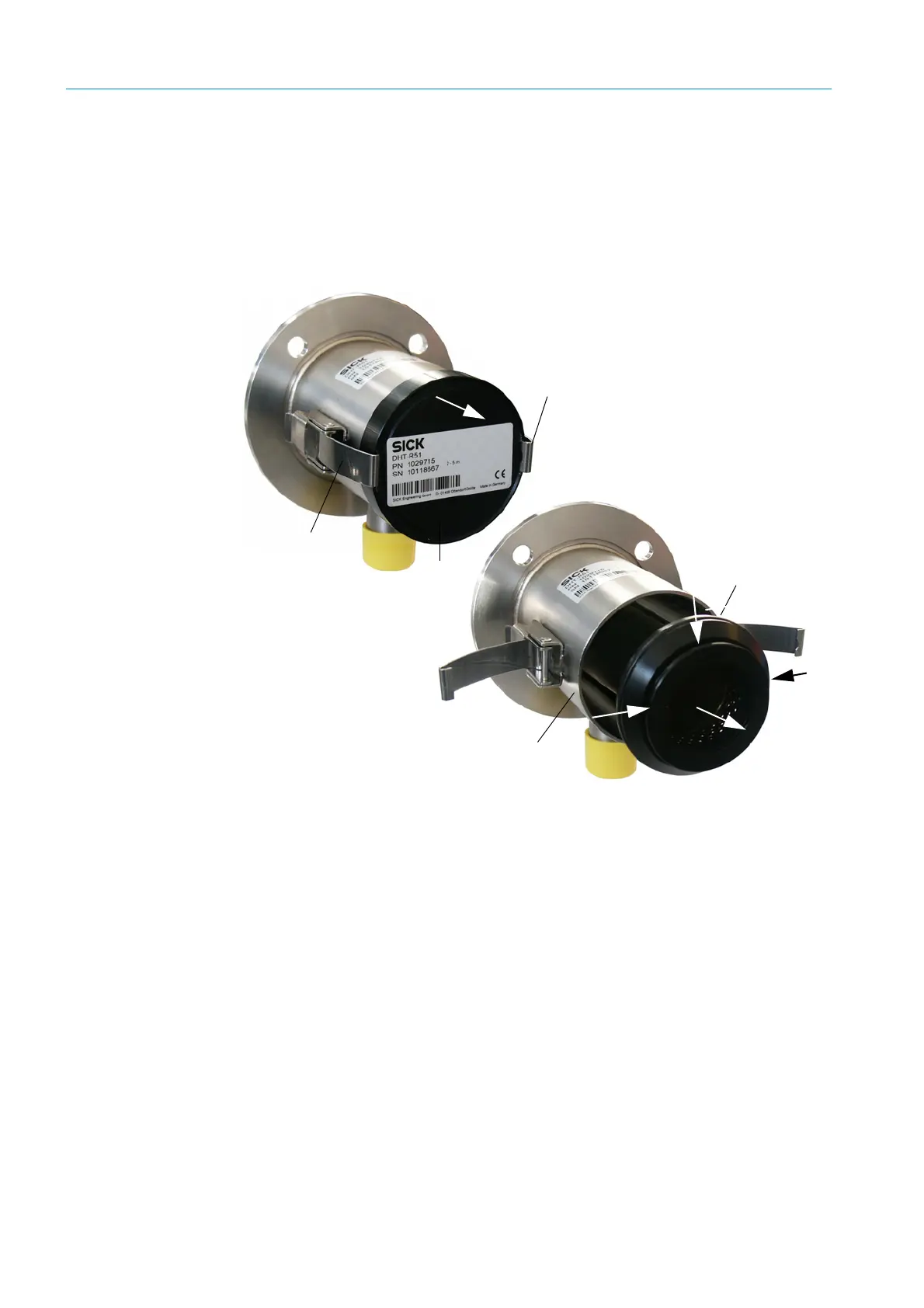

Fig. 68: Reflector DHT-R5x
▸ Carefully clean glass pane with an optics cloth.
▸ Push the purge air pipe into the enclosure again and ensure centrical alignment.
▸ Put on the reflector and fasten with CAMLOCK clips
▸ Resume Measuring mode.
DUSTHUNTER T100
▸ Set the measuring system to “Maintenance” mode.
▸ Loosen the knurled screws and swivel the enclosure to the side.
▸ Close the mounting flange with cover (see “Miscellaneous”, page 125).
▸ Carefully clean glass pane with an optics cloth.
▸ Remove the cover from the mounting flange, swivel the enclosure back and lock with the
knurled screws.
▸ Resume Measuring mode.






CAMLOCK clips

Reflector

Purge air pipe

Enclosure
