PRODUCT DESCRIPTION 2
2.2.3 Flange with tube
The flange with tube is available in different steel grades and dimensions (see “Flange with
tube”, page 118). Selection depends on the wall and isolation thickness of the duct wall (→
nominal length) and the duct material.

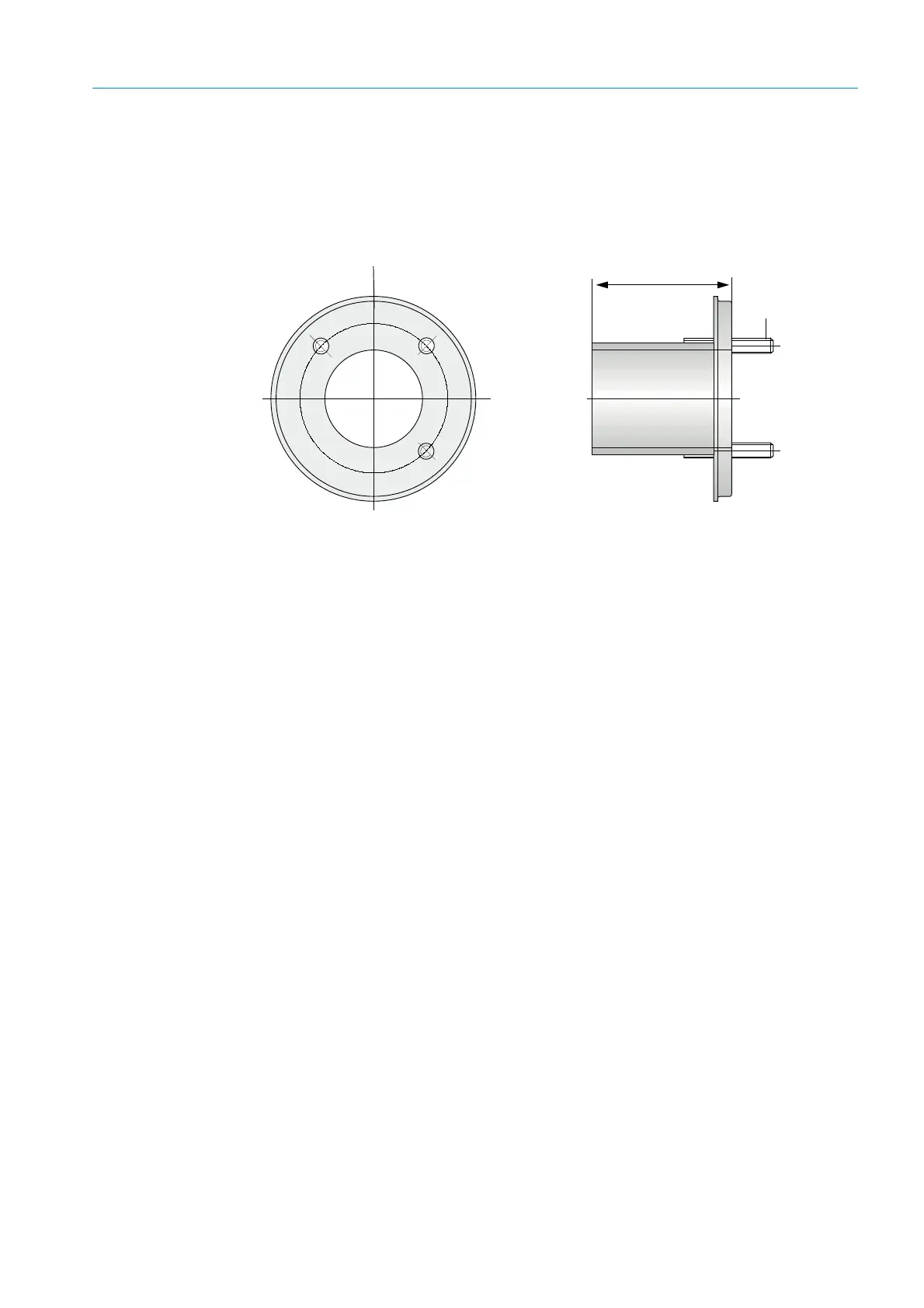

Fig. 10: Flange with tube
TOP



NL

Marking for assembly position

Securing bolt

Material St 37 or 1.4571
