START-UP AND PARAMETER SETTINGS 4
The measuring system must then be scaled after focussing has completed.
4.2.3 Scaling the measuring system for transmission measurement
▸ Process successively the steps shown in field “Transmission set reference” in directory
“Adjustment / Manual adjustment / Transmission set reference” (see “SOPAS ET menu:
DH T100/Adjustment/Manual Adjustment/Transmission set reference”, page 64, see
“SOPAS ET menu: DH T50/Adjustment/Manual Adjustment/Transmission set ref-
erence”, page 67, see “SOPAS ET menu: DH T200/Adjustment/Manual Adjustment/
Transmission set reference”, page 68). While the steps are processed, the associated
indicator lights yellow.

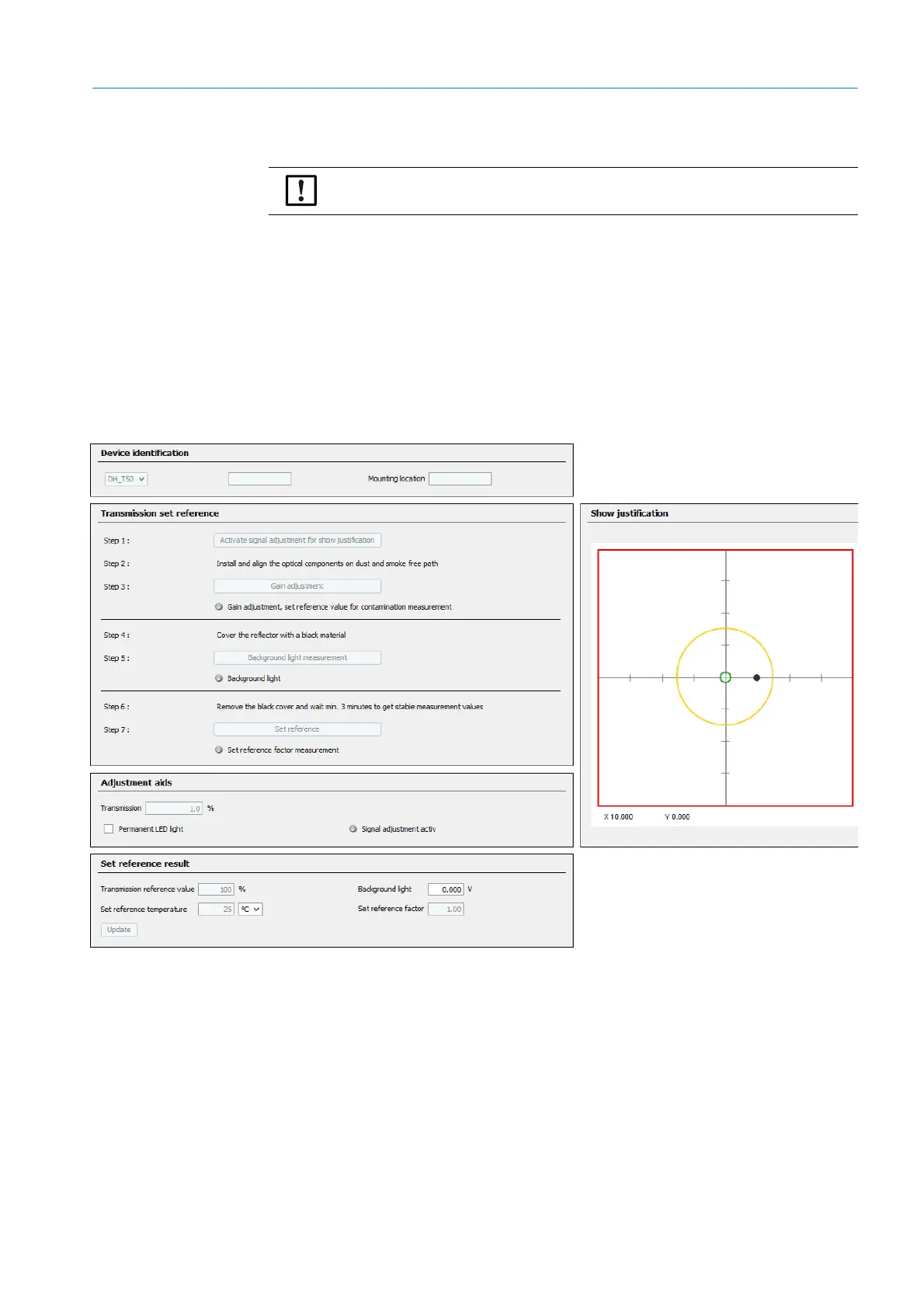

Fig. 43: SOPAS ET menu: DH T50/Adjustment/Manual Adjustment/Transmission set reference
NOTE:
The measuring system must be scaled again after every focus change.
