6 Other Functions
38
6.2.2 Analog output check
Current output from the analyzer or 0% to 100% full scale of the voltage output can be output
by each channel with 10% interval.
Pressing the [ANALOG OUTPUT] button in the MENU 2/5 (MAINTENANCE/DATA menu)
screen displays the ANALOG OUTPUT screen.
In this screen the analog output value can be confirmed.

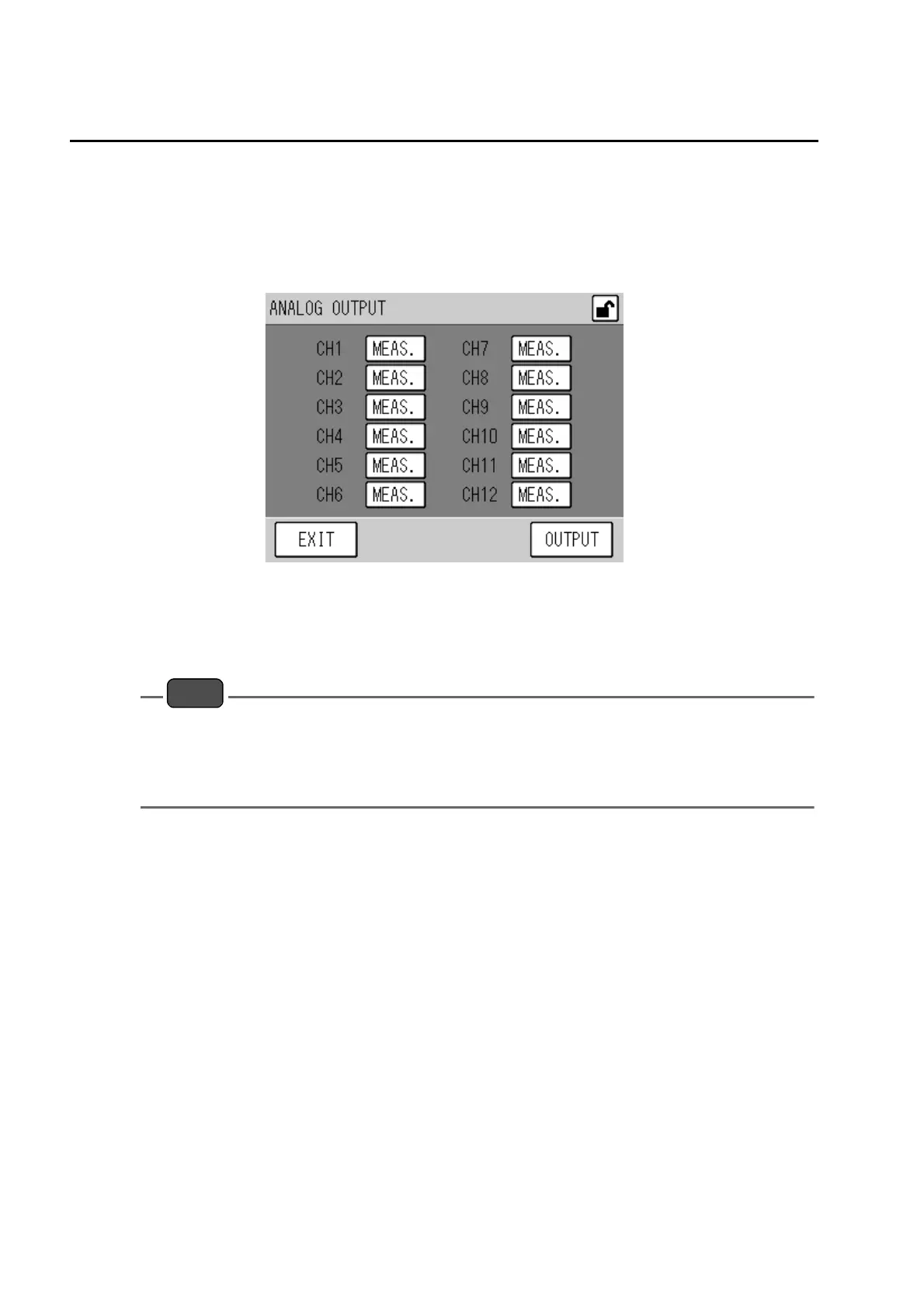

Fig. 32 ANALOG OUTPUT screen
Press the setting part of the channel to be output.
Pressing the set value switches the value in order: 0%→10%→20% to 100%→[MEAS.]→0%.
After setting, press the [OUTPUT] key. The set condition is output from each channel.
Note
After the setting, press the [EXIT] key twice to return to the MEAS. screen.
Pressing the [EXIT] key returns the output from all the channels to the [MEAS.] state.
For the configuration of output channel and output terminal, refer to " 9.3 Analog Signal Output "
(page 86).
When the analog output needs adjustment, contact us.
