3.3.4.2 MCU processor board connections

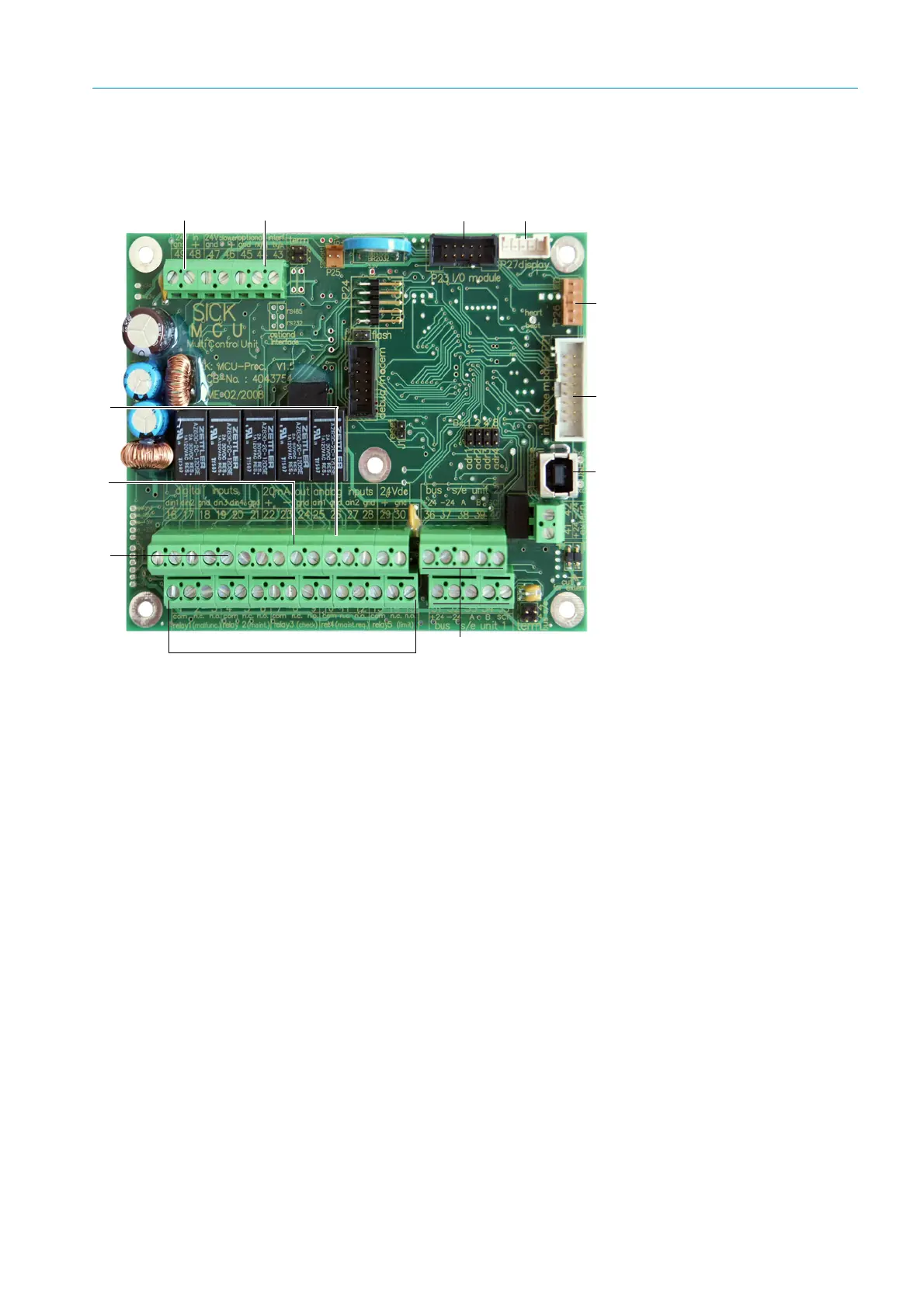

Fig. 29: MCU processor board connections
 

á
à





Supply voltage 24 V DC

RS232

Connection for optional I/O
module

Connection for Display module

Connection for LEDs

Connection for optional Inter-
face module

USB plug connector

Connections for sender/
receiver units

Connections for relays 1 to 5

Connections for digital inputs
1to 4
à
Connection for analog output
á
Connections for analog inputs
1 and 2
