8012428/YWL2/3-0/2016-08| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER T
Subject to change without notice
ASSEMBLY AND INSTALLATION 3
3.2.5 Fitting the weatherproof cover
Weatherproof cover for analyzer
Assembly
▸ Push the base plate (2) sideways on the flange with tube (5), slot onto the threaded bolts
(4) of the duct-side surface of the flange plate and screw tight (see “Fitting the weather-
proof cover for analyzer (dimensions in mm)”, page 43).
▸ Put the cover (1) on from above.
▸ Insert the side holding catches (3) into the counterpieces, twist and lock in.

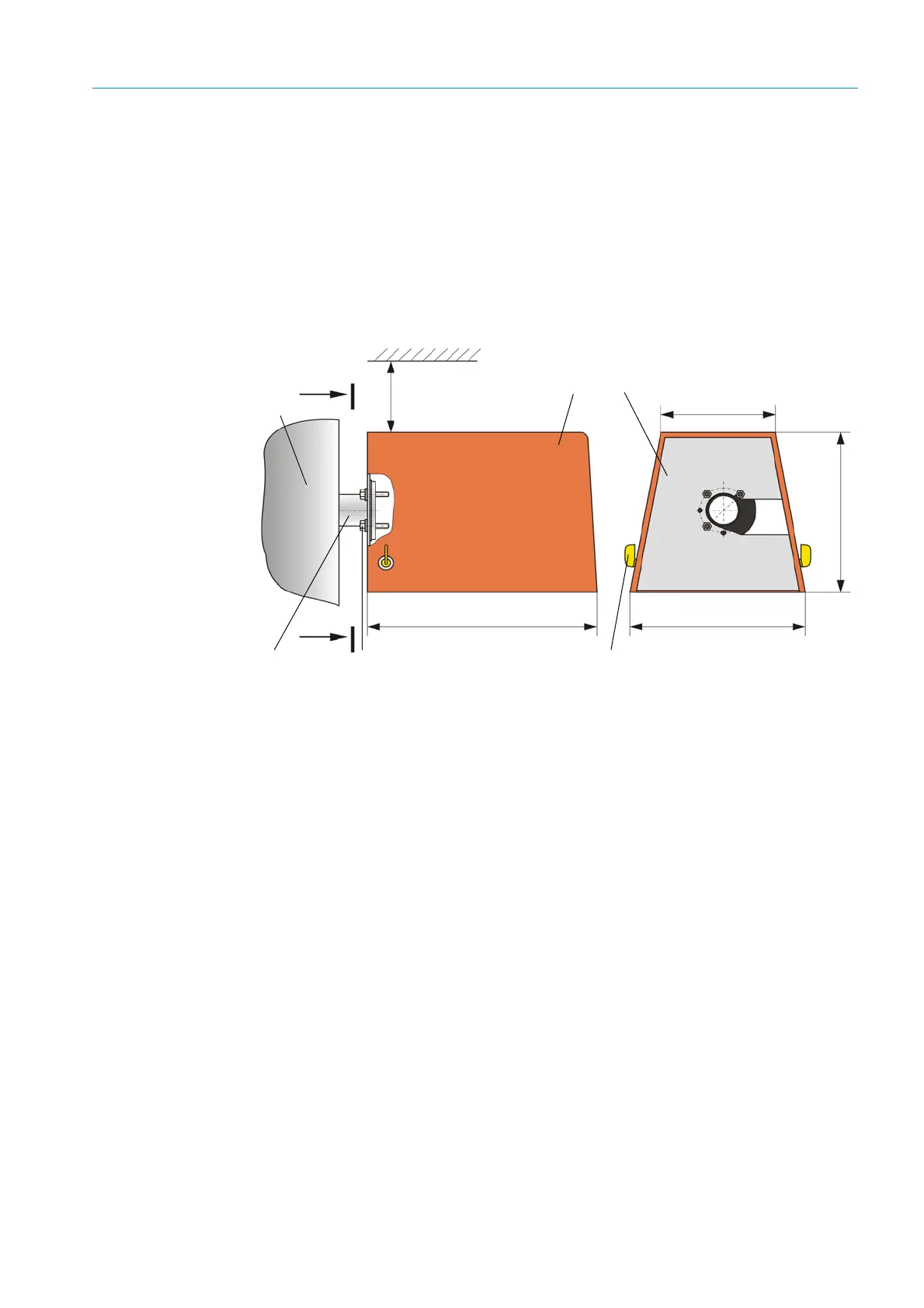

Fig. 22: Fitting the weatherproof cover for analyzer (dimensions in mm)
Weatherproof cover for external purge air unit
The weatherproof cover (see “Weatherproof covers”, page 122) comprises a cover and
locking set.
Assembly:
▸ Mount the locking pins from the locking set on the base plate.
▸ Put the weatherproof cover on from above.
▸ Insert the holding catches into the counterpieces from the side, twist and lock in.
Clearance to lift off
(492)
(365)
(239)
> 250
(360)
A
A
A -A
Cover
Base plate
Side holding catches
Threaded bolts
Flange with tube
Duct
