6.2.3 Calibration coefficient history check
Pressing the [CAL. ADJUSTMENT HISTORY] button from the MENU 2/5 (MANTENANCE/
DATA menu) screen displays the CALIBRATION HISTORY screen.
In this screen, the calibration coefficient history can be confirmed.

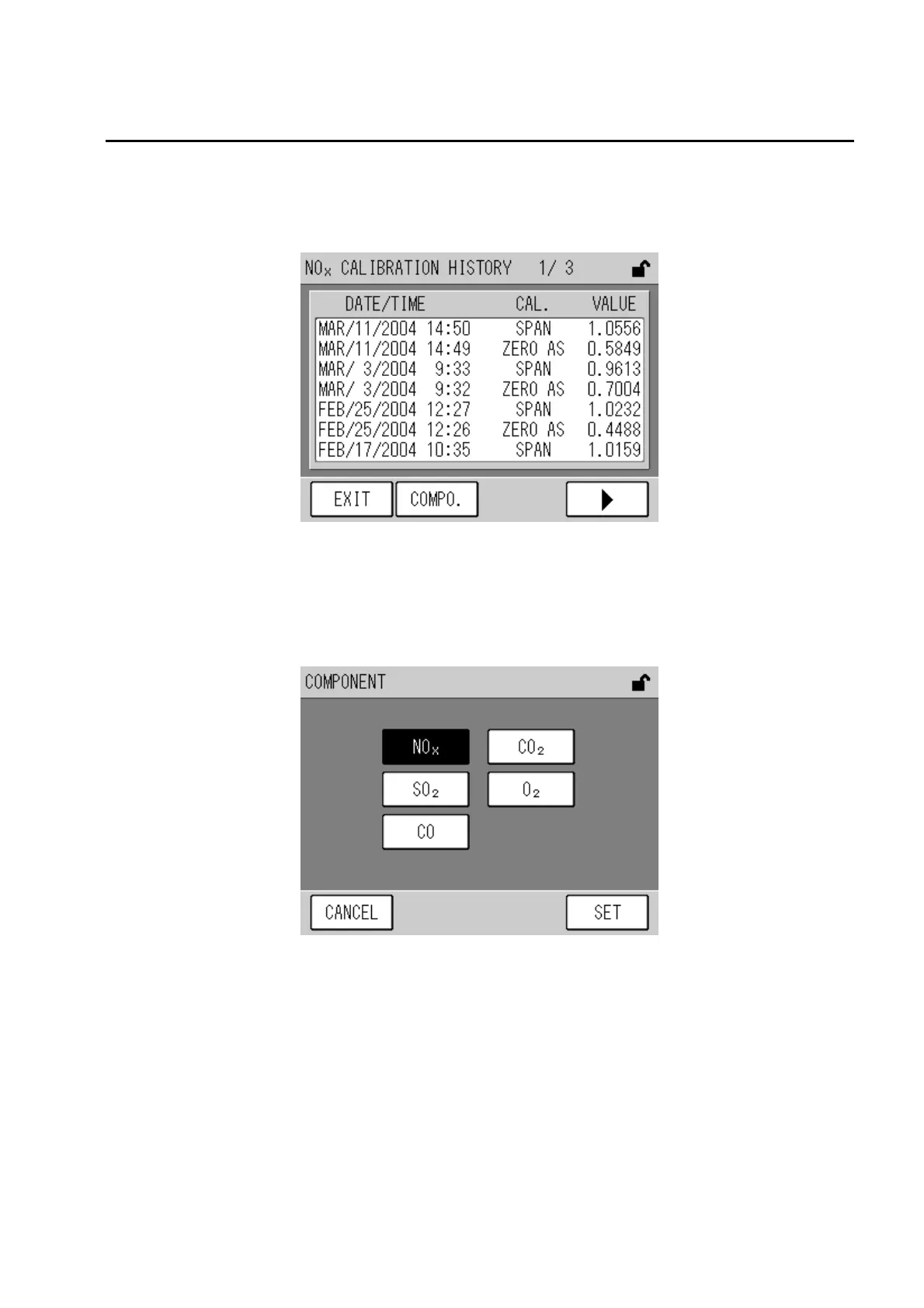

Fig. 33 CALIBRATION HISTORY screen
Maximum 15 records of calibration coefficient history can be memorized for each component.
Pressing the [X] key will display the next screen.
Press the the [W] key and [X] key to switch the screen.
Pressing the [COMPO.] key will display the COMPONENT screen.
Fig. 34 COMPONENT screen
Press the component button which calibration coefficient history is to be checked, and press
the [SET] key.
The displayed component is changed, and the screen returns to the CALIBRATION HISTORY
screen for the set component.
