3 ASSEMBLY AND INSTALLATION
3.2.4 Assembly work
▸ Prepare holder (see “Purge air unit layout and assembly dimensions (dimensions in
mm)”, page 42).
▸ Fasten purge air unit with 4 M8 screws.
▸ Check whether the filter element is fitted in the filter housing otherwise fit when
necessary.

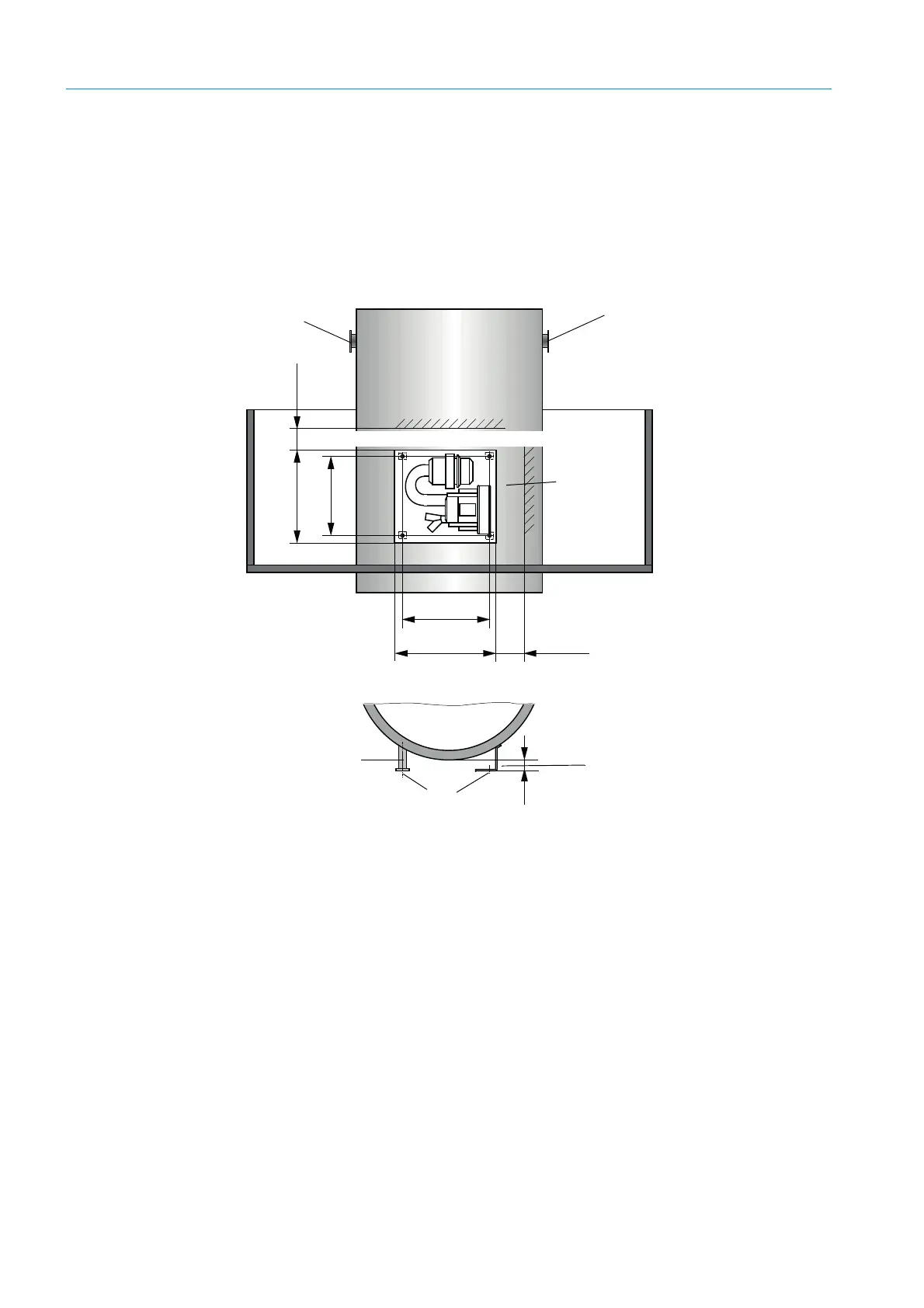

Fig. 21: Purge air unit layout and assembly dimensions (dimensions in mm)

> 140
Clearance to fit weatherproof cover

Flange with tube

Clearance to exchange filter
element

Alternative: Mounting bracket

Steel pipe 50 x 5 DIN 2391

Duct
(550)

470

50
M 8
> 160
(550)

470


