8012428/YWL2/3-0/2016-08| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER T
Subject to change without notice
MAINTENANCE 5
5.3.2 Optional external purge air unit
Replacing the filter element

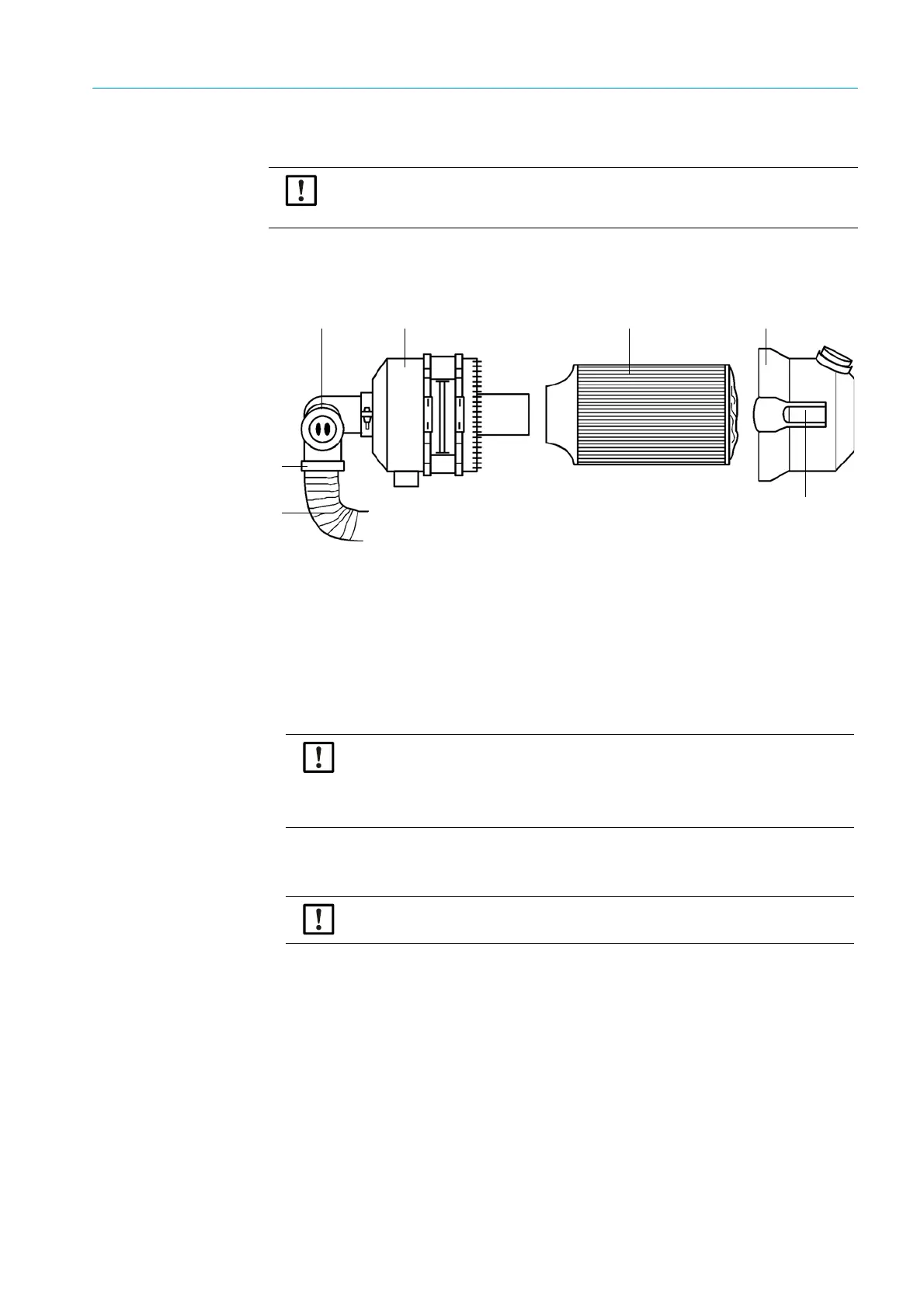

Fig. 73: Replacing the filter element
▸ Switch the fan off for a short time.
▸ Clean outside of filter housing (2).
▸ Loosen strap retainer (7) and clamp purge air hose (6) to a clean location.
▸ Press snap locks (5) together and take off filter housing cover (4).
▸ Remove filter element (3) with twisting-pulling movements.
▸ Clean the inside of the filter housing and the filter housing cover with a cloth and brush.
▸ Insert the new filter element with twisting-pressing movements.
Spare part: Filter element Micro-Top element C11 100, Part No. 5306091
▸ Mount the filter housing cover, ensuring that it is aligned correctly with the housing, and
snap the snap locks into place.
▸ Reconnect the purge air hose to the filter outlet using the hose clamp.
▸ Switch the fan on again.
NOTICE:
The purge air unit must be serviced at the latest when the low-pressure monitor (7) at
the filter outlet triggers (see “Replacing the filter element”, page 103).
Low-pressure monitor
Snap lock
Filter housing
Purge air hose
Filter element
Strap retainer
Filter housing cover
NOTICE:
▸ Place the end of the hose in a safe place so that foreign objects cannot be
sucked in (this will cause irreparable damage to the blower), but do not close the
end of the hose! During this time, the purge air entering the purge air connection
pieces is unfiltered.
NOTICE:
▸ For wet cleaning, use only a water-soaked cloth and then dry the parts well.
