4 START-UP AND PARAMETER SETTINGS
4.6 Operating/setting parameters via the optional LC-Display
4.6.1 General information on use

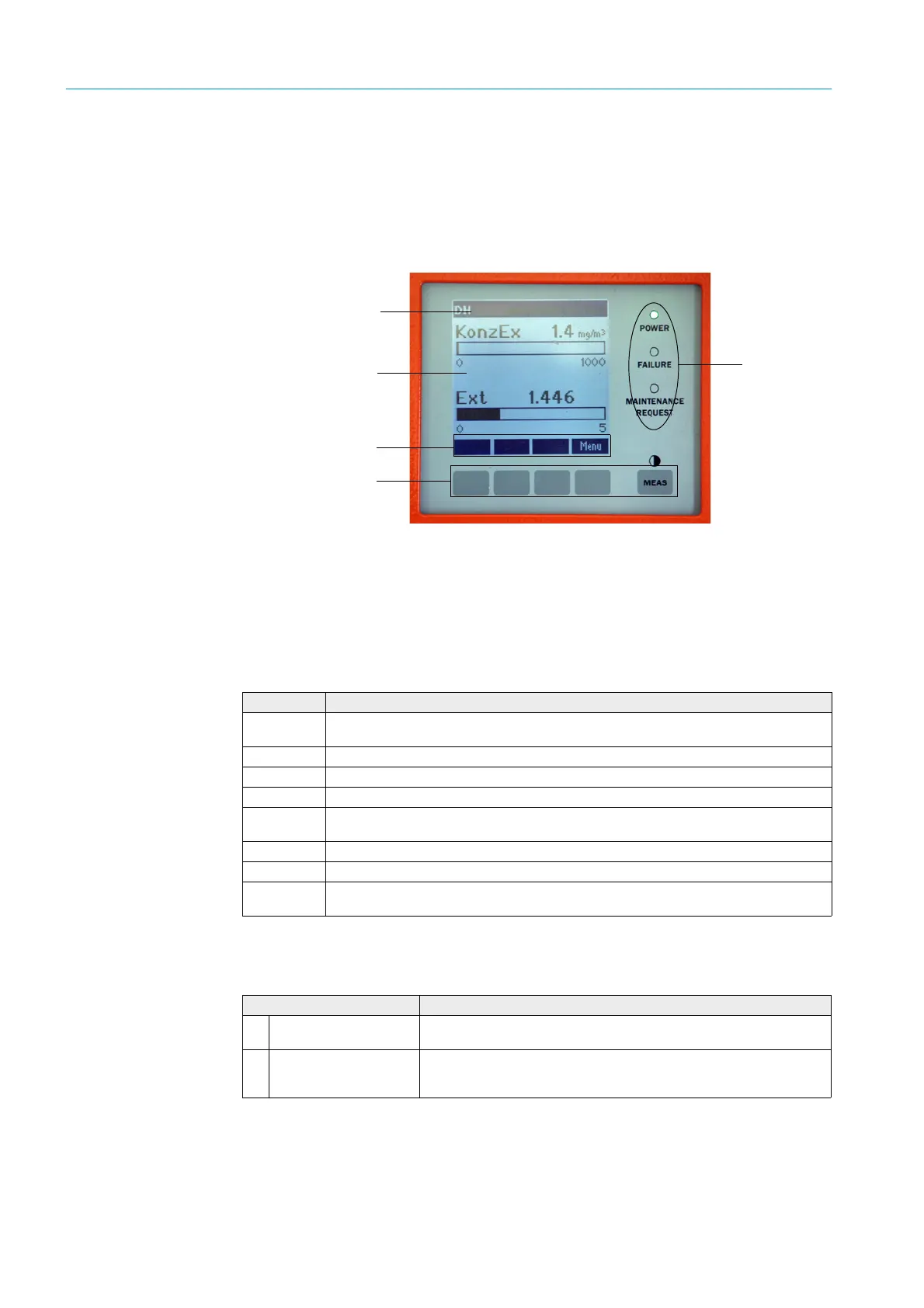

The display and operating interface of the LC-Display contains the functional elements
shown in Fig. “LC-Display functional elements”.
Fig. 58: LC-Display functional elements
Button functions
The function shown depends on the Menu currently selected. Only the function shown in
the button is available.
4.6.2 Password and operating levels
Certain device functions are first accessible after a password has been entered.
Status LED
Display field
Control buttons
Status bar
Current button function
Button Function
Diag Display diagnostic information (warnings and errors during a start using the Main
menu, sensor information during a start using the Diagnostics menu)
Back Switch to higher level menu
Arrow
↑ Scroll up
Arrow
↓ Scroll down
Enter Execution of the action selected with an arrow button (switch to a submenu, confirm
parameter selected during parameter setting)
Start Start an action
Save Store a changed parameter
Meas Switch from main measured values to measured sensor values
Display the contrast setting (after 2.5 s)
User level Access to
0 Operator Displays measured values and system states
No password required
1 Authorized operator Displays, inquiries as well as start-up or adjustment to customer-
specific demands and diagnosis of necessary parameters
Preset password: 1234
To Next Page
