8012428/YWL2/3-0/2016-08| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER T
Subject to change without notice
PRODUCT DESCRIPTION 2
2.2.1 Sender/receiver unit
The sender/receiver unit contains the optical and electronics subassemblies to send and
receive the reflected light beam as well as to process and evaluate the signals. Versions
with contamination measurement are also fitted with swivel mechanisms (see “Pivoted
shutter settings on the sender/receiver unit”, page 15 and see “Self-alignment principle
design”, page 19).

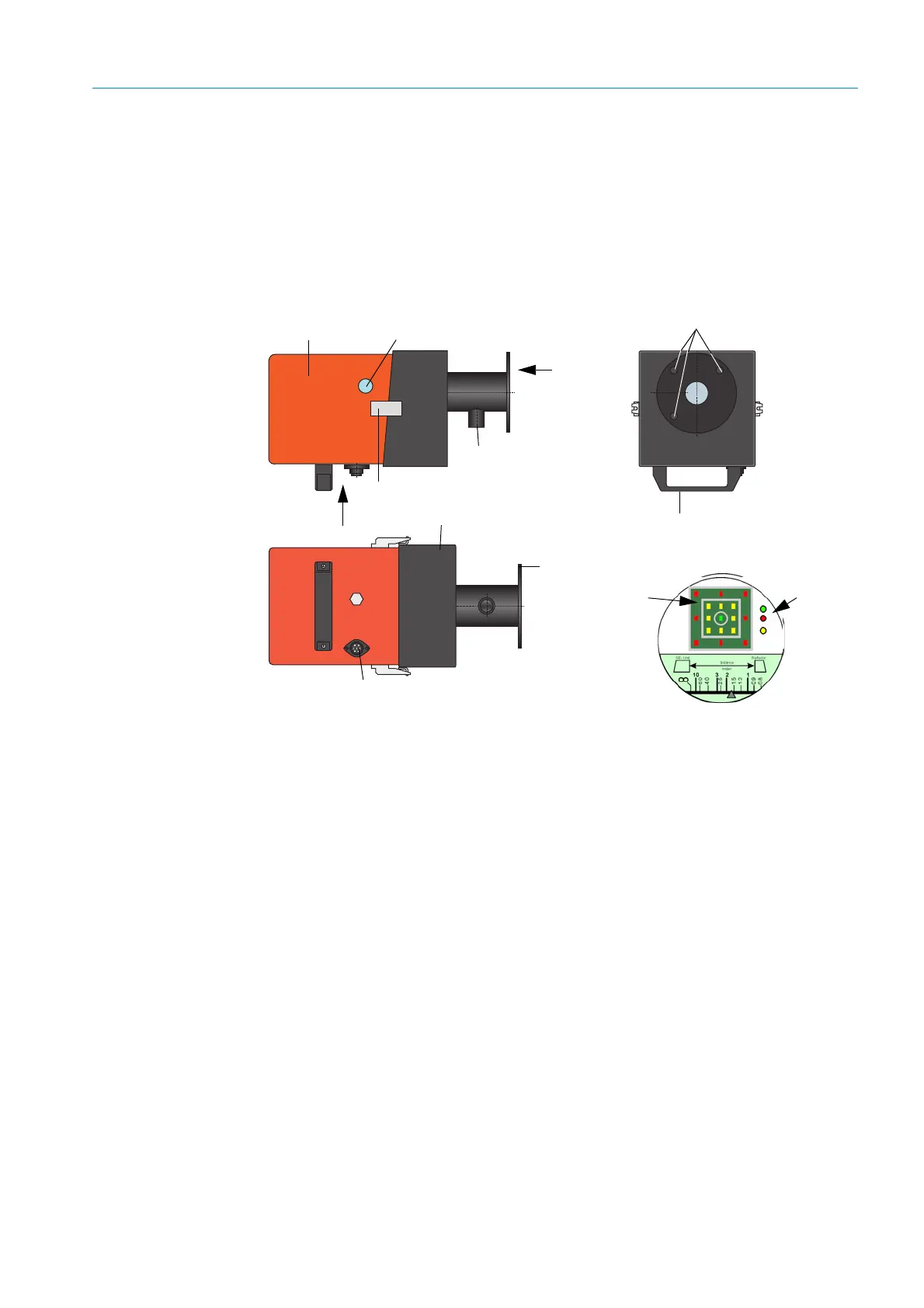

Fig. 7: Sender/receiver unit DHT-Txx
B
Sender/receiver unit for DUSTHUNTER T50
à
A
A
B
Control window
Electronics unit
Alignment indicator
Control window
Flange
Mounting holes
Mounting attachment
Handle CAMLOCK clip
Status indicator à Purge air connection
Connection for connection cable to MCU
