8012428/YWL2/3-0/2016-08| SICK O P E R A T I N G I N S T R U C T I O N S | DUSTHUNTER T
Subject to change without notice
PRODUCT DESCRIPTION 2

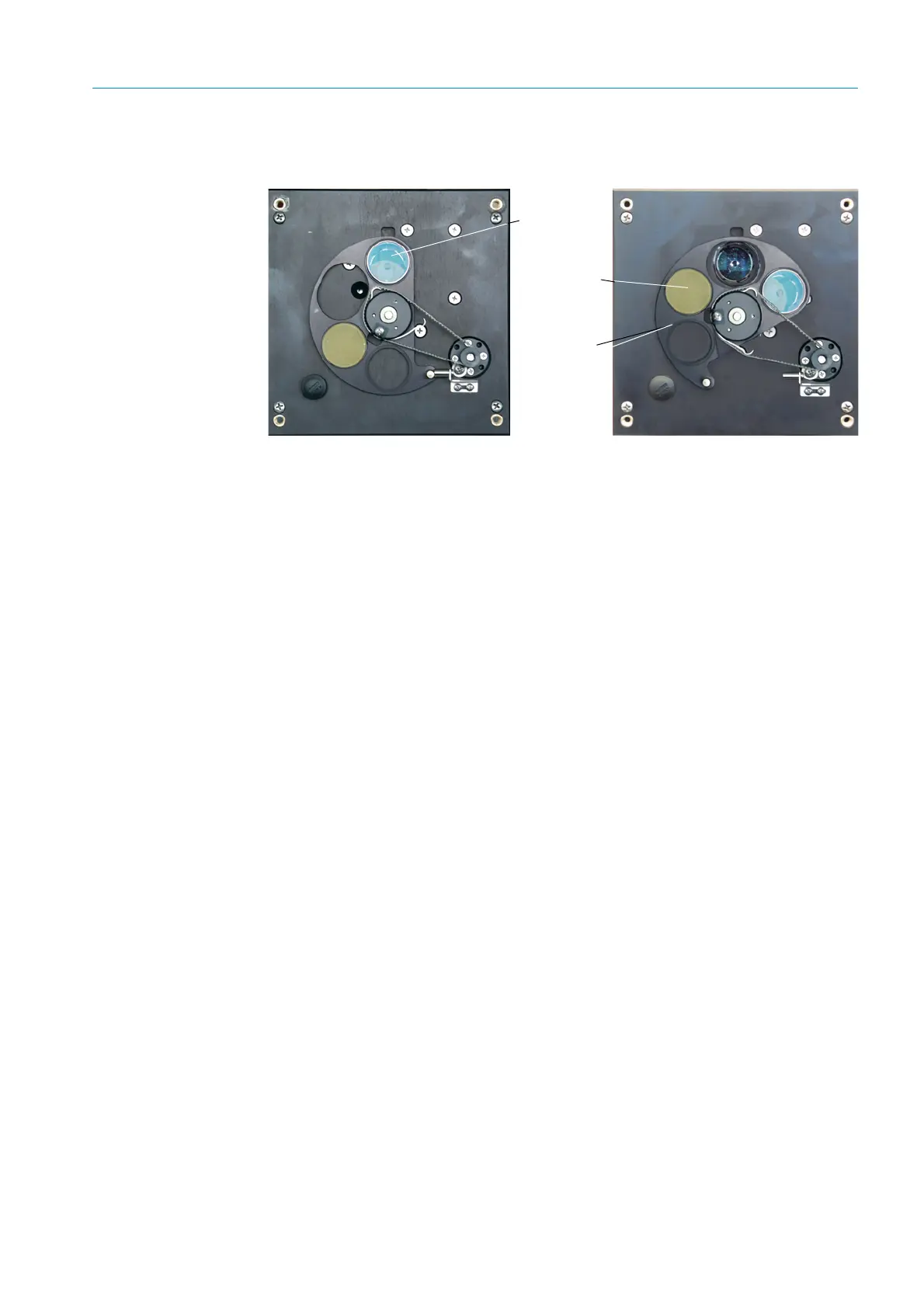

Fig. 5: Pivoted shutter settings on the sender/receiver unit
Measuring position

Contamination measurement



Glass pane

Control reflector (only on the sender side)

Pivoted shutter
