2 PRODUCT DESCRIPTION
2.2.2 Reflector
The reflector reflects the sender light beam back to the receiver in the sender/receiver
unit. Various versions are available for differing demands (internal duct diameter, contami-
nation measurement) and are also identified with a type code.

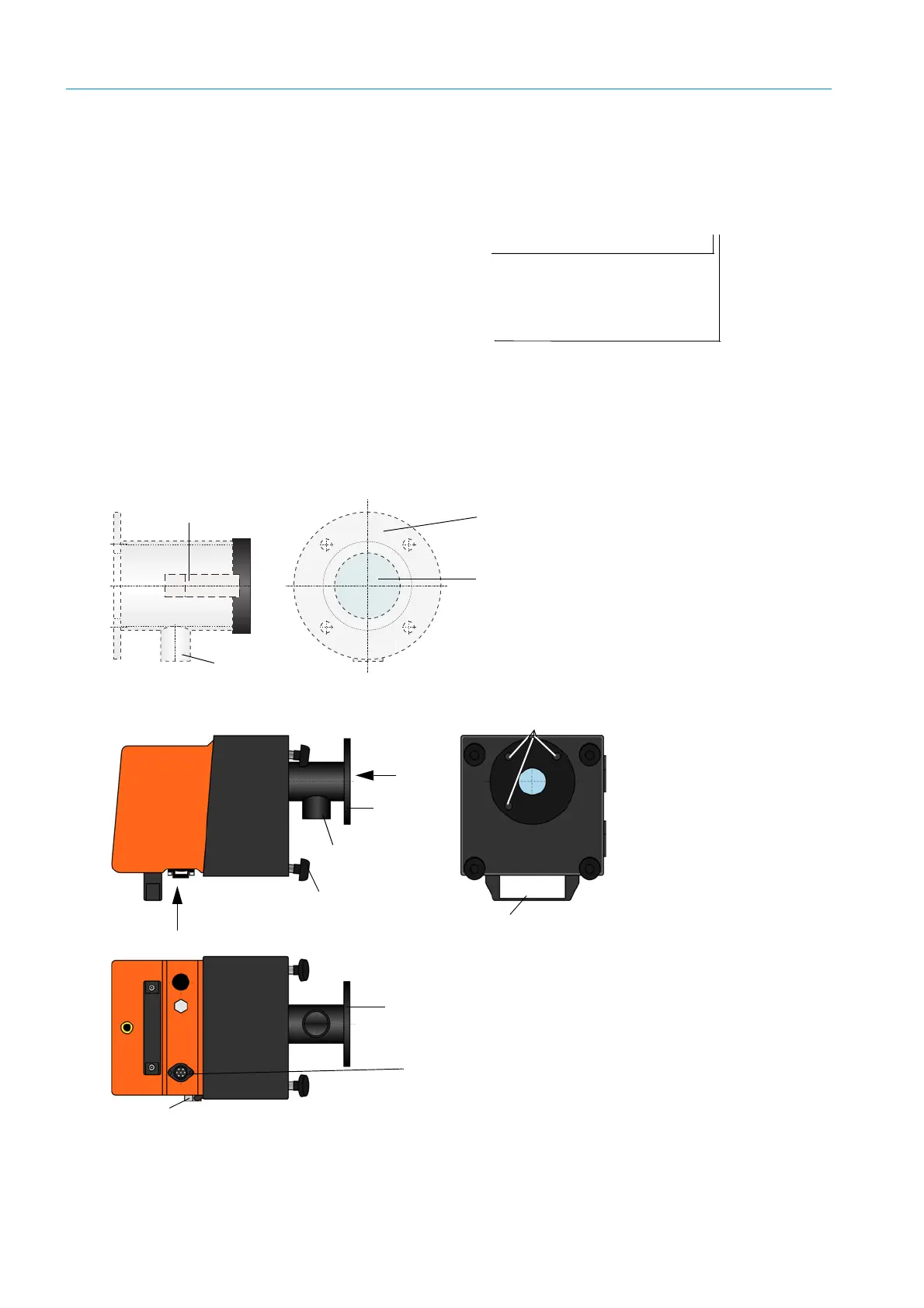

Fig. 9: Reflector
Reflector DHT-RXX
Version:
- 5: for DUSTHUNTER T50
- 0: Without contamination measurement
- 1: With contamination measurement
Measuring path:
- 0: Short (0.5 ... 2.5 m)
- 1: Medium (2 ... 5 m)
- 2: Long (4 ... 8/12 m)
- 3: Very long (10 ... 50 m)
A
A
B
B




Reflector for DUSTHUNTER T50
Reflector for DUSTHUNTER T100/T200









CAMLOCK clip

Flange

Reflector

Purge air connection

Mounting holes

Handle

Flange

Connection for connection cable to sender/receiver
unit (only DUSTHUNTER T200)

Hinge

Knurled screw

Purge air connection

Flange
