7 SPECIFICATIONS

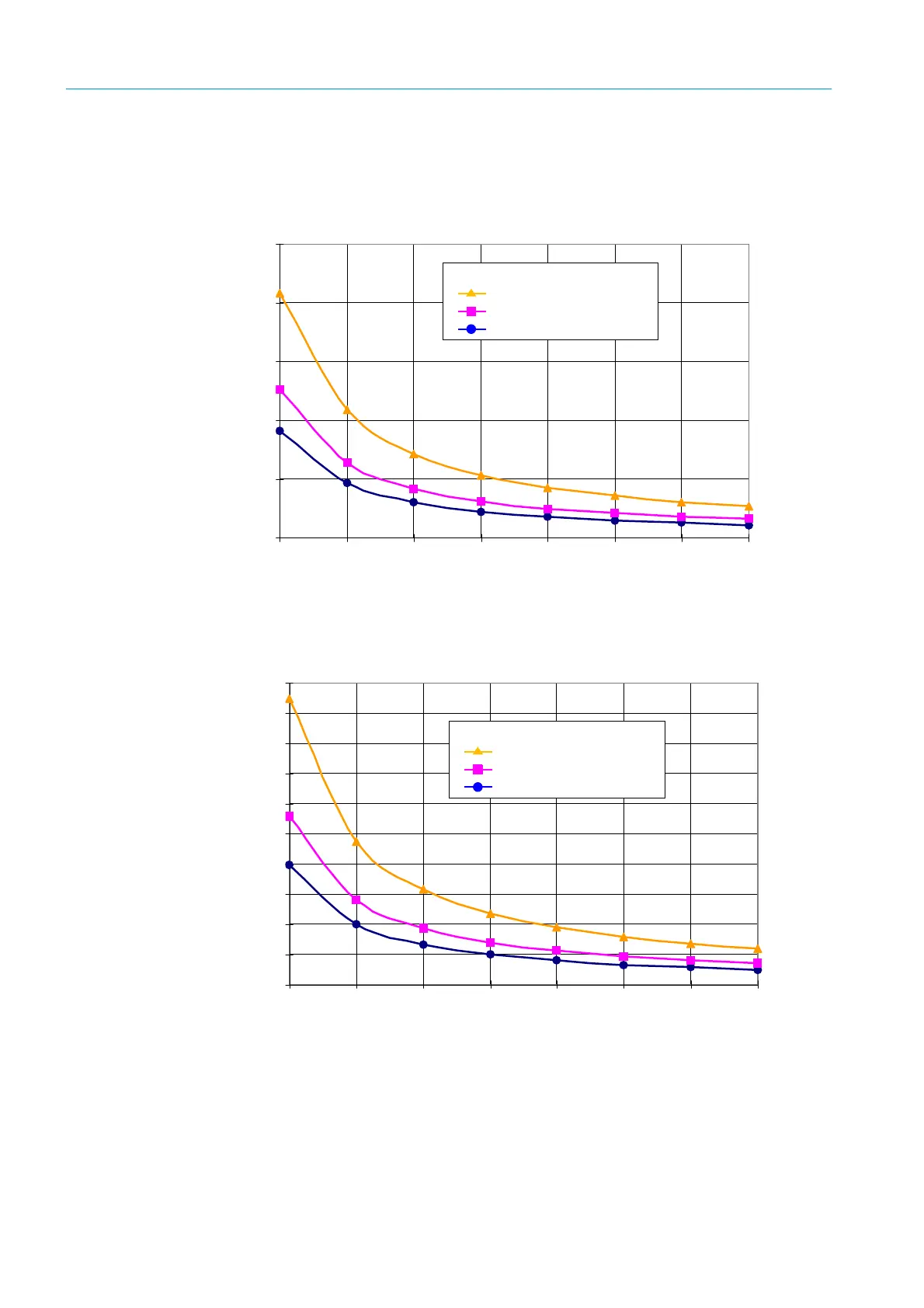

Fig. 78: Measuring ranges for dust concentration measurement based on extinction
0
1000
2000
3000
4000
5000
6000
7000
8000
9000
10000
12345678
0
50
100
150
200
250
12345678
Average particle size
10 μm (after swirl filter)
5 μm (after electric filter)
3 μm (after cloth filter)
Dust concentration in mg/m³
Active measuring path in m
Largest measuring range
Dust concentration in mg/m³
Active measuring path in m
Smallest measuring range
Average particle size
10 μm (after swirl filter)
5 μm (after electric filter)
3 μm (after cloth filter)
