≈ 650 μs
< 300 μs
< 300 μs
O
SSD2
OSSD1

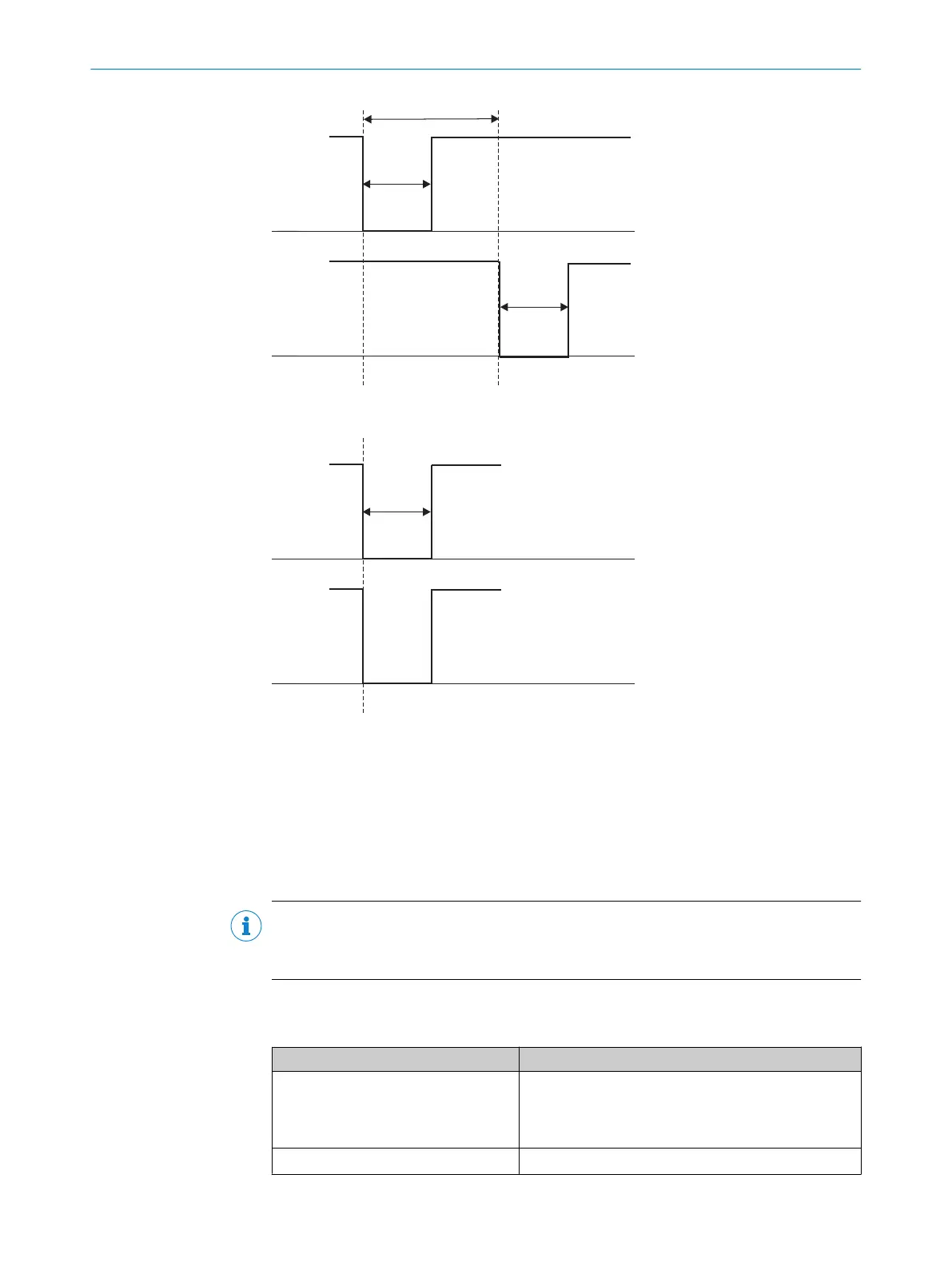

Figure 76: Shut-down test
< 300 μs
OSSD2
OSSD1
Figure 77: Voltage test
12.5 EFI status information and control commands
Overview
If de
vices are connected together via EFI, EFI status information and control commands
are exchanged. The following two tables show the status information that can be
retrieved and the possible control commands for the device.
NOTE
•
T
he information in square brackets reflects the names used in the CDS and in the
Flexi Soft Designer.
Status information
Table 31: Status information of the S300 Mini (data from the S300 Mini)
Status information Meaning/effect
Warning field bit [WF]
•
L
ogical 1, if both warning fields of the S300 Mini
are clear
•
Logical 0, if one of the warning fields of the S300
Mini is interrupted
Protective field [PF]
•
L
ogical 1 if the protective field is clear
12 TECHNICAL DATA
118
O P E R A T I N G I N S T R U C T I O N S | S300 Mini 8014170/ZA23/2019-11-14 | SICK
Subject to change without notice
