Further topics
"Char
acteristic curves", page 113
7.5.2 Basic response time
The basic response time of the safety laser scanner is 80 ms.
NOTE
Y
ou may need to add supplements to the basic response time due to multiple sampling
and data transmission over EFI.
Further topics
"R
esponse times", page 115
7.5.3 Maximum protective field range
The maximum protective field range of the safety laser scanner, which depends on the
conf
igured resolution and the variant used, is shown in the CDS.
NOTE
T
he maximum protective field range of the device must be sufficient to cover the calcu‐
lated protective field size including the necessary supplements.
Further topics
"Resolution", page 72
"Protective field size", page 39
7.6 Inputs
Although the S300 Mini Remote does not have any local inputs, if it is operated on a
F
lexi Soft safety controller or on another safety laser scanner, the inputs using which
the S300 Mini Remote receives the input conditions via EFI still need to be configured.

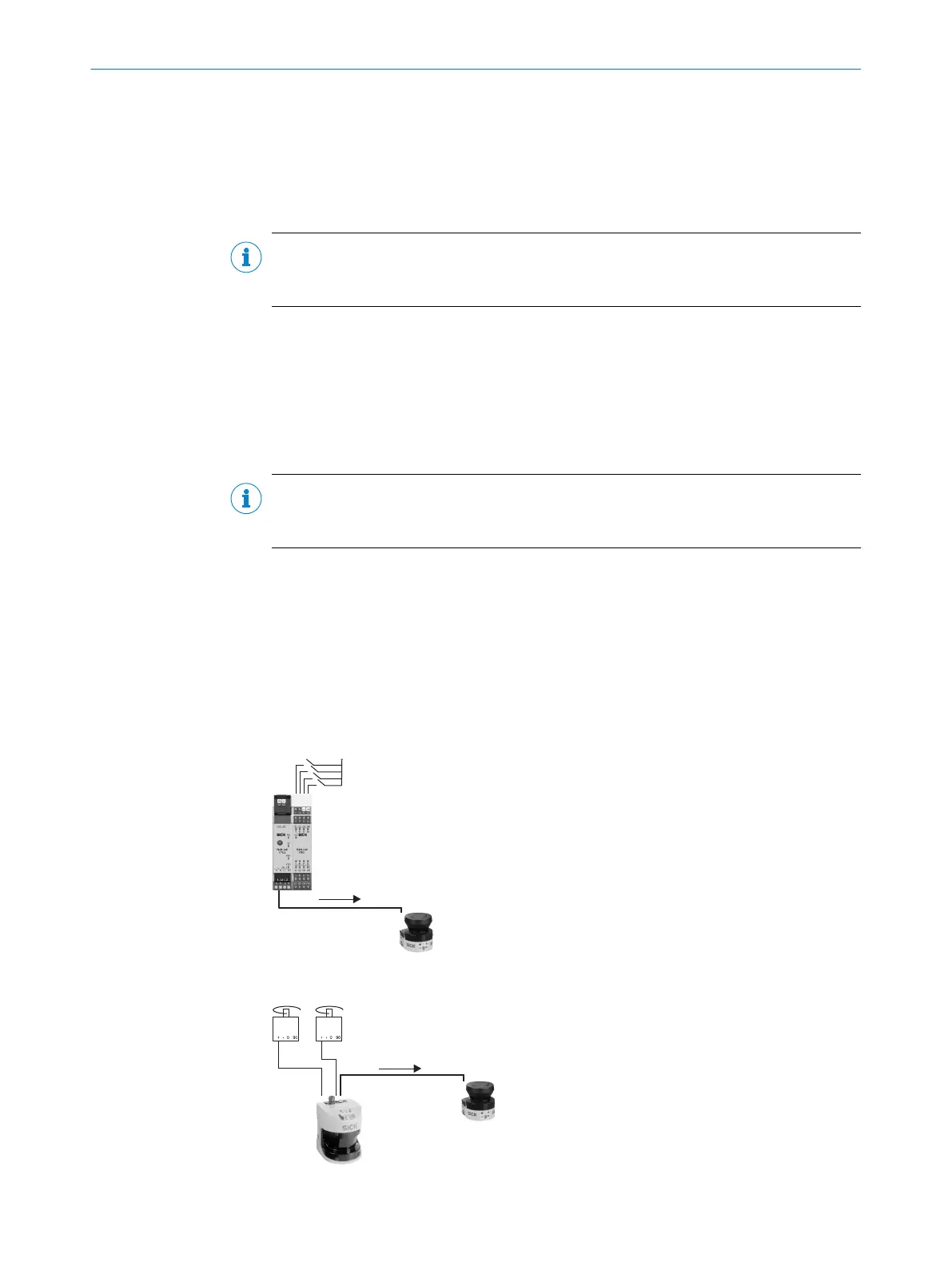

Figure 55: Input condition via EFI: Static information from inputs of a Flexi Soft
Figure 56: Input condition via EFI: Speed information from encoders on an S3000
CONFIGURATION 7
8014170/ZA23/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S300 Mini
73
Subject to change without notice
