You can operate the device in stationary horizontal operation using a 30, 40, 50 or
70 mm
resolution. The resolution determines the maximum protective field range of the
device.
Important information
WARNING
P
ersons or parts of the body to be protected may not be recognized or not recognized in
time in case of non-observance.
With a 70 mm resolution and low mounting height, it may not be possible to detect a
human leg.
b
For horizontal stationary applications with a 70 mm resolution, mount the scan
plane at a height of at least 300 mm above the floor in accordance with
ISO 13855 (see "Height of the scan plane at 70 mm resolution", page 42).
NOTE
T
he S300 Mini Remote allows you to define several monitoring cases with different pro‐
tective fields. In this case you must calculate the protective field sizes for all protective
fields used.
Minimum distance S
S
K × (
T
M
+ T
S
) Z
G
+ Z
R
+ C

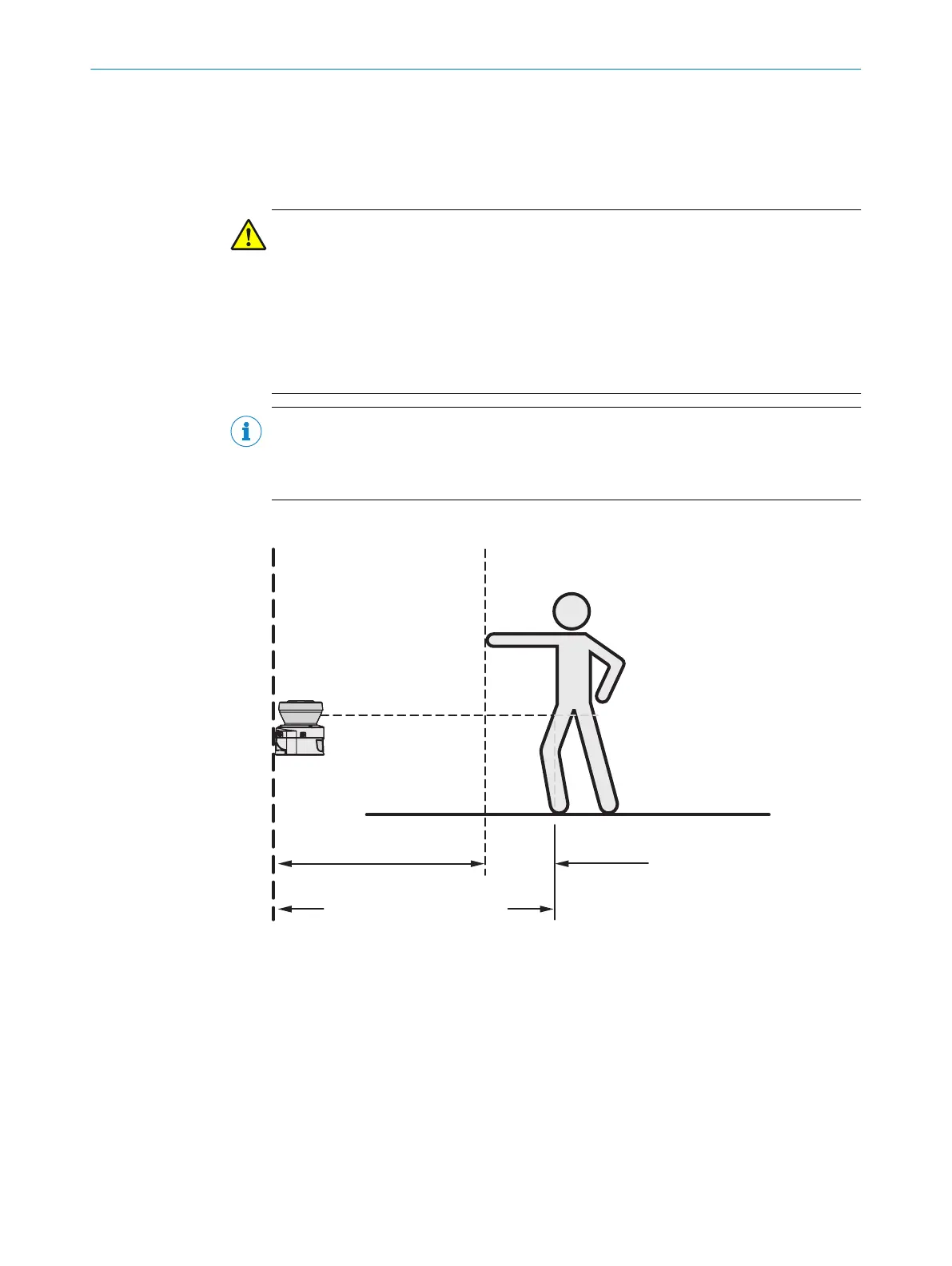

Figure 31: Minimum distance S
T
he minimum distance S depends on the:
•
Approach speed of the body or parts of the body
•
Stopping time of the machine or system
The machine stopping/run-down time can be obtained from the machine docu‐
mentation or must be determined by measurement.
•
Response time of the safety laser scanner
•
Supplements for general and, possibly, reflection-related measurement errors
•
Supplement to prevent reaching over
•
Height of the scan plane
•
Switching time between monitoring cases, if applicable
4 P
ROJECT PLANNING
40
O P E R A T I N G I N S T R U C T I O N S | S300 Mini 8014170/ZA23/2019-11-14 | SICK
Subject to change without notice
