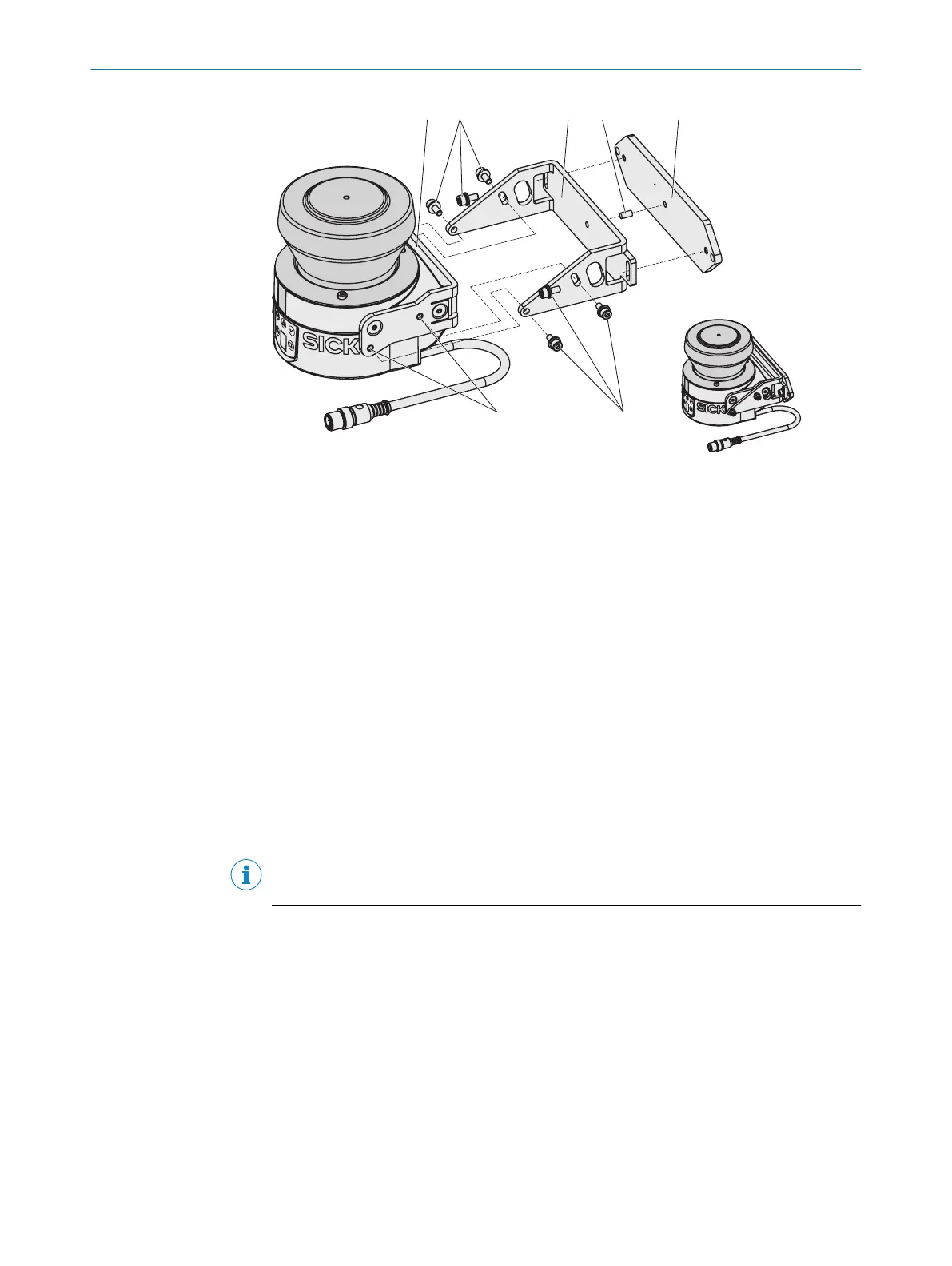

Figure 50: Mounting using mounting kit 2
1
Mounting kit 1a
2
Fixing screws
3
Mounting kit 2
4
Centring pin
5
Mounting kit 3
6
Threaded holes M4
Approach
1.
Mount kit 1a or 1b on the safety laser scanner.
2. Mount kit 3 on the mounting surface.
3. Insert the centering pin (4 mm) into the center hole of mounting kit 3.
4. Fit the mounting kit 2 onto mounting kit 3 and mount using two M4×10 fixing
screws.
5. Mount the safety laser scanner on mounting kit 2 using the threaded holes in
mounting kit 1a.
6. Adjust the safety laser scanner along the longitudinal and transversal axis then
tighten the six fixing screws on the mounting kits.
NOTE
W
hen mounting the device, observe the dimensional drawings.
Further topics
•
"Dimensional dr
awings", page 120
5 MOUN
TING
62
O P E R A T I N G I N S T R U C T I O N S | S300 Mini 8014170/ZA23/2019-11-14 | SICK
Subject to change without notice
