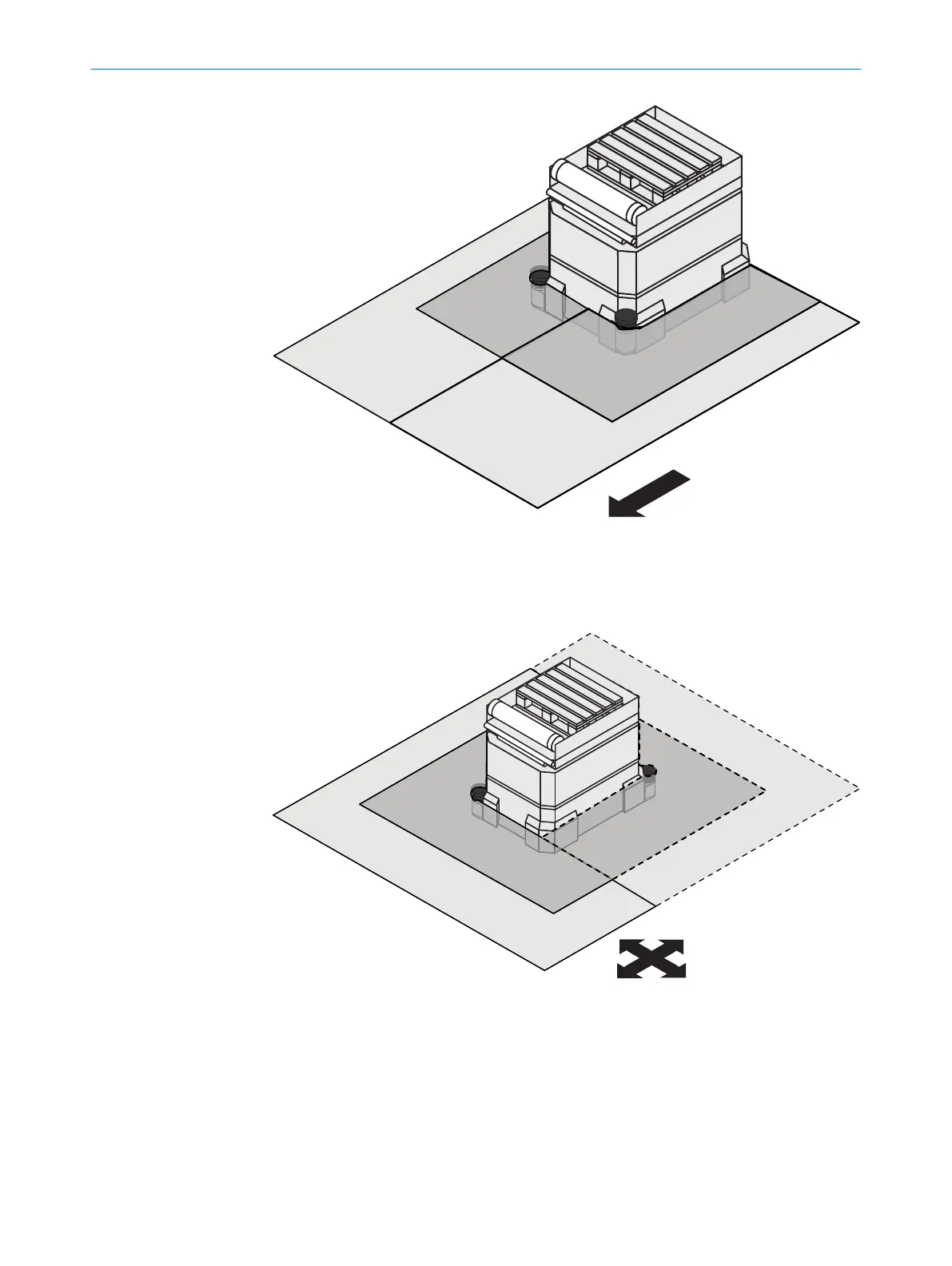

Figure 26: Mounting example for front and side protection in one direction of travel
If t
wo safety laser scanners are mounted at a 45° angle on the front corners of a vehi‐
cle, you can configure the protective field in such a way that no unsecured areas are
created and the hazardous areas on narrow tracks can also be protected.
Figure 27: Mounting example for all round protection in any direction of travel
Usin
g two safety laser scanners mounted diagonally opposite one another, it is possible
to implement protective fields on the vehicle that provide all round protection in any
direction of travel.
Further topics
•
"Dimensional dr
awings", page 120
PROJECT PLANNING 4
8014170/ZA23/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S300 Mini
35
Subject to change without notice
