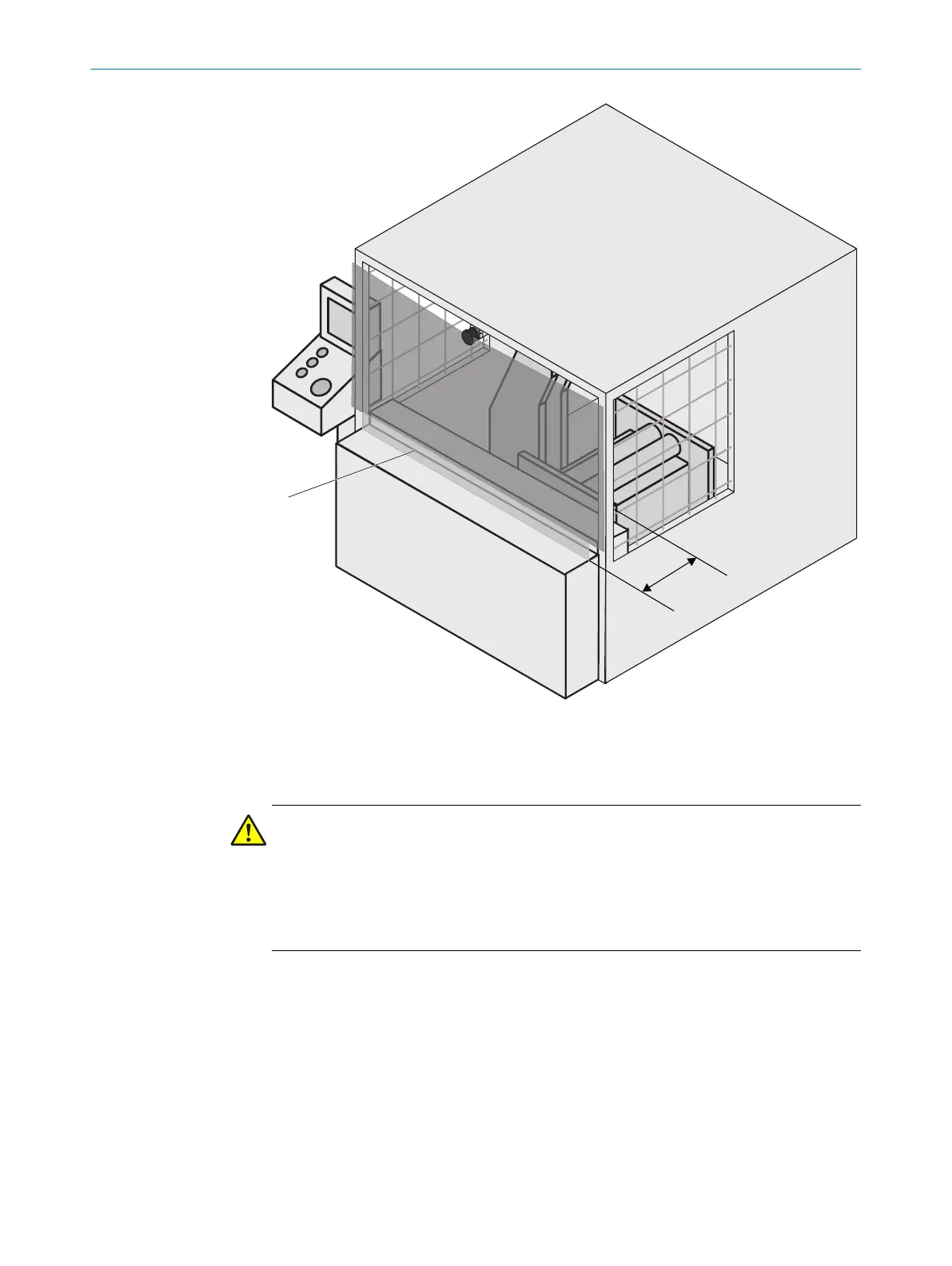

Figure 35: Minimum distance to hazardous area
1
Contours as reference
Important information
DANGER
D
anger due to reaching around or reaching behind
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
b
Mount the safety laser scanner so that it is impossible to reach around or behind.
b
Take suitable additional measures if necessary.
Minimum distance S
A
ccording to ISO 13855 and ISO 13857, the minimum distance S depends on the:
•
Stopping time of the machine or system. The machine stopping/run-down time
can be obtained from the machine documentation or must be determined by mea‐
surement.
•
Response time of the safety laser scanner
•
Reach or approach speed
•
Resolution of the safety laser scanner
Calculate the minimum distance S using the following formula (see ISO 13855):
•
S = 2,000 × (T
M
+ T
S
) + 8 × (d – 14) [mm]
4 PROJECT PLANNING
46
O P E R A T I N G I N S T R U C T I O N S | S300 Mini 8014170/ZA23/2019-11-14 | SICK
Subject to change without notice
