NOTE
T
he optics cover of the device is an optical component which must not be contami‐
nated or scratched during replacement.
The optics cover may only be replaced by qualified safety personnel in a clean,
dust- and dirt-free environment.
Never replace the optics cover during continuous operation, as this could destroy
the inner components and dust particles could get into the device.
Avoid contamination on the inside, for example due to fingerprints.
Do not use any additional sealant for sealing the optics cover, e.g., silicon, as the
vapors produced may damage the optics.
Mount the optics cover as per the following instructions to ensure that the housing
is sealed to IP65.
Prerequisites
Onl
y use a new optics cover.
When replacing the optics cover, take ESD protection measures.
Set a torque wrench to 1.2 Nm (hand-tight) and have this at hand.
Approach
To replace the optics cover:
1. Disconnect the round plug connector at the end of the connecting cable and
remove the safety laser scanner.
2. Move the safety laser scanner to a clean location (office, maintenance shops or
similar).
3. First clean the outside of the safety laser scanner. This prevents foreign bodies
entering the device when it is opened.
4.
Remove the fixing screws 1 to 3 of the optics cover.
1
2
3

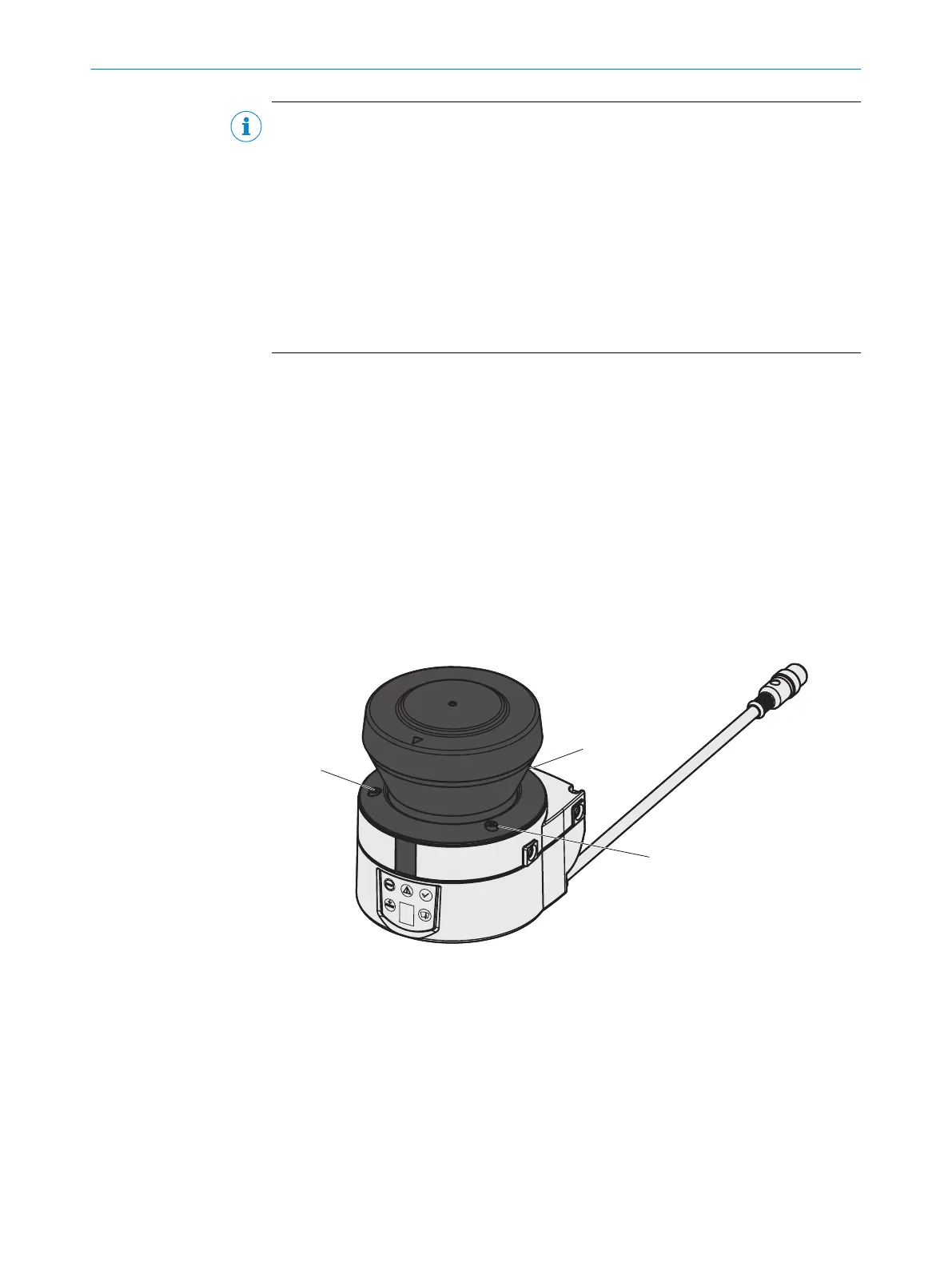

Figure 70: Remove the fixing screws of the optics cover
5. Remove the optics cover.
6.
Check whether the mirror on the motor is dirty and, if necessary, remove any cont‐
amination using an optic brush.
7. Take the new optics cover out of the packaging and remove the protective cap for
the seal.
8. If necessary, remove any remnants of packaging.
9.
Place the optics cover on the safety laser scanner and fit the new fixing screws 1
to 3.
10. When fitting the new optics cover, ensure the arrow on the top of the cover points
to the front and that the optics cover is fully in contact without a gap.
MAINTENANCE 9
8014170/ZA23/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S300 Mini
99
Subject to change without notice
