SICK S300 Mini User Manual

12.6 Dimensional drawings
Safety laser scanner
Ø 94
116
79,7
43,3
36,5
73
102
≤ 200
104
54,5
≥ 15
≥ 15
36,4
23,8
M5 x 7,5
5
10,5
49
±0,2
300
43,3

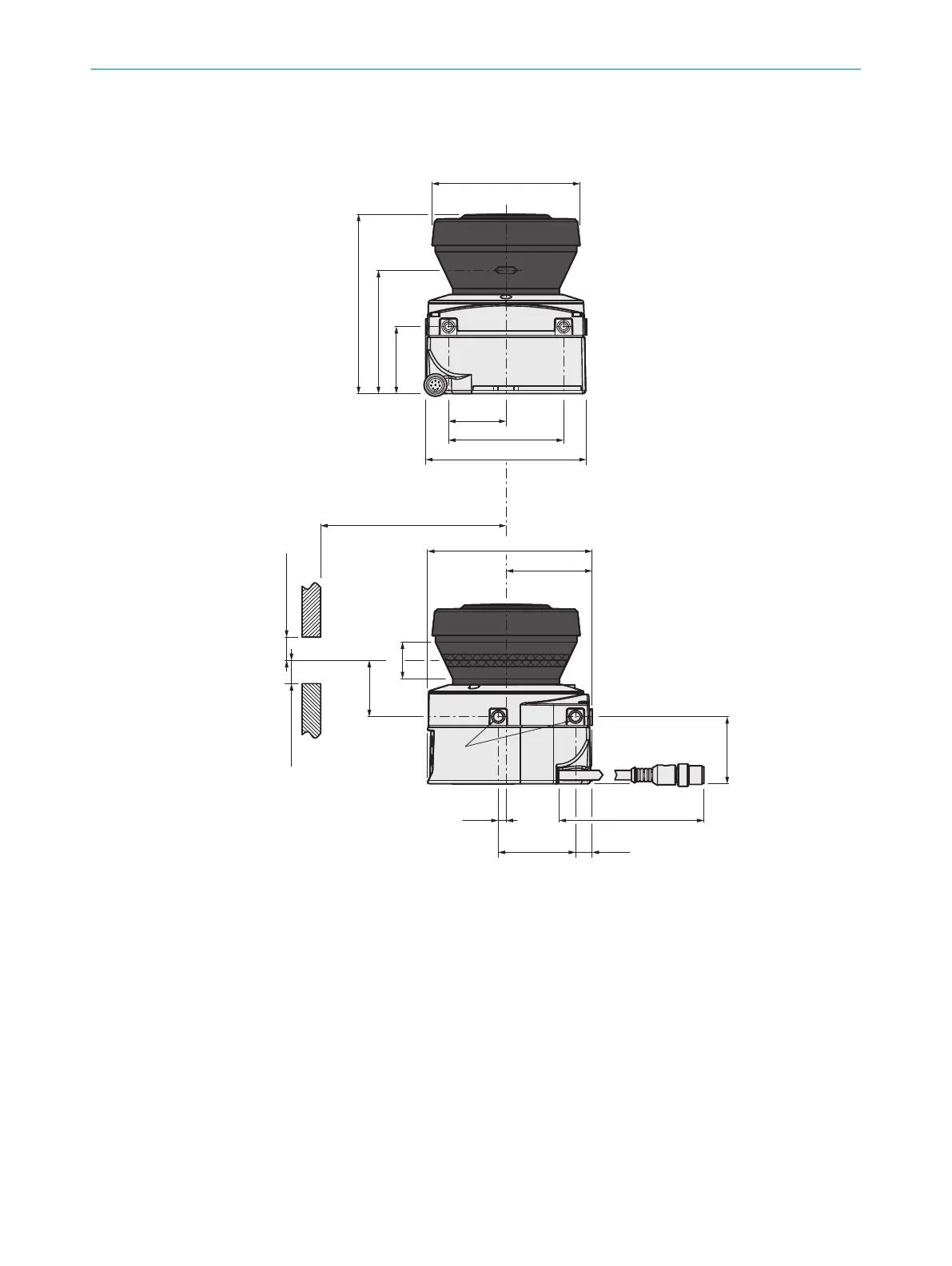

Figure 78: Dimensional drawing safety laser scanner (mm)
12 T
ECHNICAL DATA
120
O P E R A T I N G I N S T R U C T I O N S | S300 Mini 8014170/ZA23/2019-11-14 | SICK
Subject to change without notice
