SICK S300 Mini User Manual

Scan plane origin
≤ 200
≥ 15≥ 15
74,7
69,7
59,7
23,8
36,4
116
54,5
106
126
150
130
73
270°

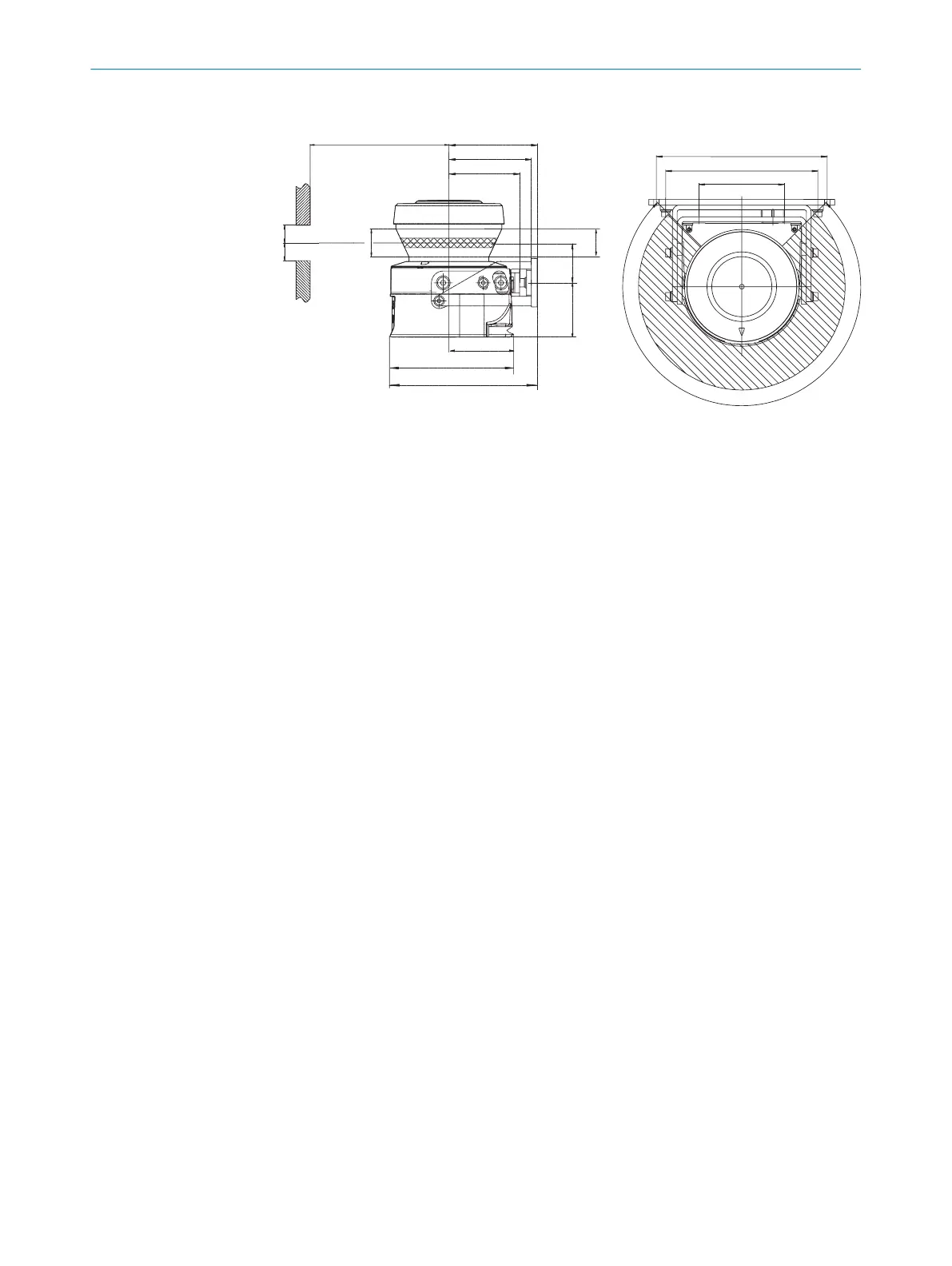

Figure 79: Dimensional drawing scan plane origin with mounting kit 1a, 2 and 3 (mm)
TECHNICAL DATA 12
8014170/ZA23/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S300 Mini
121
Subject to change without notice
