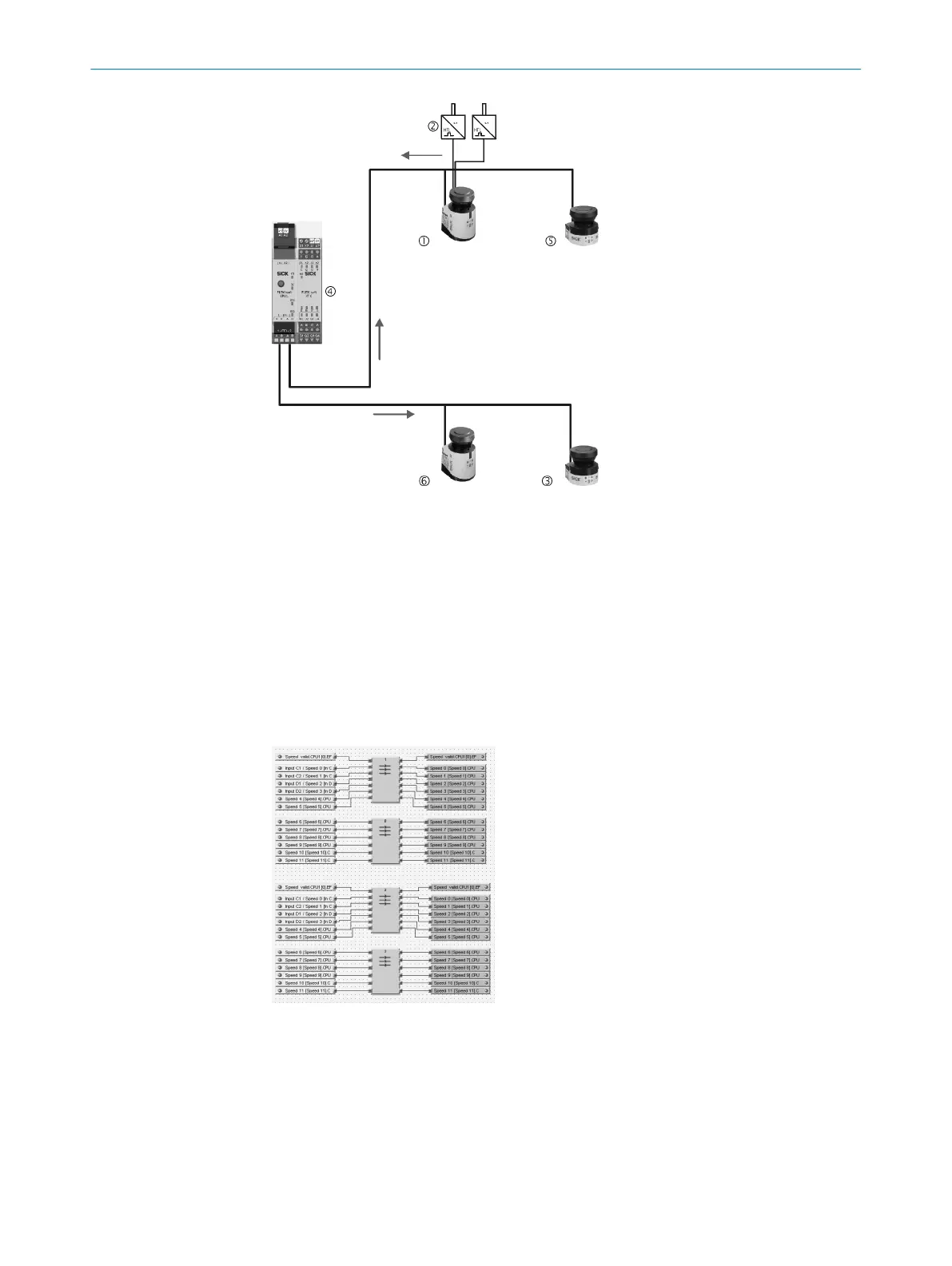

Figure 65: Connection diagram for speed routing
1
S300 Expert on EFI1.1
2
Incremental encoder
3
S300 Mini on EFI2.2
4
Flexi Soft
5
S300 Mini on EFI1.2
6
S300 on EFI2.1
Configuring speed routing in the Flexi Soft Designer
b
C
onfigure the speed routing in the Flexi Soft Designer, for example as shown in the
following figure.
Figure 66: Example for speed routing in the Flexi Soft Designer
•
L
eft: Input signals from the device with incremental encoders
°
12 + 1 bit pattern duplicated and placed on the n:n function blocks EFI1.1 1
•
Right: Output signals to all safety laser scanners
°
EFI string 1 (safety laser scanner on EFI1.1 1 and EFI1.2 5)
°
EFI string 2 (safety laser scanner on EFI2.1 6 and EFI2.2 3)
CONFIGURATION 7
8014170/ZA23/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S300 Mini
89
Subject to change without notice
