12.2 Characteristic curves
Scanning range for warning fields
1
2
5
1
0
20
50
100
200
500
0,1 0,2 0,5 1 2 5
10 20 50
1
2
3
4
5
6
R [%]
D [m]

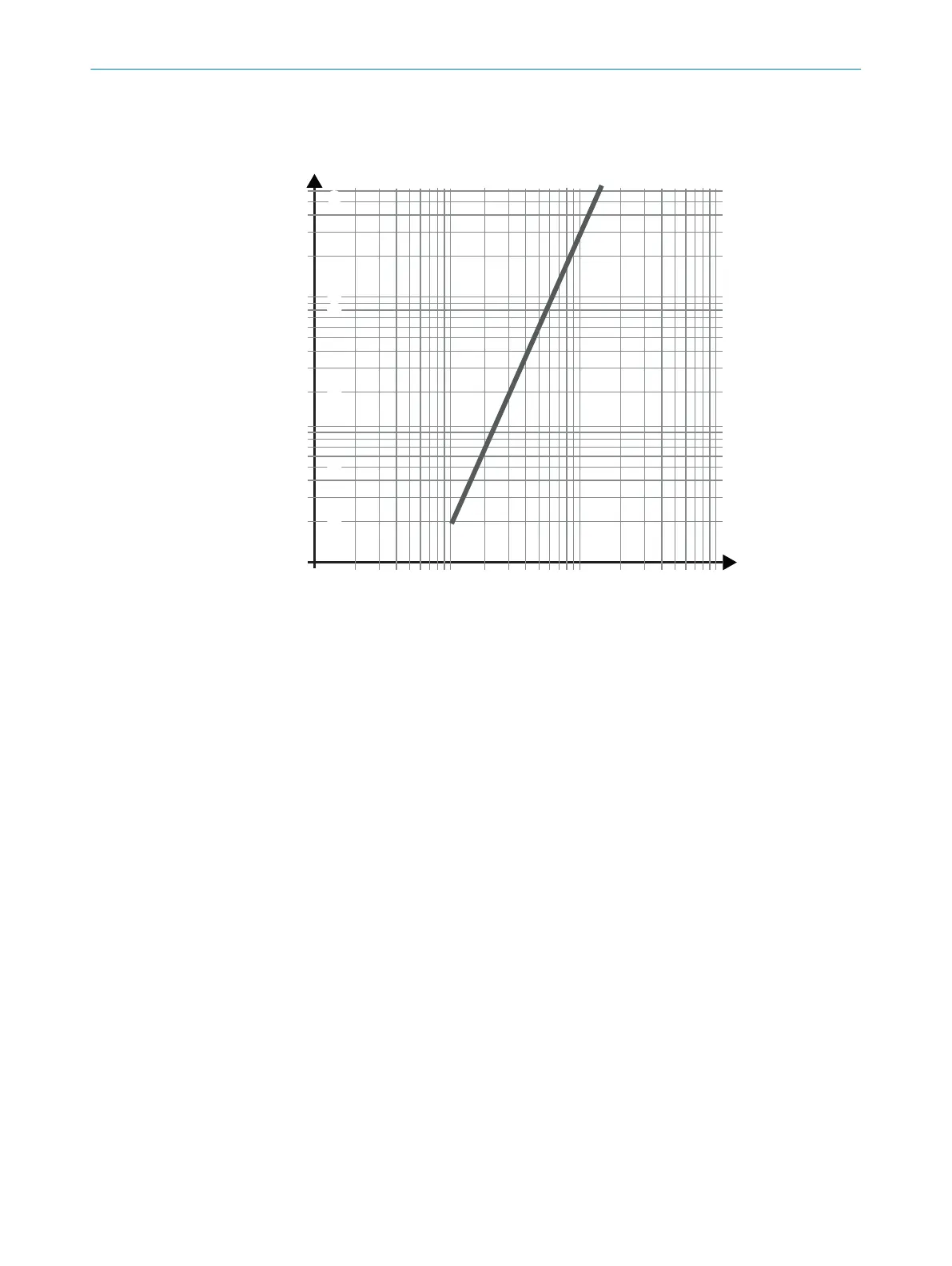

Figure 71: Diagram scanning range with Short Range
R Necessary minimum radiance factor in %
D Scanning range in m
1
Black shoe leather
2
Matt black paint
3
Gray cardboard
4
Writing paper
5
White plaster
6
Reflectors > 2,000%, reflective tapes > 300%
