User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80
Rev. 0 - 05/2021

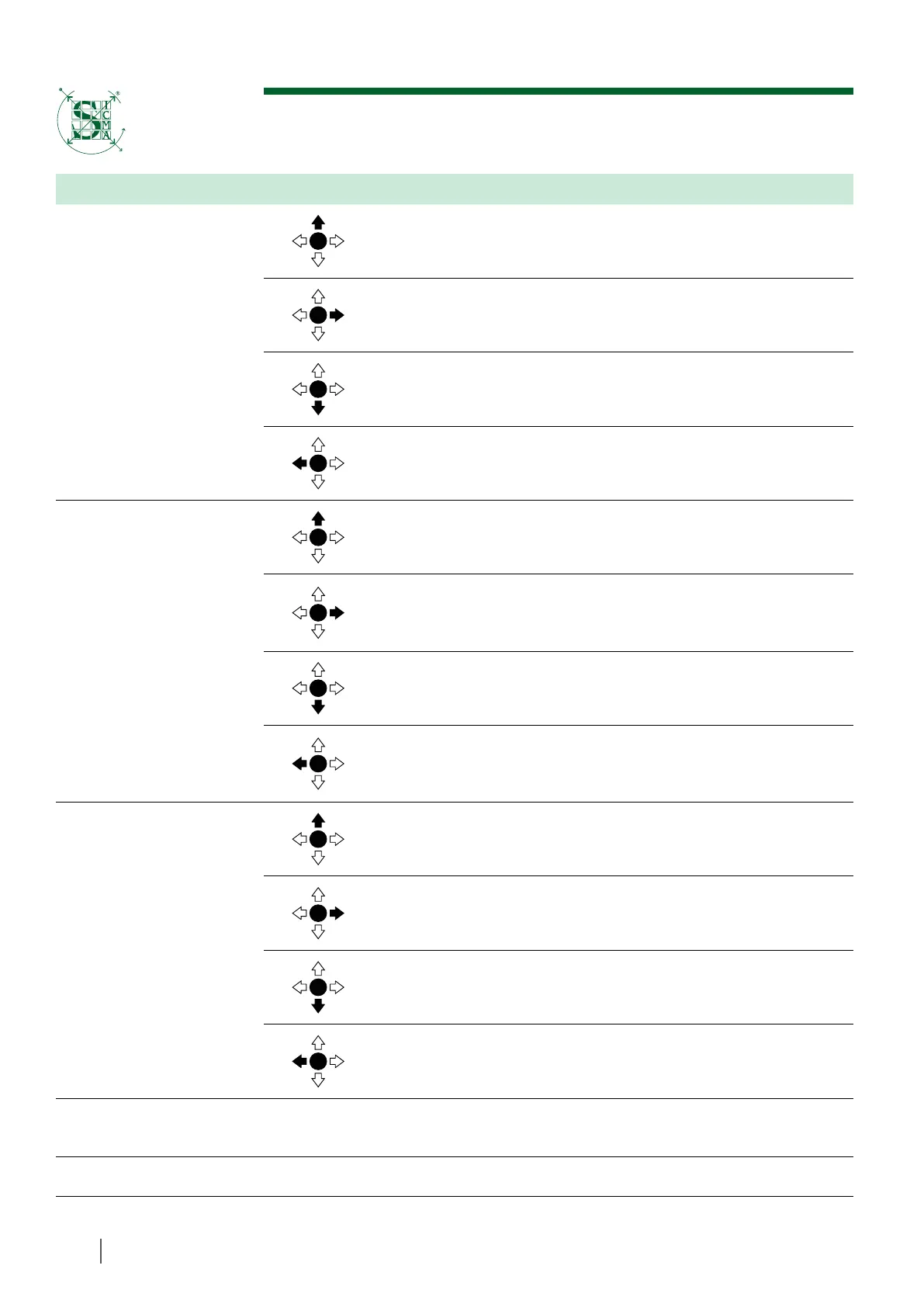

REF. DESCRIPTION POSITION FUNCTION
5 Manipulator
Acting on the manipulator in the indicated direction raises the
support arm.
Acting on the manipulator in the indicated direction, the support
arm rotates to the right.
Acting on the manipulator in the indicated direction lowers the
support arm.
Acting on the manipulator in the indicated direction, the support
arm rotates to the left.
6 Manipulator
Acting on the manipulator in the indicated direction, the telescop-
ic arm slides forward.
Transversal inclination of the vibrating head holding arms to
the right (the vibrating head rotates on the plane in a clockwise
direction).
Acting on the manipulator in the indicated direction, the telescop-
ic arm slides backwards and closes.
Transversal inclination of the vibrating head holding arms to the
left (the vibrating head rotates on the plane in an anticlockwise
direction).
7 Manipulator
Longitudinal upward tilt of the vibrating head holding arm (the
tip of the vibrating head rises).
Acting on the manipulator in the indicated direction, the vibrating
head rotates horizontally to the right.
Longitudinal downward tilt of the vibrating head holding arm (the
tip of the vibrating head is lowered).
Acting on the manipulator in the indicated direction, the vibrating
head rotates horizontally to the left.
8 Manipulator -
Not used (if the machine is not equipped with a reverse umbrel-
la).
9 Bright LEDs - They indicate the charge level of the remote control batteries.
86
