Sicma TR80 - Page 91

Machine use

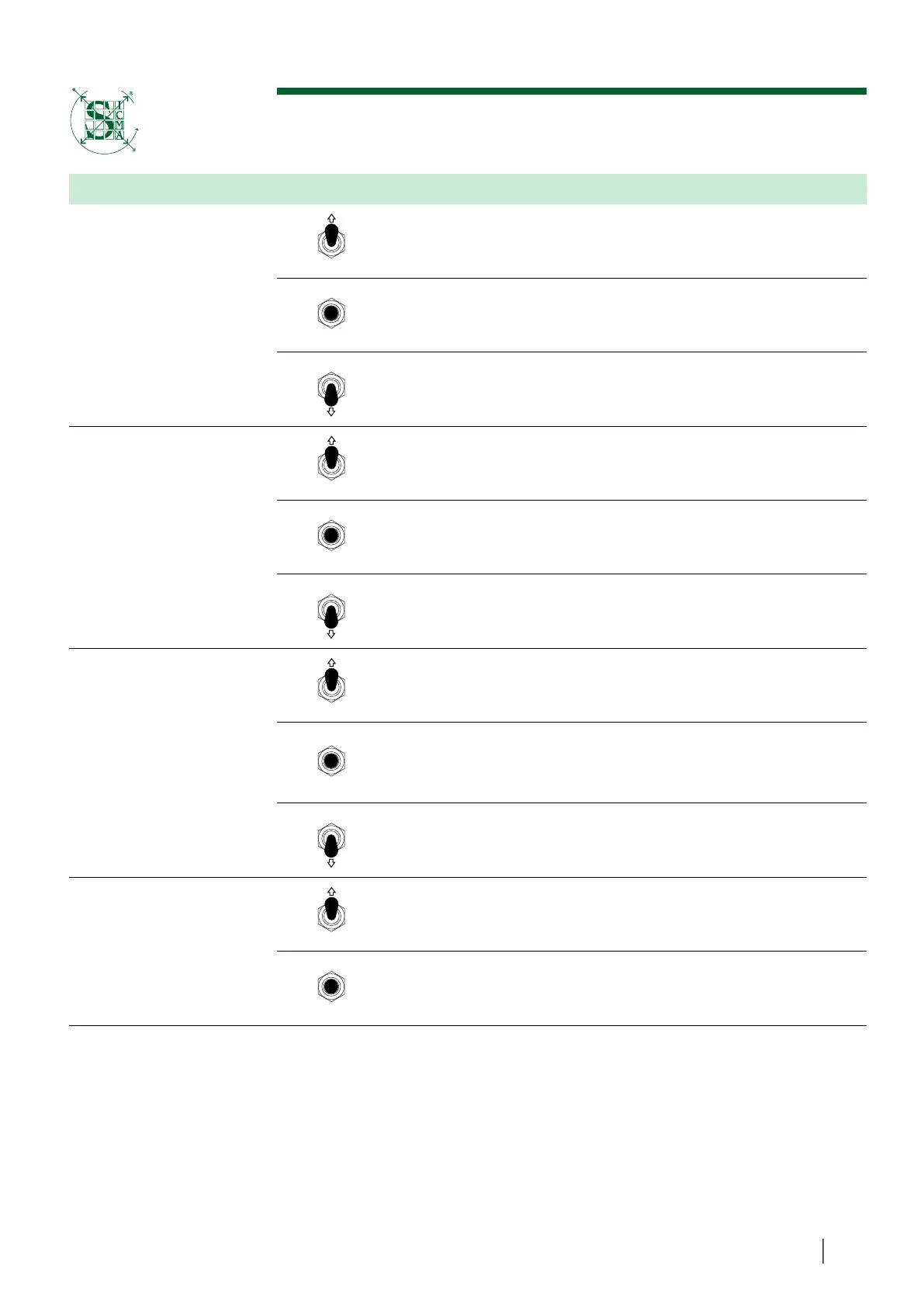

REF. DESCRIPTION POSITION FUNCTION
10
3-position switch
with return to neu-
tral position
Opening jaws of the vibrating head.
Neutral position.
Closing jaws of the vibrating head.
11*
3-position switch
with return to neu-
tral position
Increase in the revolutions per minute of the PTO.
Neutral position.
Reduction of the revolutions per minute of the PTO.
12
3-position switch
with return to neu-
tral position
Engagement of first vibration gear.
In the middle position, the vibration gear is neutral.
Speed "1 " or "2" must be set for vibration. Speed "1 " or "2" must
be set for vibration.
Engagement of second vibration gear.
13**
2-position switch
with return to neu-
tral position
Vibration drive of the head at the speed set by the switch (12).
Neutral position.
87
