Appendix
A.3 RS-232 Connection
FUS1010 IP65 NEMA 4X & IP66 NEMA 7
Operating Instructions, 01/2013, A5E02951520-AC
207
6. You will now see a blank terminal screen. Next left-click [File] on the top menu bar. Drag
the highlight down to [Properties] and then left-click.

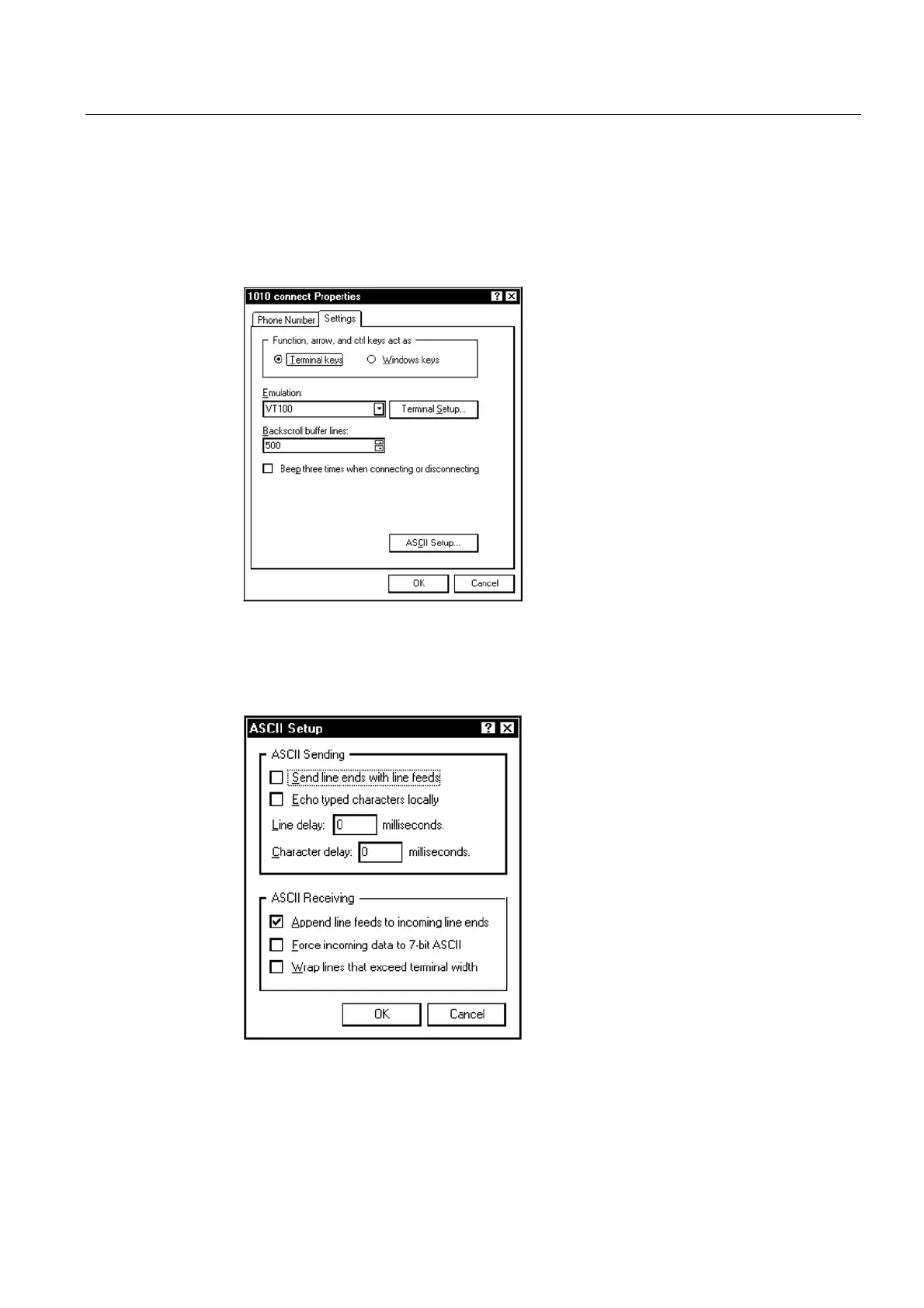

7. Left-click the [Settings] tab. Expand the [Emulation] box by left-clicking the <Down Arrow>
on the right-hand side. Drag the highlight down to [VT-100] and then left-click to select it
(as shown below).
8. Next, left-click on the [ASCII Setup] button (see screen above). In the [ASCII Sending]
dialog box, make sure that both [send line ends with line feeds] and [Echo Typed
characters locally] are UNCHECKED. In the [ASCII Receiving] dialog box, left-click to
place a check mark before the [Append line feeds to incoming line ends] dialog. When
your screen looks like the example below, left-click the [OK] button.
9. You are now ready to communicate with the 1010 flow meter. But first, save your settings
by moving the mouse cursor to [File], sliding the cursor to [Save], then clicking [OK] on
the Save dialog box.
10. The next time you want to use HyperTerminal:
