Appendix
A.3 RS-232 Connection
FUS1010 IP65 NEMA 4X & IP66 NEMA 7
Operating Instructions, 01/2013, A5E02951520-AC
209

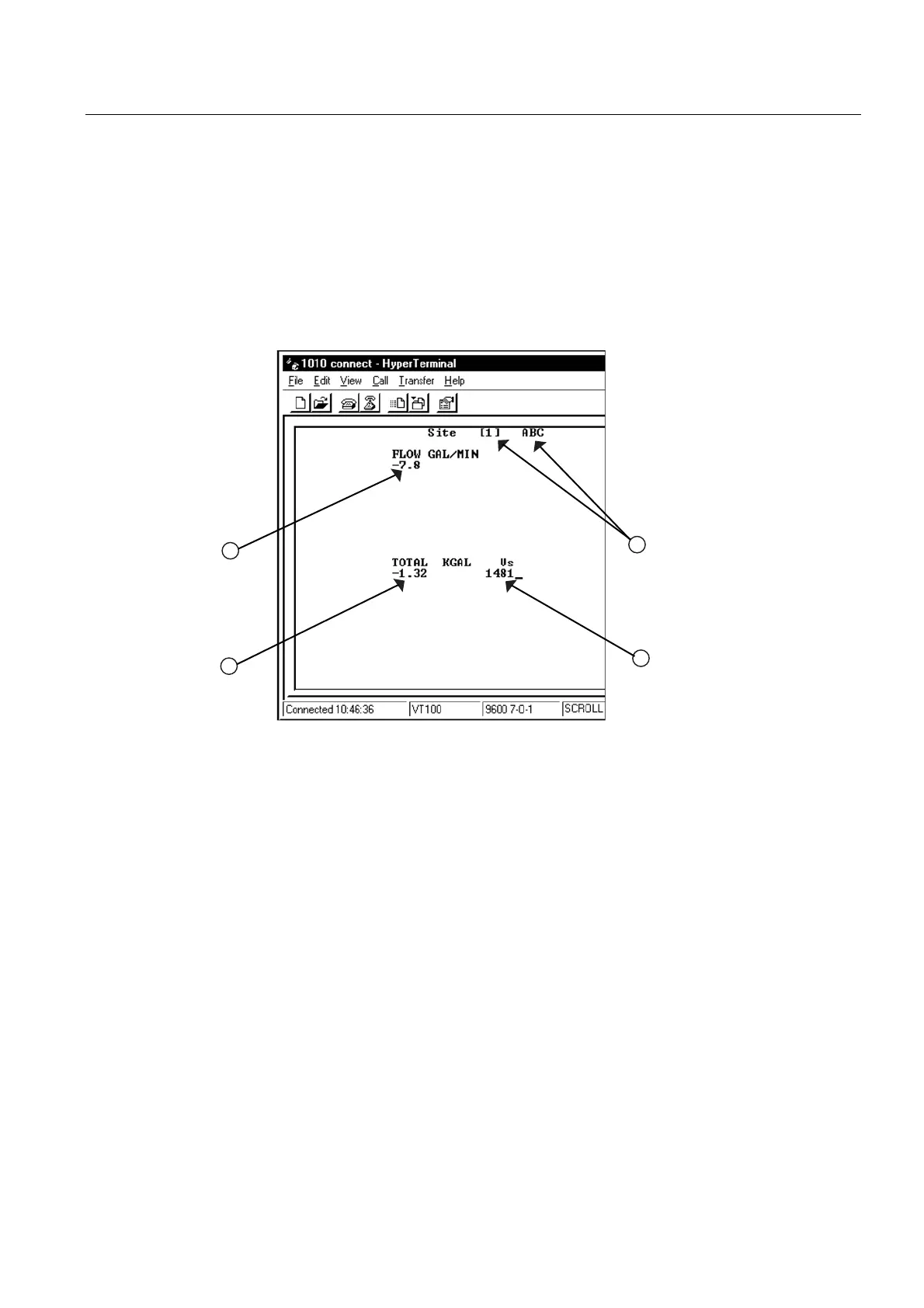

Data Display Mode
After you complete the installation, you can toggle between Installation Menu mode to Data
Display mode. This is the same as using the <MENU> key on the keypad (see manual). The
PC keyboard equivalent to the <MENU> key is <CTRL> + <L>. Note that the RS-232
interface does not support graphics. Therefore, when you use HyperTerminal to view the
data display screens, you will see the same data in alphanumeric form only (as shown
below). You can still use the <Up Arrow> and <Down Arrow> to switch between available
display screens.
6LHPHQV
① Current active site setup name. The [1]
indicates that the measurement channel is
active.
③ The flow Total display.
② The current measured liquid sonic velocity. ④ The current flow reading and flow units.
